25W Solar Garden LED Light

Name: 25W Solar Garden LED Light
Brand: yourledlight.com
SKU: 708090732
Availability: InStock
Rating: 4.3 (147 reviews)

Price:	US $ 100-110/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Qingdao Commercial Energy Electronics Co., Ltd.

Showroom Product Company Profile

Prod Model:	25w
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	25W Solar Garden LED Light
LED Chip:	Bridgelux, USA
LED Light Life Time:	50, 000hours
Solar Cell:	High Efficiency, Mono
Battery Time:	5 Years
Material:	Aluminium Alloy
Warranty:	3years
Work Mode:	Customized Available
Type:	Lithium-Ion LiFePO4
Light Source:	LED Lamp
Lamp Body Material:	Aluminum Alloy
Light Type:	Solar
Color Temperature:	Cool White
Power:	≥30W
Technics:	Painted Matte
Illumination Time:	12h
Cell Type:	Ni-MH Battery
Charging Time (',H):	12
Usage:	Road;Park;Center
IP Rating:	IP65
Certification:	RoHS
Voltage:	12/24V
With Light Source:	With Light Source

Product Description

25w solar garden led light

Features :
1,Easy installation. No cable needed
2,Lithum-ion LiFePO4
3,High efficiency Mono solar panel
4,Famous brand LED chip from EPISTAR and Bridgelux
5,Mounted convenient, pole, wall, tree etc
6,Light output can be adjusted automatically by a built-in infrared sensor
7,Modularity design. Easy assemble and maintenance
8,Compact volume and light weight design saves freight cost and installation cost
9,Rust-proof, dustproof and IP65 waterproof Safety and reliability

Specification:

Model		NSP08 (with sensor)	NSP12 (with sensor)	NSP15 (with sensor)
LED Light	Max power	12V 8W	12V 12W	12V 15W
	Led chip	EPISTAR, Taiwan
	Lumen (LM)	800-880Lm	1200-1320Lm	1500-1650Lm
	Life time	50,000hours
Solar panel	Max power	18V/15W	18V/18W	18V/25W
	Solar cell	High efficiency, Mono
	Life time	25years
Battery	Capacity	6AH	6AH	10AH
	Type	Lithum-ion LiFePO4
	Life time	5 years
Charging	By sun	6-10 hours effective sunlight
Lighting	Dimming power	>24 hours
Work temp	Range(ºC)	Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC
Colour temp	Range(k)	6000-6500k
Height	Range (m)	3-4m	3-4m	4-5m
Spacing	Range (m)	8-10m	8-10m	10-15m
Work mode	Customized available	Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human move in the sensors range. 30% power lighting when a human move out.
Material	Aluminium alloy
Certificate	CE / ROHS / IP65
Warranty	3years
Packing & Weight	Product size(mm)	50432585		746325135
	Product weight	6.5kg	6.5kg	8.2 kg
	Carton size(mm)	560390150	560390150	815390210
	GW .for carton	7kg	7kg	9.3 kg
Container Load	20GP	915sets	915sets	462sets
Container Load	40HQ	2193sets	2193sets	1118sets

Model		NSP20 (with sensor)		NSP25 (with sensor)		NSP30 (with sensor)		NSP40 (with sensor)
LED Light	Max power	12V 20W		12V 25W		12V 30W		12V 40W
	Led chip	Bridgelux , USA
	Lumen (LM)	2400-2600Lm		3000-3250Lm		3600-3900Lm		4800-5200Lm
	Life time	50,000hours
Solar panel	Max power	18V/45W		18V/50W		18V/60W		18V/60W
	Solar cell	High efficiency, Mono
	Life time	25years
Battery	Capacity	18AH		21AH		21AH		24AH
	Type	Lithum-ion LiFePO4
	Life time	5 years
Charging	By sun	6-10 hours effective sunlight
Lighting	Dimming power	>20hours
Work temp	Range(ºC)	Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC
Colour temp	Range(k)	6000-6500k
Height	Range (m)	5-6m	5-6m		6-7m		6-7m
Spacing	Range (m)	18-20m	18-20m		20-25m		20-25m
Work mode	Customized available	Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human move in the sensors range. 30% power lighting when a human move out.
Material	Aluminium alloy
Certificate	CE / ROHS / IP65
Warranty	3years
Packing& Weight	Product size(mm)	1130330130
	Product weight	17.8kg		18.3kg		18.7kg		19kg
	Carton size(mm)	1190390220
	GW .for carton	18kg		19kg		19kg		20kg
Container load	20GP	230sets		230sets		230sets		230sets
	40HQ	600sets		600sets		600sets		600sets

Model		NSP50 (no sensor)	NSP60 (no sensor)
LED Light	Max power	12V 50W	12V 60W
	Led chip	Bridgelux , USA
	Lumen (LM)	6000Lm	7200Lm
	Life time	50,000hours
Solar panel	Max power	18V/80W	18V/90W
	Solar cell	High efficiency, Mono
	Life time	25years
Battery	Capacity	39AH	42AH
	Type	Lithum-ion LiFePO4
	Life time	5 years
Charging	By sun	6-10 hours effective sunlight
Lighting	discharge	>12hours	>12hours
Work temp	Range(ºC)	Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC
Colour temp	Range(k)	6000-6500k
Height	Range (m)	8-9m	8-9m
Spacing	Range (m)	25-30m	25-30m
Work mode	Customized available	Time control, Full power +dimming	Time control, Full power +dimming
Material	Aluminium alloy
Certificate	CE / ROHS / IP65
Warranty	3years
Packing & Weight	Product size(mm)	1080450153	1080450153
	Product weight	24kg	26 kg
	Carton size(mm)	1190520220	1190520220
	GW .for carton	24.5kg	26.5kg
Packs Containers	20GP	231sets	231sets
Packs Containers	40HQ	516sets	516sets

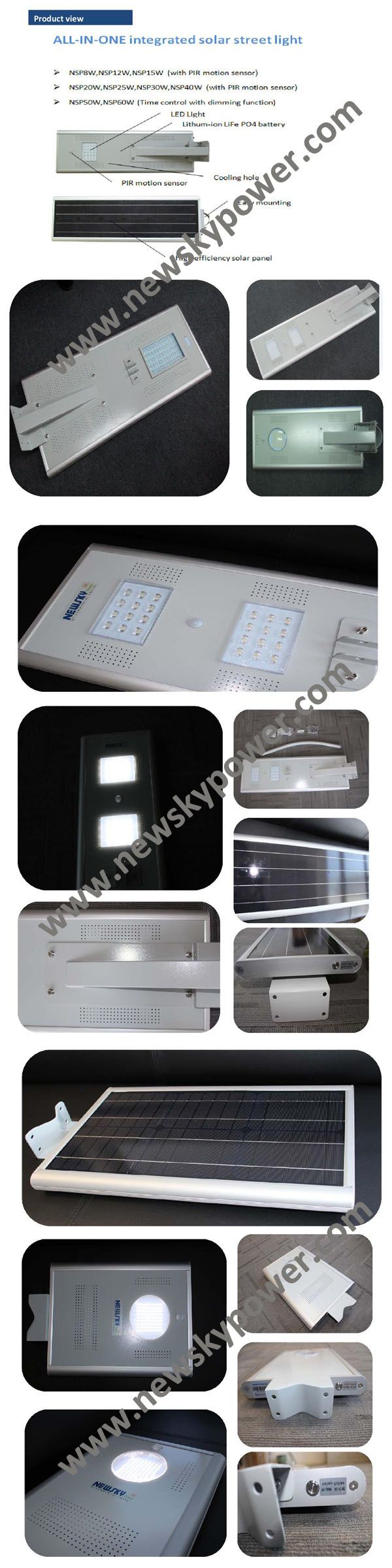

Detail pictures show:

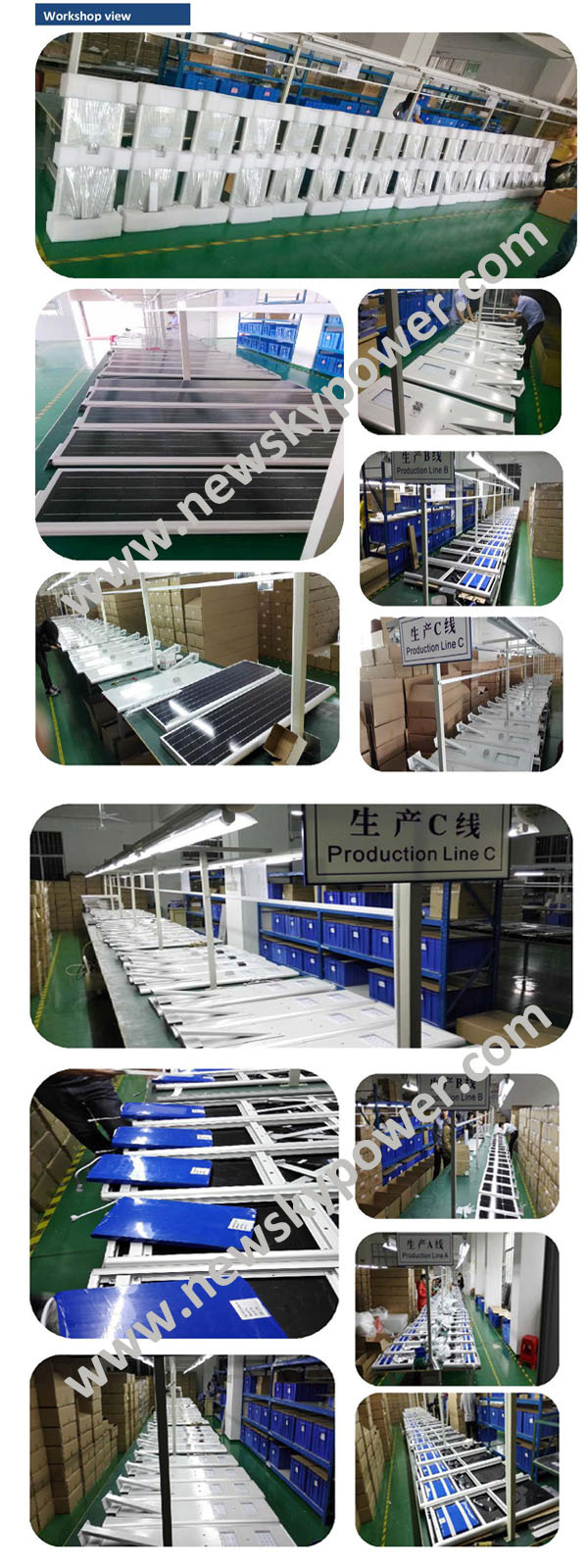

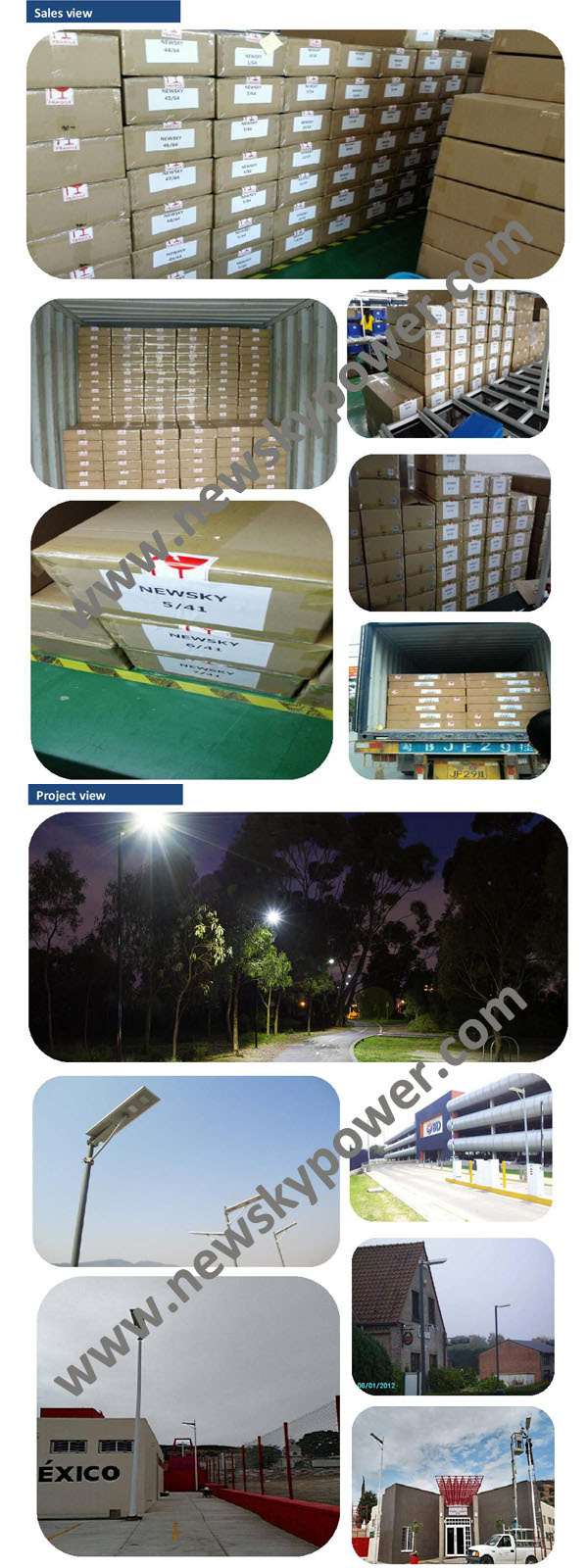

Workshop Show: Applications in our daily life:

FAQ:

1,Could you provide pole?
Normally, we don't supply pole.
Most of our clients purchase pole from local, it will be cheaper if without shipping cost.
The top diameter of pole as below:
NSP8W,NSP12W,NSP15W: diameter 40-100mm
NSP20W,NSP25W,NSP30W,NSP40W,NSP50W,NSP60W: diameter 80-110mm

2,Does it work on foreland?
Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment. The waterproof is IP65.

3,How long it can work in ?
it can work continuously in 3-4 rainy days.

4,Could the angle of the light be changed?
The angle between light and pole is fixed, can not be changed, it is optimized angle.
NSP8W-NSP15W: 95°
NSP20W-NSP60W: 105°

5, What is the distance between light and human?
The detection distance between LED light and human is 10-12 meters.
