250W LED High Bay Light with Bridgelux LED (110-120Lumens/w)
Price: |
US $ 343.00/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Prod Model: |
AMB-3L-250W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Flux: |
23000lumen |
Input Volatage: |
AC85-305V 50/60Hz |
LED Source: |
Bridgelux LED Chip |
Driver: |
Taiwan Meanwell Driver |
Power Factor: |
>0.98 |
Warranty Time: |
5 Years Warranty Time |
Life: |
>50, 000 Hours |
Power Source: |
AC85-305V |
Electric Current Type: |
AC |
Emitting Color: |
White |
Certification: |
CE, FCC, SAA, ETL and UL Certs |
Lamp Body Material: |
Aluminum |
Color Temperature: |
Cool White |
IP Rating: |
IP54 |
Product Description
Product Description

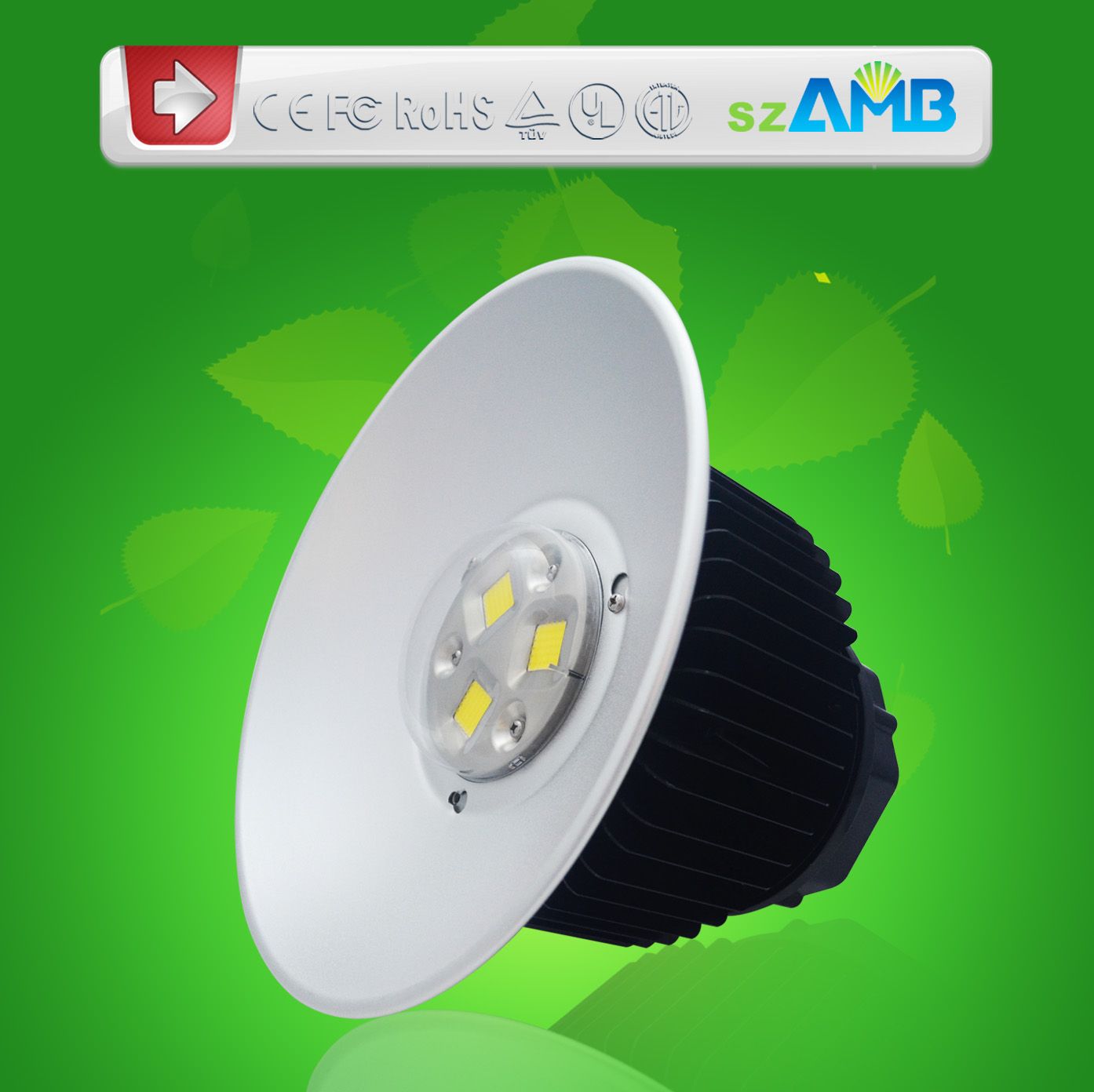

250w LED High Bay Light
Item No.: AMB-3L-250W
Energy usage: 250 W
Spread: 60/130/150degrees
Chip supplier: Bridgelux(110-120lm/w)
Driver: Meanwell driver
Color temperature: 2800K-7000K
Imput votage: 90-305VAC
CRI value: Ra>75
LED high bay Light Features:
1. Aluminium/PC Reflector Beam Angle 60/130/150 degree available.
2. Material: Lamp sheel adopts excellent aluminum, anodizing and anticorrosion treatment, fancy performance, compact and beautiful structure.
3. LED Chip: Use high brightness single semiconductor chip Bridgelux 45mil as light source. (110-120lumens/w)
4. LED Driver: Built-in-cross-flow Meanwell power supply, to ensure the lamp's stability.
5. Huge Aluminum radiator: Cool down the temperature much more quickly.
6. Lifespan: If works 12 hours per day, it can be used 8-10 years, very low maintenance costs.
7. Green: Free-pollution, no lead, mercury and other pollution elements, no pollution to the enviroments, no RF interference.
9. Convenient to install, High universality, widely application ranges.
10. Warranty: 5years for lamp fixture with Meanwell driver
LED high bay Light Application:
LED industrial light for industrial lighting widely used in factory, workshop, warehouse, supermarket, exhibition, stadium hall, parking, gas station, gymnasium etc where need indoor lighting.
No. |
1 |
2 |
3 |
4 |
5 |
Model No. |
AMB-3L-50w |
AMB-3L-80w |
AMB-3L-100w |
AMB-3L-120w |
AMB-3L-150w |
Power Consumption
(W) |
50 |
80 |
100 |
120 |
150 |
LED Initial Flux
(LM) |
5200 |
8300 |
12000 |
12500 |
14600 |
Lamp Flux
(LM) |
4800 |
7500 |
10400 |
11900 |
13500 |
Beam Angle |
60° /120° /150° |
60° /120° /150° |
60° /120° /135° /150° |
60° /120° /135° /150° |
60° /120° /135° /150° |
Input Voltage
(VAC) |
90-305 |
90-305 |
90-305 |
90-305 |
90-305 |
Power Factor
(PF) |
> 0.97 |
> 0.97 |
> 0.97 |
> 0.97 |
> 0.97 |
Power Efficiency |
96% |
93% |
94.3% |
95.8% |
92% |
Color |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Color Rendering Index
(CRI) |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Working Enviornment |
Temperature:
-40-50degree
Humidity:
10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature:
-40-50degree
Humidity:
10%-90%
|
Material |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum
Copper
PC |
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
Working Life
(Hours) |
> 50000 |
> 50000 |
> 50000 |
> 50000 |
> 50000 |
Product Dimension
(mm) |
60° :
Φ 390× 280
120° :
Φ 415× 356
150° :
Φ 580× 280 |
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320 |
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320 |
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360 |
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360 |
Packing Dimension
(mm) |
Lamp Body
3kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 290× 289 |
Lamp Body
5.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429 |
Lamp Body
5.9kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429 |
Lamp Body
7.2kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610 |
Lamp Body
7.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610 |
Net Weight/
Gross Weight (Kgs) |
3kg/
3.5kg |
5.5kg 6kg |
5.9kg
6.5kg |
7.2kg
8kg |
7.5kg
8kg
|
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China
In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,
In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay
In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved
In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings
In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),
Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers
In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing
In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch
In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)
SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers
We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.
Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
