Outline Dimensions:
15.00X8.00X4.00mm
Digit Height:
0.25 Inch(6.2mm)
Emitting Color:
Single Color
Dp Number:
1PC
Digit Number:
3 Digit
Chip Matrial:
4-Element
Tube Chip Color:
Single Color
Scanning Mode:
Static Scan
Display Type:
Segment LED Display
Application:
Meters and Instruments
Certification:
Reach
Display Function:
Numbers and Some Alphabets
Product Description
Features Ø 6.2 mm (0.25 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliant
Available options
Ø Alternative emitting luminosity: Standard or high brightness version Ø Alternative emitted color Ø Alternative segment color Ø Alternative font Ø Common Cathode is available Ø Cropped terminal pins Selection Guide

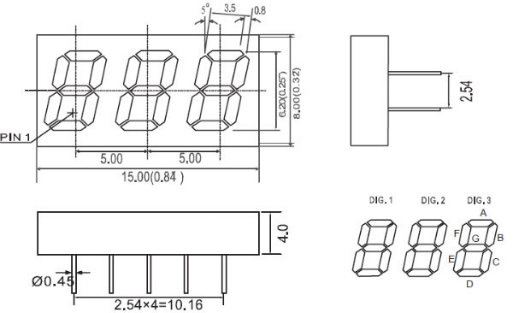

Three digits 7 Segment LED Display, Digit Height: 6.20mm(0.25inch), External Dimensions: 15.00x8.00x4.00mm (LxWxHmm)
Part No.
Chip
Iv@IF=20mA
Iv@IF=20mA

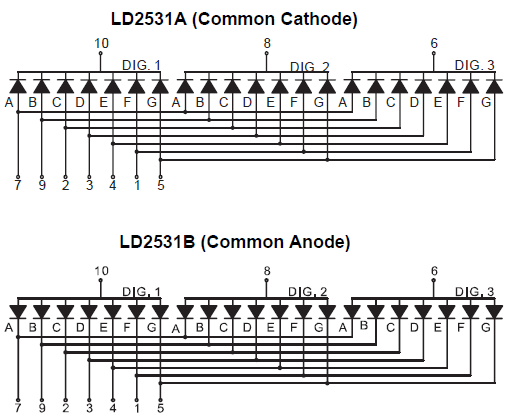

Common Cathode
Common Anode
Material
Color
WLD
One Seg
One DP
Min.
Typ.
Min.
Typ.
LD2531AR
LD2531BR
GaAlAs
Super Red
640
8
10
8
10
LD2531AD
LD2531BD
GaAlAs
Hi-Red
640
18
25
18
25
LD2531AO
LD2531BO
GaAsP
Orange
625
7
9
7
9
LD2531AY
LD2531BY
GaAsP
Yellow
588
8
10
8
10
LD2531AG
LD2531BG
GaP
Green
568
7
9
7
9
LD2531AUR
LD2531BUR
AlGaInP
Ultra Red
640
30
45
30
45
LD2531AUO
LD2531BUO
AlGaInP
Ultra Orange
625
45
60
45
60
LD2531AUA
LD2531BUA
AlGaInP
Ultra Amber
65
30
45
30
45
LD2531AUY
LD2531BUY
AlGaInP
Ultra Yellow
595
30
45
30
45
LD2531AUG
LD2531BUG
AlGaInP
Ultra Green
573
30
45
30
45
LD2531APG
LD2531BPG
InGaN
Pure Green
525
120
300
120
300
LD2531AUB
LD2531BUB
InGaN
Ultra Blue
470
30
45
30
45
LD2531AUW
LD2531BUW
InGaN
Ultra White
\
100
120
100
120
Unit:
\
\
\
nm
mcd
mcd
mcd
mcd
