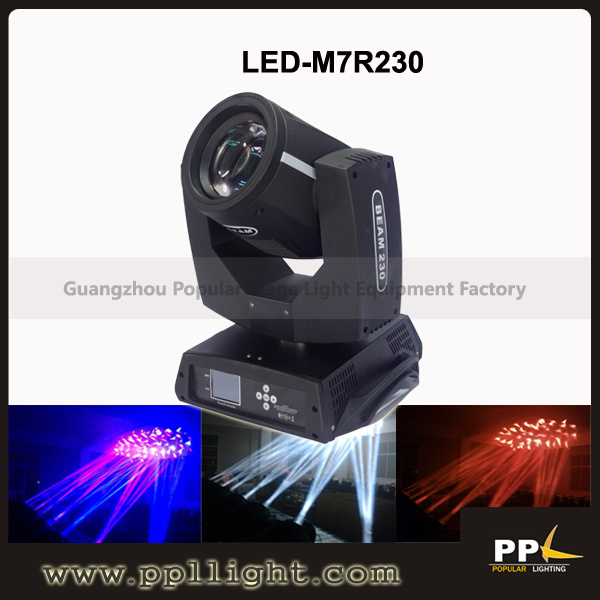

| Prod Model: |
PPL-M7R230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage Range: |
Stage/ Theatre/KTV |
| Lamp: |
Philips 5r , Osram 7r Lamp |
| Lens: |
3D Glass Optical Lense |
| Effect: |
Perfect Beam Light, Gobos, 8-Facet Prism |
| Function: |
Prism, Focus, Dimmer , Strobe |
| N/G.W.: |
16/17kgs |
| Packing Size: |
53*40*41cm |
| Emitting Color: |
Changeable |
| Control Channel: |
16CH |
| Strobe: |
Electronic Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Light Source: |
Osram 7r |
| Material: |
PC Engineering Plastic |
| Voltage: |
220V-250V |
Product Description
Feature:
1. Philips 5R 200W/ OSRAM 7R 230W lamp
2. High preceision glass optical lens, 3-layer glass, 6 surface coasting. It make the output beam looks brighter
3.14 colors + 17 gobos
4. Rotation 8-facet prism
Technical parameter:
Power supply: AC90-245V, 50/60Hz
Ballast: Electromagnetic Ballast or Electronic Ballast
Lamp: Philips 5R200W/7R230W or TODN 5R
Color Temperature: 8500K
Average Lamp Life: 2000H
Color: 14 colors +blank color wheel
Gobo: 17 fixed gobo + blank gobo
Prism: Rotation 8-face prism. Bilateral rotation
Lens: High precision glass optical lens
Wash effect: Adjustable Wash effects angle
Focus: Linear adjustment
Dimmer: 0-100%linear adjustment
Movement: Pan/Tilt: X axis 540° , Y axis: 250° Automatically accurate positioning
Beam angle: Parallel beam angel 0-3.8°
Strobe: Double lens strobe(0.5-9 time/second)
Control mode: Standard DMX512, Automatic and Master/slave mode
Channels: 16/20CHs
Packing dimensions: 53.5 x 40 x 41cm
Net / Gross weight: 16/17kgs
DMX Channel:
| CH MODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| 16CH | COLOUR WHEEL | STOP/ STROBE | DIMMER | STATIC GOBO CHANGE | PRISM INSERTION | PRISM ROTATION | EFFECTS MOVEMENT | FROST | FOCUS | PAN | PAN FINE | TILT | TILT FINE | FUNCTION (UNUSED) | RESET | LAMP CONTROL |
|
|
|
|
| 20CH | PAN-TILT TIME | COLOUR TIME | DIMMER-PRISM-FROST TIME | GOBO TIME
|
