North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Keywords:
LED Street Light
Carton N.W.:
12kg
Carton Size:
1015X440X165mm
Cover:
Toughened Glass
Holder:
60
Power Supply:
AC
Color Temperature:
Pure White
Lamp Body Material:
Aluminum Alloy
Power:
60-100w
Application:
Garden
IP Rating:
IP65
Certification:
SAA
Input Voltage:
220v
With Light Source:
With Light Source
LED Chips Brand:
CREE
Product Description

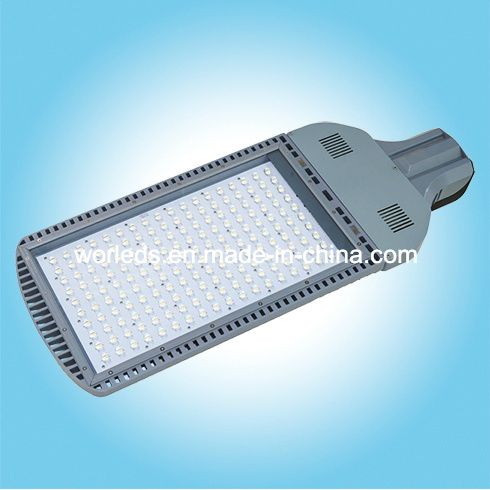

210W outdoor CE Approved Excellent and Eco-friendly Energy Saving High Power LED Street Light that can replace a 500W Metal Halide Lamp
This series takes high-thermal conductivity Aluminum and magnesium alloys into super integrated all-in-one cooling fixture with radiator fins on the back and bypass louver around. It's optimum optical designprovideshighilluminationefficiency(>85lm/w), at the same time minimum illumination decay(<3%within1yrs),accomplishing energy-saving and carbon-reducing effectively. The ultra robust die-casting modular is anti-corrosion, waterproof and dust-proof, well operated in high temperature,moist environment and other severe environment like that, and won't be corroded, so as to help stable and safety work, also lower the maintenance cost.Free modular serialization and full power range(40W-210W) make it the most popular lights on outdoor lighting, single unit damage does not affect other unit current.
Power Consumption: 215W; LUMINOUS FLUX: 17000LM; INPUT VOLTAGE: 100-240V, 50/60Hz; CCT: 5000-6000K; BEAM ANGLE: 150° X60° ; LIGHT SOURCE: 180X1W HIGH POWER; CRI≥ 70; PF≥ 0.95; IP Rating: IP66 ARM DIAMETER: 50~70MM; OPERATING TEMPERATURE: -40° C~+50° C; DIAMETER: 50~70MM; OPERATING TEMPERATURE: -40° C~+50° C; Life Time: 5 Years REPLACING 430W HPS
CE Approved Excellent and Eco-friendly Energy Saving High Power LED Street Light that can replace a 400W Metal Halide Lamp, substantial electricity savings, long lifespan, 5 years warranty, soft start function\dimming function, automatic clean function, tool-free installation.
Applicant: Landscaping buildings, bridges, squares, sports centers, tunnels, garden, subways, undergrounds, factories, clubs, hotels, stages, parks, parking lots, plazas and art galleries Main Features:
Main Features : 1. Thin and light fashionable appearance without big and heavy shield 2.High qualityLEDs, super bright , high light efficiency:>90lm/W 3.Unique all-in-one structure for severe environment 4. CEapproval,IP65 Waterproof, Three Years Warranty 5. Attractive return on investment with superior performance
Other Features:
6. 12 and 24V DC version is also available for solar power and other application
We also have more other style available (37W-210W). Different Beam angle for available. Epistar chips, also Can be CREE LED as customized order.
Advantages:
Light-weight and compact all-in-one structure, Excellent thermal control
The industry's highest level of high efficacy
50,000 hours lifespan
Soft start function\dimming function for illumination control
Lightweight design, fast install and easy maintains
Limited ultraviolet light, limited attraction of insects
IP65-High waterproof, anti-dust and anti-vibration level for severe environment
Automatic clean function
Function:
More cooling fins in the back to increase heat area effectively, fast heat dissipation to delay long life of LEDs quality
Be able to operate in high temperature,moist environment and other severe environment like that, and won't be corroded
can be regulated as required angle
Green environmental protection, with no lead or mercury
Lifespan is more than 50,000 hours, saving cost on changing lights
Strictly inspected and passed CE, CQC certifications
Primary Competitive Advantages:
*Unique technicalinnovation design
*Patent shape design with magnesium alloy
*Adopts high light efficiency led chip, and patent heat dissipation technology, feature with high light efficiency, low light decay and long lifespan
*Normally, use semi LED from Taiwan, could use LG or Cree if customers need
*Uniformly distributed light and color, very even light distribution and high uniformity, no glare to eyes
*Reliable qualities,use MEANWELL power supply,Compliant with CE standard
*-50-60°C Working temperature
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Energy-saving, Substantial energy-saving more than 50% compared with HPS lamp
*Environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan,Offer two to five years warranty
*High-power factor to minimize the harmonic distortion: PF: more than 95%
*Patent structure design, easy installation and maintenance
*Low maintenance costs
P OWER
210W
LUMINOUS FLUX
200 00LM
INPUT VOLTAGE
100-240V, 50/60Hz
CCT
3000-6000K
BEAM ANGLE
1 4 0 ° X 60 °
LIGHT SOURCE
HIGH POWER LED
CRI
≥ 70
PF
≥ 0.95
IP Rating
IP6 5
DIAMETER
954X380X112mm
OPERATING TEMP .
-40 ° C~+50 ° C
LIFESPAN
3 Y EARS
REPLACING TRADITIONAL
800W HPS
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.
Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
