20W Wireless Integrated LED Solar Light for Garden
Specification:
1. Solar panel: 50W
2. LED power: 20W
3. Lithium battery: 12V 18AH
4. Suitable for light pole: 5-6m
Advantage:
1. Integration design, Combining solar panel, LED lamp, battery and controller
All in one box, no need for extra wiring.
2. Easy to install and ship
3. Longer service life
4. Easy to maintain and replacement
Composition of products:
1)High quality solar module,
2)LED lamp,
3)Lithium battery
4)Motion sensor
5)Heat emission hole
Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.
Purpose:

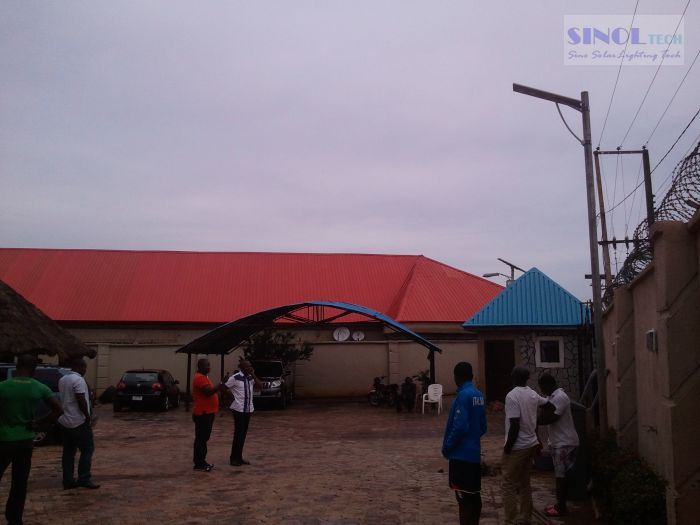

To be installed in the garden, residential area, courtyard, road, mine area or parking area or provide the light in roads where it's necessary, the battery provide the energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work in night automatically by light sensor control, and provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary
|
Solar Panel |
Max Power |
18V50W(High efficiency monocrystalline silicon) |
|
|
Life time |
25 years |
|
Battery |
Type |
Lithium battery 18AH |
|
|
Life time |
5 years |
|
LED Lamp |
Max power |
12V 20W |
|
(With sensor) |
Led chip brand |
Epistar from Taiwan with high brightness |
|
|
Lumen(LM) |
2000-2200LM |
|
|
Life time |
50000hours |
|
|
Viewing angle |
120 degree |
|
Charge time |
By sun |
7hours |
|
Discharge time |
Saving power |
more than 24 hours |
|
|
Full power |
more than 10 hours |
|
Working temp. |
range(C) |
-20C~+60C |
|
Color temp. |
range(k) |
6000k |
|
Mounting height |
range(m) |
5-6m |
|
Space between light |
range(m) |
18-20m |
|
Main lamp materials |
|
Aluminum alloy |
|
Certificate |
|
CE/ROHS/IP65 |
|
Warranty period |
|
2 years |
