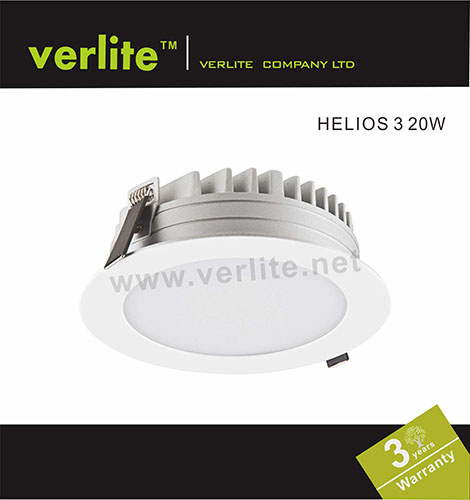

LED Downlight:
Helios 3 20W
LED Type:
SMD2835
Dimmable:
Yes
Lumens:
1600lm
CRI:
>80
Input Voltage:
200-240VAC
Output Voltage:
24VDC
IP Grade:
IP54
Certification:
SAA
IP Rating:
IP54
Warranty:
5 Years
Source Number:
Double Plug
Installation:
Embedded
Switch Type:
Touch On/Off Switch
Application:
Home Furnishing
Lamp Body Material:
Die-Cast Aluminium
Color Temperature:
Warm White Cool White Daylight
Product Description
Shallow recessing depthfor greater flexibility of installation. Dimmable as standard.
Designed to offer greater flexibility with wide range of luminaire diameterss to meet modern building designs. ldeal for entrance foyers, corridors, reception areas, stairwells, showrooms and toilets.
Compact design with low maintenance and running costs, ensure these downlights offer the perfect solution for the interior designer.
High power LEDs with up to 50.000 hours LED life Die-cast aluminium construction Full frosted recessed PMMA diffuser Shallow installed depth Daylight or warm white LED CRI>80 White powder coated finish 120° Beam angle C/w remote dimmable driver Emergency pack options avaiable
Description
Colour Temp
Power
Lumen
CRI
Beam

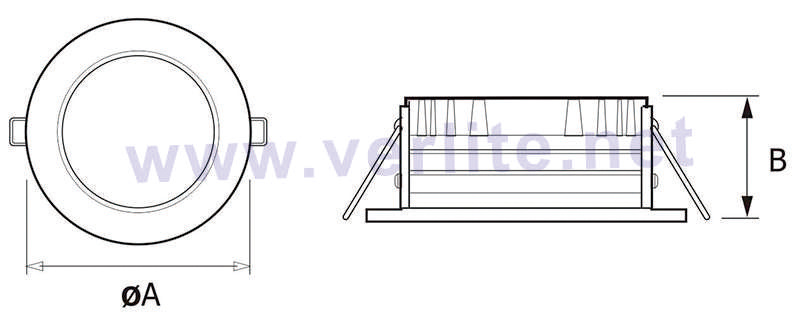

A(mm)
B(mm)
cut-out
10W
Helios 3
Daylight 5700K
10W
876
83
80°
100
50
84
Helios 3
Warm white 3000K
10W
763
83
80°
100
50
84
15W
Helios 3
Daylight 5700K
15W
1213
83
80°
140
50
115
Helios 3
Warm white 3000K
15W
1108
83
80°
140
50
115
20W
Helios 3
Daylight 5700K
20W
1571
83
80°
160
50
135
Helios 3
Warm white 3000K
20W
1398
83
80°
160
50
135
30W
Helios 3
Daylight 5700K
30W
2301
83
80°
200
50
175
Helios 3
Warm white 3000K
30W
2093
83
80°
200
50
175
