| Prod Model: |
LF-PAR56B-1X20W (COB LED-20W) |
| Type: |
PAR56 |
| Emitting Color: |
Full Range |
| Waterproof: |
Waterproof |
| IP Rating: |
IP68 |
| Life: |
50000h |
| Input Voltage: |
12V |
| Diffuser: |
Tempered Glass |
| Shell Material: |
Stainless Steel |
| LED Chips: |
CREE |
| Certification: |
EMC |
| Power: |
25W |
| Electric Current Type: |
AC/DC |
Product Description

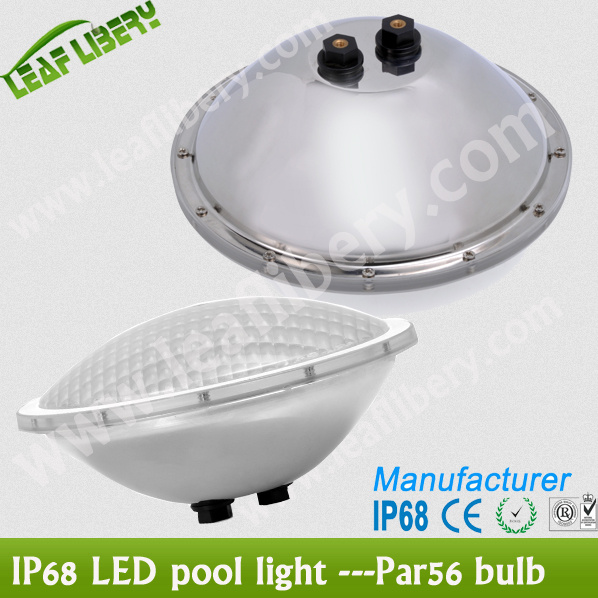

316(V4A)Stainless Steel LED PAR56 Swimming Pool Light - PAR56 Series
Feature(advantages):
Patented Product/Private Tooling(Patent No.: ZL 2011 2 0512723.1)
RGB Synchronization with our patented remote control system (Patent No.: ZL 2012 2 0640518.8)
IP68(100% water-proof test with high pressure water-proof device
316(V4A) Stainless Steel lamp body material, also have plastic option
Base options: Scerew Terminal
Applicable both in salt water and fresh or chlorine water
Wide range power: 12-35W to fit different environment requirement
Applicable LED chip: SMD, High Power, COB
Replace 300W-100W Halogen Light
Technical Parameters:
Item No. | LF-PAR56B-1X20W (COB LED-20W) |
| Led Type | COB 25W |
| Led Quantity | 1pcs |
| Color | warm white | daylight white | cool white | red | green | blue | yellow |
| Lighting Angle | 120° |
| Lumem Output | 1600lm ±10% Lm |
| Input Voltage | 12V AC 50~60Hz |
| Power Consumption | 20±1W |
| Equivalent Halogen | / |
| Driver Function | constant current | over heating / over loading / short circuit protection |
| Base | screw terminal |
| Ambient Temperature | -20 ~ 45ºC |
| IP Rating | IP68 |
| Suggested Install Depth | <1.50 meters |
| Max. Install Depth | 3.0 meters |
