North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutout:
153mm
LED Source:
COB
Application:
Multiple Baffle Patterns for Various Applications
Tilting Angle:
+-30deg
Style:
European
Shape:
Round
IP Rating:
IP44
Install Style:
Surface Mounted
Certification:
LVD
Color Temperature:
2700-6500k
Lamp Body Material:
Die-Casting Aluminium
Shade Type:
PC
Usage:
Commercial
Voltage:
100-240VAC
Beam Angle:
15°/24°/38°/60°
Product Description

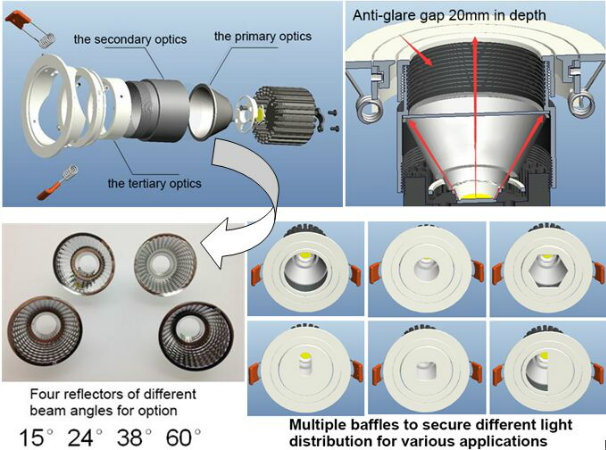

Features: 1. Anti-glare design, with five baffles applicable to different sites, 2. Four alternative reflectors, with four beam angles to be obtained. 3. High Rendering with Ra≥90.
Specification:
P/N:
CZCL20002-WDWIX
Power Consumption:
20W
Input Voltage:
AC100-240V
C.C.T.:
2700-6500K for option
Luminous Flux:
1400lm (6,000K)
Ra:
≥90
Beam Angle:
15°/24°/38°/60°
Materials:
Aluminium housing & PC diffuser
Size:
Ø160x155mm
Cutout:
Ø153mm
Net Weight:
880g
Lifetime:
≥40,000hrs
