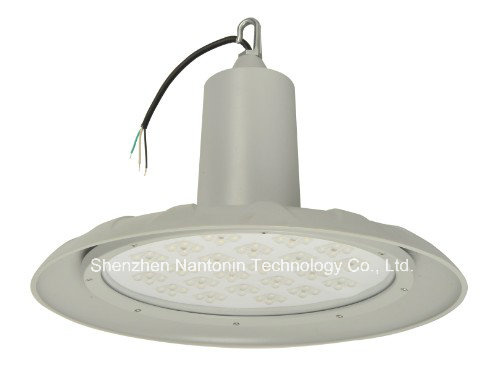

2016 New 150W LED High Bay Light
Price: |
US $ 240-252/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Western Union |
Prod Model: |
NTN-HB150T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Size: |
Dia498*383mm |
Warranty: |
5 Years |
Lamp Body Material: |
Aluminum |
IP Rating: |
IP54 |
Certification: |
UL |
Color Temperature: |
Warm White/Pure White/Cool White |
Color: |
Silver Color |
Product Description
Smart Technology Features: 1. Top of the line, American Made, Cree LED Chips. 2.UL rated Philips Driver(s) in IP66 separate compartment to isolate heat ( No Ballasts Required)3. Die cast waterproof IP66 aluminum alloy casing.4. Passive heat dissipation system. No fans to malfunction.5.Quick-installed hook with G1/2' spiral.6. 4 IN 1 Lens module with more than 3 kinds of light distribution. Flexible lens combination to create different distribution7. Easy clean from the new shape design without fin.8. High tempered glass cover better for the protection on the production areas. Fiver year warranty standard9.60,000 hour life equals over 13 years at 12 hours per day without dimming.120-277 or 277-480VGerman WAGO wire connectors10. Great dust and water proof. Good application in warehouse, workshop, and specially in professional spot such as huge cooling-house and huge slaughterhouse11. Color Rendering Index>75 (older, "traditional" style lot lights are < 60 )12. Environmentally friendly Dark Sky Compliant13.Control system DALI/0-10V dimmer to reduce brightness when dimming is active14. Replacement available for existing 400 Watt bulbs.NTN-HB150T Detailed Technical Parameters is showing as following: Model number: | NTN-HB088T | Wattage: | 150W |
In put voltage(VAC): | AC120-277V(277-480V) | Led Quantity: | 88PCS |
Fixture light effect: | 122lm/W | CRI: | Ra>75 |

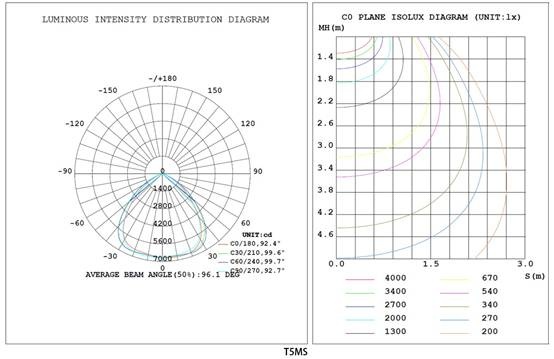

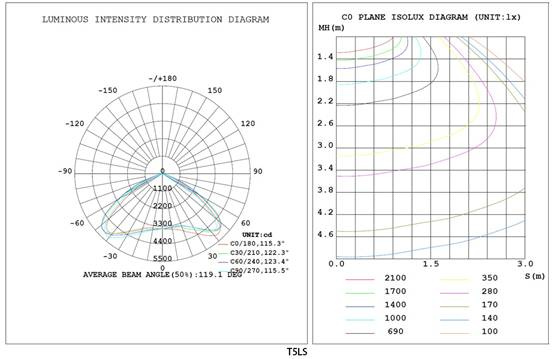

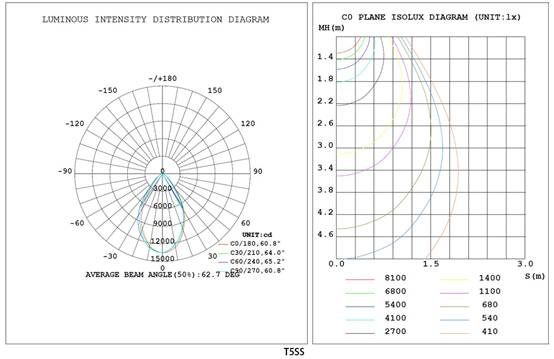

Beam angle | T5S(60°) T5M(90°) T5L(120°) | IP rate: | IP66 |
CCT: | 4700-5300K | Delivered flux(lm): | 14994lm |
LED drive current: | 0.53A | Chip: | CREE XT-E |
Control system: | DALI/0-10V | Installation way: | G1/2'' spiral |
Connector: | WAGO | Casing material: | Die-cast aluminum casing |
Size(mm): | ø498" * H383 | Life time: | >50000hrs |
Weight(Kg): | 7.7Kgs | Warrantee: | 5years |
NANTONIN is a registered brand for LED lighting products in USA, European countries and China. After 7 years developments, we are growing fast and now we have our own products line. Our main products includes LED pool lamps, LED shop lamps, LED supermarket lamps, LED panels, LED street lamps, , solar LED street lamps, wind turbine solar street lamps, LED tunnel lamps, LED flood lamps, LED high bays ects. Based on our strong eniginners team and desgining team, every year we will design our own patent products and it ensure that we are in the front of the LED technologies.
"Quality first, Service Foremost" is our commitment to our customers. We have well-trained team including full experience technicians, engineers, salesmen and workers. Under the USA energy start and European standards, all our products has passed the CE, RoHS, FCC, some of them also passed UL, DLC TUV ects. All these can ensure us to provide high quality products to your customers.
During these 7 years, we exported our products to more than 120 countries and get some agents for our products. Today we are still looking for agents or distributors for nantonin brand products and hope to built a double win cooperation with our partners.
