Model No.:
P8 Outdoor LED Display
Pixel Configuration:
DIP 3 in 1
Module Size:
256X128mm
Cabinet Size:
768X768mm
Module Thickness:
2.8cm
System Operating Humility:
10%-95%
Maximum Power Consumption:
≤600W/M2
Export Markets:
Global
Brightness:
>7500CD/M2
Module Quantity:
18PCS
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC
Pixel Pitch:
8mm
Pixel Density:
15625dots/M2
Product Description

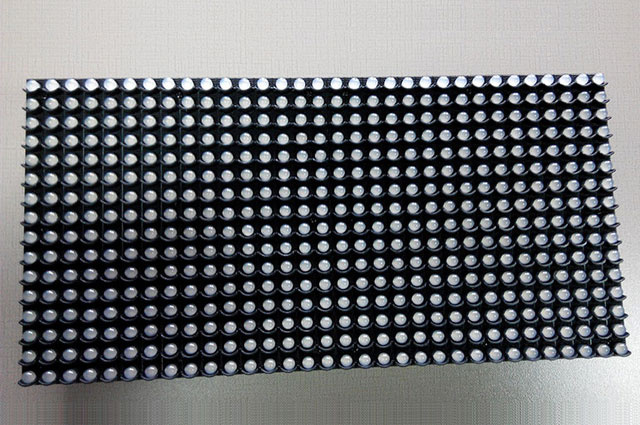

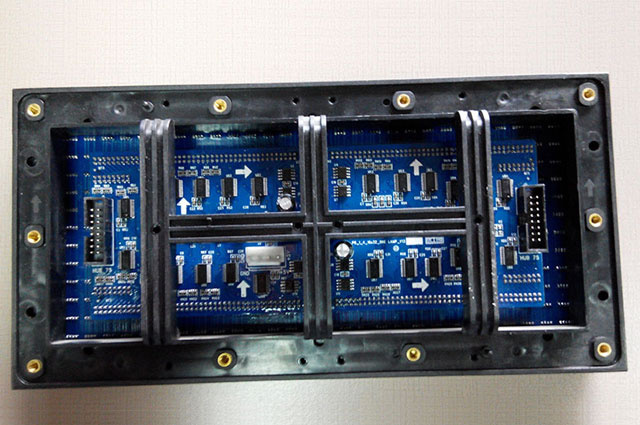

The Technical Parameters of Outdoor p8 led screen Dip 3 in 1
Item
Parameter
Product model
P8 Full Color Led Module
Module size
256mm*128mm
Pixel pitch
8mm
Pixel density
15625dots/m2
Pixel configuration
1R1G1B 3 in 1
Module resolution
32dots(W)*16dots(H)
Maximum power consumption
25W
Module thickness
2.8cm
Module weight
0.55kg
Driving method
Constant current driving
Scan mode
1/4 scan
Interface type
HUB75B
Brightness
≥7500cd/m2

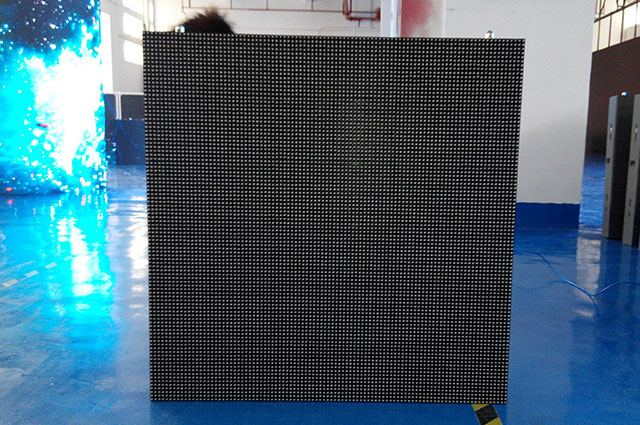

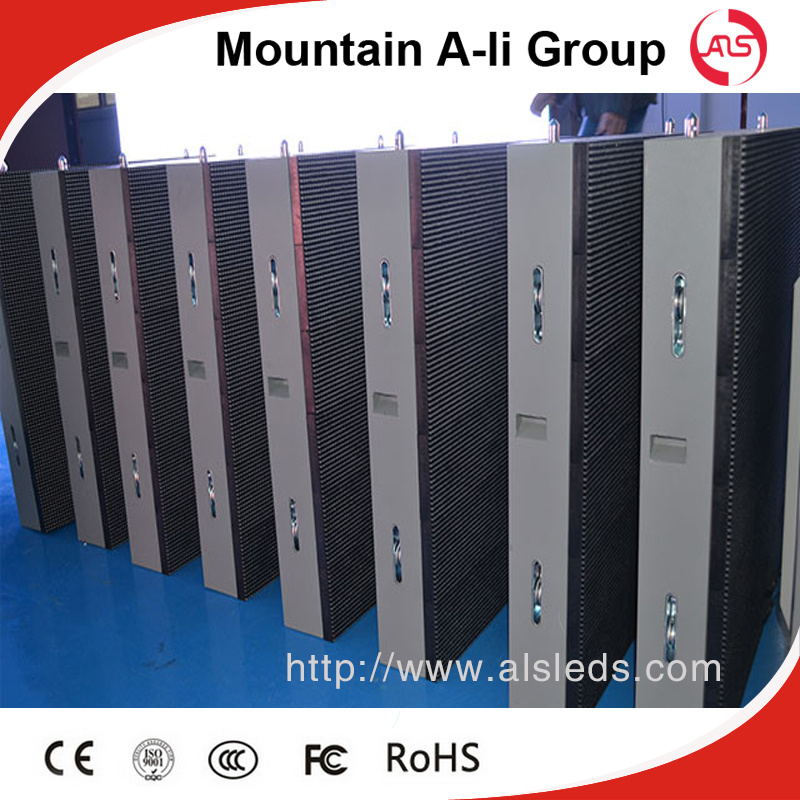

The specifications of cabinet
Cabinet size
768mm x 768mm
Module quantity
18pcs
Power supply
5V/40A 5V/60A
Cabinet resolution
96*96dots
Optimal viewing distance
8m~50m
Optimal viewing angle
160°(W) 120°(H)
Temperature
Storage:-35ºC~+85ºC Working:-20ºC~+50ºC
System operating humility
10%-95%
The specifications of power supply
Operating voltage
AC220V±10%
Average power consumption
300W/H
Maximum power consumption
≤600W/
Current
≤20mA(single LED)
The specifications of control system
Computer
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization with PC
The specifications of the main technical parameters
Driving device
Constant current driving
Refresh rate
≥600Hz
Grey scale
RGB each 256 grade, can display 16.7M colors)
MTBF
≥9000hours
Power switch
Automatic Switch
Display mode
800*600/1024*768/1280*900
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
