| Prod Model: |
SS-025 |
| Markets: |
North America,South America,Eastern Europe,Mid East,Western Europe |
| Control Mode: |
Constant Current |
| Operating Temperature: |
-28 to +50 |
| Relative Humidity: |
25%~95%Rh |
| Input Voltage: |
220V |
| Operating System: |
Windows |
| Gray Scale: |
256 |
| Screen Refresh Rate: |
60Hz |
| Gamma Correction: |
10 Degree Adjustable |
| Transmission Distance: |
UTP or STP 100m;Over 100m with Optical Fiber |
| Life Span: |
> 15 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ISO |
Product Description
2015 new style sky background outdoor led large screen display
Tri-vision, Tri-vision Billboard,advertising led display,led video screen,indoor led display,led screen,led display,led panel,led video wall,led display screen,led display board,led moving sign,led sign board,led display panel,led display panel
Porduct Video Link:
http://youtu.be/lGYzflIFJp0
1. Introduction:

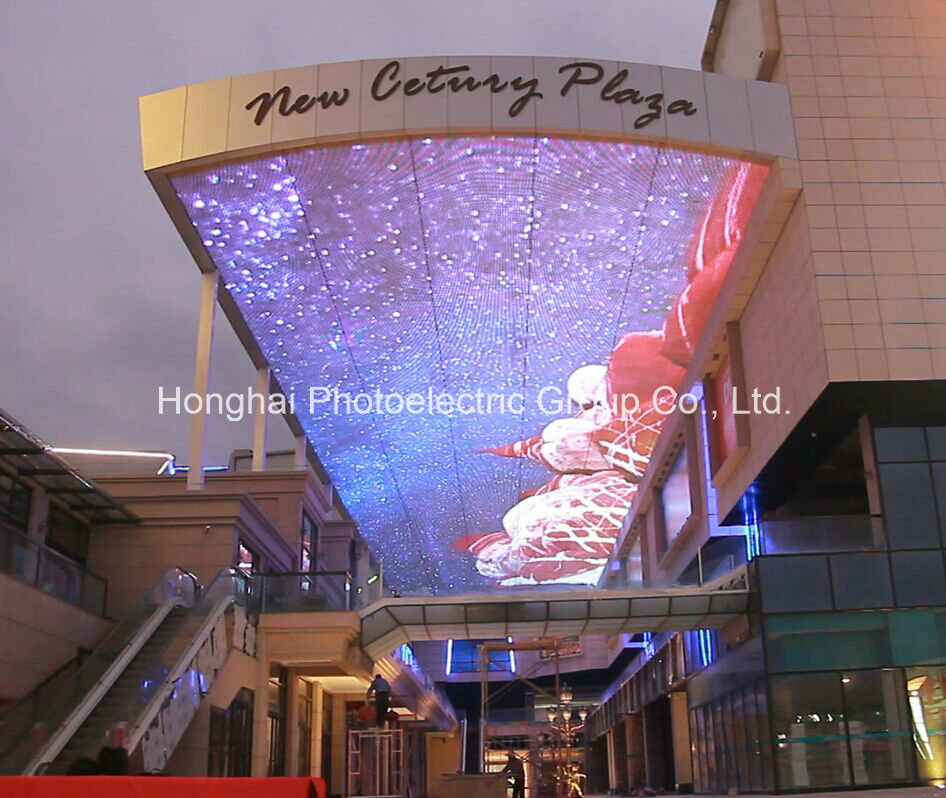

LED Sky screen is a huge full color led display installed in the ceiling of indoor commercial street, integrating sound, light and electricity technology. It creats fancy vivid images of bright blue sky,ocean,beautiful flowers with stunning visual experience.
Contact : Tina Zhang
Mobile: +86 136 6632 7758
2. Advantage:
1.Natural Heat Dissipation (no cooling system needed)
2.Energy Saving and Eco-friendly
3.Stunning Visual Experience
4.High recall rate and attracting customers
3. Applications:
Indoor & outdoor major commercial center, stadium design, real estate, etc.
General Specifications
Pixel Pitch: P25, P32, P40, P45, P68, P80
| P40 Specifications |
|
|
|
|
| sample size | 77.1m(L)x22.6m(W)=1742.46m² |
| Pixel Pitch(mm) | 40mm | pixel density
(pixel/m² ) | 625 pixels/ m2 |
| average power consumption(W/m2) | 112 W/m2 | maximum power consumption(W/m2) | 187W/m2 |
| Horizontal Viewing Angle | 140°(+70/-70) |
| Vertical Viewing Angle | 60°(+30/-30) |
| Working Humidity | 10%-90% RH |
| Working Temperature | -30°C~+50°C |
| Minimum Viewing Distance | 10m |
| Color Gamut | 1.7billion |
| Gray Scale Level | 4096 levels |
| Brightness adjustment | 100levels |
| Frame Rate | >60HZ |
| Refresh Rate | >300HZ |
| Power Supply | AC220V/50HZ |
| Blind spot rate | <0.0001 |
| Earth leakage current | <2mA |
| Scanning | static |
| Control | Synchronous with computer monitor |
| Signal Connection | CAT5 UTP cable transmission |
| Operating System | WINDOWS(98,2000,XP,Vista) |
| Signal Format(with video processor) | VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV |
| Control Distance | GB(National Standard) cable transmission distance:100m |
| Multimode fiber transmission distance:500m |
| Singlemode fiber transmission distance:10km |
Honghai Photoelectric Group Co., Ltd. is an outdoor advertising equipments company in China. We specialize in all kinds of Outdoor advertising equipments. Our main products contain: Trivision billboard/LED trivision billboard/LED screen/scrollig light box/rotating equipment/bus shelter etc.
We adopt advanced technology to realized all sets digital control production. Thousands of projects were achieved by our company are all over China and other countries. In 2010, our trivision display was used exclusively in Shanghai World Expo.
