North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp Body Material:
Chrome
Installation:
Embedded
Application:
Engineering
Certification:
RoHS
Color Temperature:
3000k,4000k,6000k
IP Rating:
22
Product Description
Power: 10W-15W
Voltage range: 90 to 265V AC
Frequency: 50 or 60Hz
UV- and IR-free, light for less heat and protection for heat sensitive objects
Safe and reliable
Energy-saving
Easy to install
Lifespan: 40,000 hours
Flicker-free and no noise
High-luminous efficiency
Specifications:

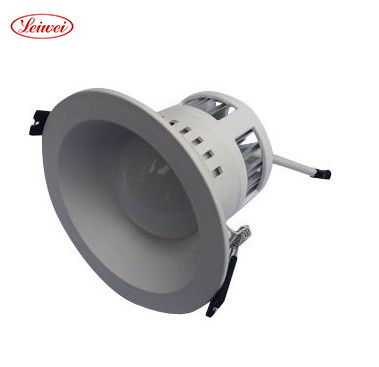

Illusion economy LED down light is a kind of indoor lighting product
Shell is made of entire aluminum alloy stamping with plastic surface cover and good heat dissipation
Adapts high brightness SMD2835 as light source
Entire lighting efficiency can be over 80lm/W
Built-in high power factor which is over 0.95
Features:
Light source: adapts high brightness SMD2835 with high efficiency
Great heat dissipation: aluminum alloy which own large cooling area and effective heat dissipation
Elegant design: popular industrial design elements, concise but grand style
Light distribution: makes point light source extension for surface light source
Power supply: constant current output to realize high reliability
Material: PMMA cover can be made, light effect well distributed, no dazzling
Applications: schools, universities, hospitals, hotels, conferences, meeting rooms, show rooms, showcases, commercial complexes, factories, plants, warehouses, offices, supermarkets and department stores
Warning:
Unsuitable for applications where atmosphere is very humid or vibration
Not suitable for dimming and electronic switches
Cutoff power before installing and cleaning
Holds plastic shell of lamp while fitting
Products
Lighting Quality
Driver
Outer Material
Lifespan
Warranty
Package
Name
Item Code
Size((mm)
Luminous Flux
LED Chips
Driver Type
Voltage
Cover
Housing
Cap
5W LED Downlight
LS2403-CWK05WY098
¢98*25
>320LM
Ra ~ 75
Sanan
Constant Current with IC
100-250V AC 50~60HZ
Al
PBT + Al Radiator
/
25,000H
2 years
Thick Corrugated Paper Color Box
7W LED Downlight
LS2403-CWK07WY108
¢108*26
>450LM
Ra ~ 75
Sanan
Constant Current with IC
100-250V AC 50~60HZ
Al
PBT + Al Radiator
/
25,000H
2 years
Thick Corrugated Paper Color Box
9W LED Downlight
LS2403-CWK09WY118
¢118*29
>580LM
Ra ~ 75
Sanan
Constant Current with IC
100-250V AC 50~60HZ
Al
PBT + Al Radiator
/
25,000H
2 years
Thick Corrugated Paper Color Box
13W LED Downlight
LS2403-CWK13WY140
¢140*29
>840LM
Ra ~ 75
Sanan
Constant Current with IC
100-250V AC 50~60HZ
Al
PBT + Al Radiator
/
25,000H
2 years
Thick Corrugated Paper Color Box
15W LED Downlight
LS2403-CWK15WY180
¢180*29
>970LM
Ra ~ 75
Sanan
Constant Current with IC
100-250V AC 50~60HZ
Al
PBT + Al Radiator
/
25,000H
2 years
Thick Corrugated Paper Color Box
18W LED Downlight
LS2403-CWK18WY190
¢190*30
>1150LM
Ra ~ 75
Sanan
Constant Current with IC
100-250V AC 50~60HZ
Al
PBT + Al Radiator
/
25,000H
2 years
Thick Corrugated Paper Color Box
24W LED Downlight
LS2403-CWK24WY225
¢225*30
>1550LM
Ra ~ 75
Sanan
Constant Current with IC
100-250V AC 50~60HZ
Al
PBT + Al Radiator
/
25,000H
2 years
Thick Corrugated Paper Color Box
Hangzhou Leiwei Electric Appliance Co., Ltd. Which has a total investment of $20 million, while $2.5 million registered capital. It located in Zhejiang Lin' An Economic Development Zone in Zhejiang province. The factory area reaches to 36667 square meter and workshop area is 25000 square meter.
The company is a newly high-tech enterprise, which devotes in such field as the design, the research&development and manufacturing of Energy-saving lamp, as well as the LED lamps. At present, the monthly output is approximately 3, 000, 000 pieces.
Currently, there are 18 energy saving lamp series with more than 100 specifications, All of the products are according to the ISO9001: 2000' S standard and own CE, EMC, RoHS, GS, UL international approval. Moreover, it formed the sales network globally in the rough.
The ' Quality First, Customer upmost' Is our guiding philosophy, Based on the enterprise spirit of ' Solidarity, collaboration, deploitation, Dedication ' We will constantly strive to provide our customers both the resonable price and best sales services.
