North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Area:
144m2
Viewing Angle:
H:140°, V:140°
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
18mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
Static Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
ETL
Product Description
2015 Mrled P18mm Outdoor led screen/Outdoor LED Display in Africa (SMD5454)

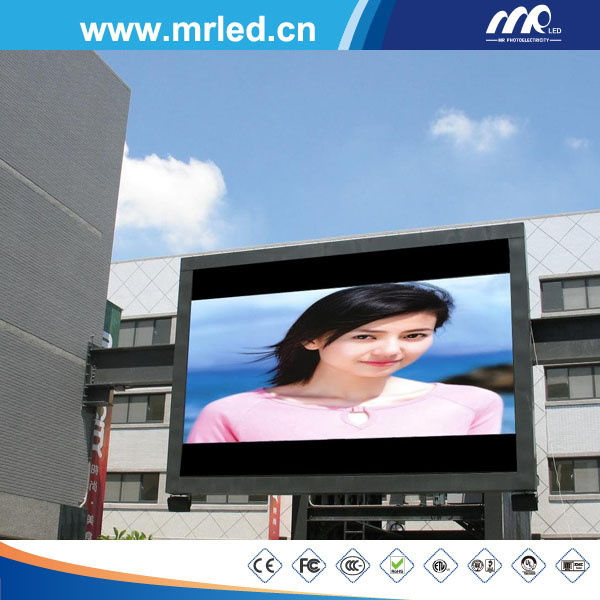

Recently MRLED completed the outdoor LED display project in Uganda in 2014,area 144m2 This project adopted P10and P16 mm full color LED display product. It is installed in the two sides of the building department for the advertisement.
This outdoor LED display has several features: High level color uniformity, high gray level refresh frequency. Free angle shape assembly,adjustable angle from -15°~ 15°,meet the requirement of featured stage style. Outdoor use, IP65 protection grade, more than 5500CD/SQM. Equipped with fast locks, more convenient to assemble and disassemble. Strip shape module is easy to maintenance. Waterproof connecter, with power and signal indicator lights outside of the cabinet.
About MRLED(WWW.MRLED.CN)
Shenzhen MR Photoelectricity Co., Ltd, headquartered at Bao'an, Shenzhen, is a pioneer in Led display . We specialize in designing, researching, manufacturing and selling all kinds of led displays . We are an LED company you can count on for its good quality and competitive pricing.
Our products cover full spec and our management is advanced and effective, and also, we have brought up and gathered a lot of experts at MRLED, now we have become one of the leading companies in this industry in China.
Parameters
Outdoor full color led screen
Pixel Pitch (mm)
10mm
12mm
16mm
18mm
18mm
Pixel density(pix/m2)
10000
6944
3906
3086
3086
LED Type
SMD3535
SMD5050
DIP5454
Viewing Angle
H: 140° , V: 140°
Brightness(nits)
4000
5000
5500
4800
Drive Method
1/4
1/2
Static
Driving IC
MBI5024
Color Depth
16bit
Refresh Rate(Hz)
1200
1800
3600
3600
3600
Module Size (mm)
640× 80
288× 288
640× 20
720× 12
Cabinet Size(mm)
640× 640
576× 576
640× 640
720× 720
Cabinet Material
aluminum
Cabinet weight(kg)
12
10.5
12
Voltage
200-240V
Average. power(W/m2)
410
480
450
Max. power (W/m2)
900
1050
980
IP Grade
IP65/IP54
Operating temperature/humidity
temperature: -20º C~ 50º C humidity: 10~90%RH
Storage temperature/ humidity
temperature: -40º C~ 60º C humidity: 10~90%RH
Lifetime(h)
≥ 50000
Compliant Standard
CCC(S& E)RoSH
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.

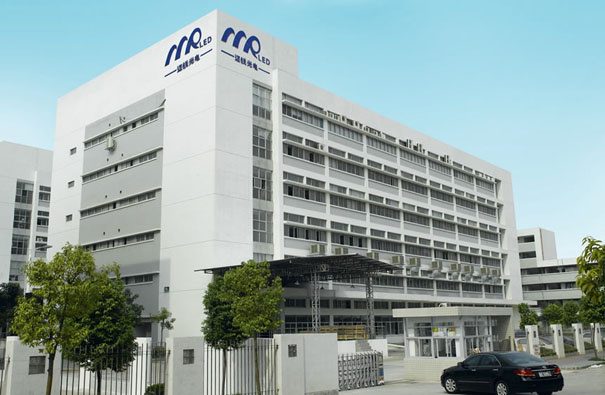

Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
