Size:
480X480mm
Material:
Die-Casting Aluminum
Tube Chip Color:
Full Color
IP Rating:
IP43
Display Function:
Video Display
Average Power Consumption:
600W / m²
Display Type:
LED Video Display
Application:
Advertising
Certification:
CCC
Pixel Pitch:
2.5mm
Pixel Configuration:
SMD2121 Black Face
Pixel Density:
160000dots/M2
Scanning Mode:
1/32 Scan
Product Description
Features:
1. Seamless of unit joint 2. Intelligence of brilliance control 3. Real and natural color 4. Exquisite and smooth picture 5. Greater Optimal viewing area 6. Stability
Application Case: It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
Unit Module
Item
Parameter
Model Number
HTS-P2.5-32S
Module size
240mm*240mm
Pixel pitch
2.5mm
Pixels Density
160000/m2
Pixel configuration
1R1G1B
LED Package mode
INTEEGRATION 3IN1 -1010
Pixel resolution
96dots(W)*96 dots(H)
Max Power
35W
Module thickness
17mm
Weight
0.66KG
Drive type
Constant drive
Scan mode
1/32 1/32scan
Port type
HUB138
Brightness of white balance
≥800cd/m2

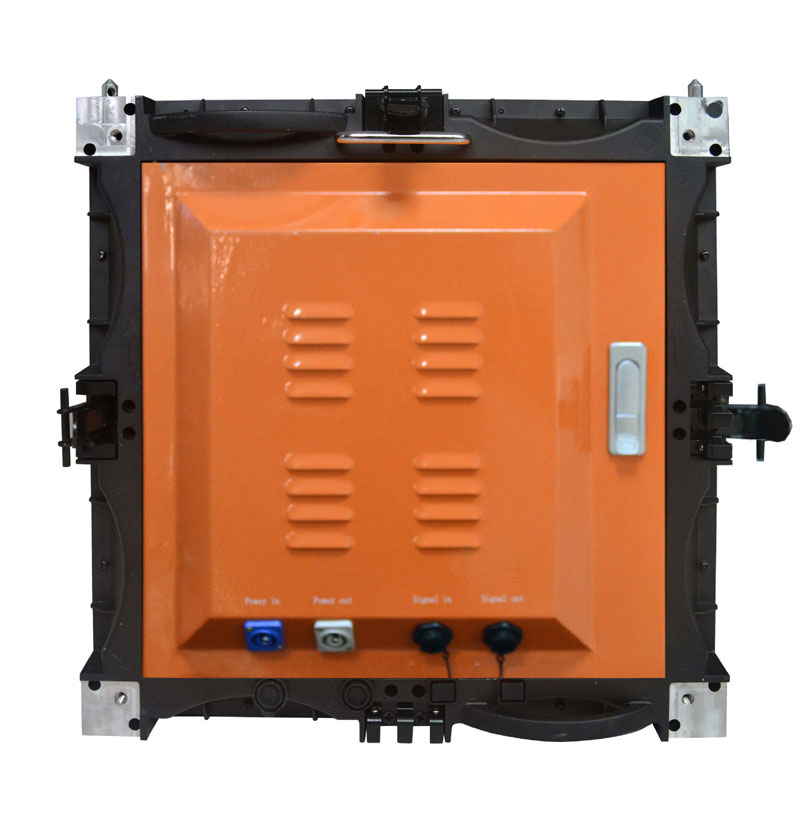

LED Cabinet
Dimension
480mm*480mm
Monomer Module Number
4
Power supply
5V/40A*1 pcs
Thermal discharge
fan 1pcs
Pixel per cabinet
192*192
Best viewing distance
4M~20M
Best viewing angle
160°(W) 120°(H)
Temperature
storage:-35ºC~+85ºC working:-20ºC~+50ºC
Relative humidity
10%-95%
Thickness
85mm
Power
Working voltage
AC220V±10%
Average Power consumption
200W/
Max.Power consumption
≤600W/
Current
≤20mA(single LED)
Control system
CPU
Pentium4 or above P4
Operation system
WIN98/2000/NT/XP/WIN7
Control method
Synchronization
Main technical parameter
Driving device
Constant drive IC
Refresh frequency
≥600HZ
/ Grey scale/colors
4096,16.7M 4096gray level/16.7M colors
MTBF
≥9000hours
Power switch
Automatic switch
Display Mode
≥800*600/1024*768
