North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:
15kg
Size:
494*358*253mm
Light Source:
LED
Material:
Aluminum
Emitting Color:
RGB
Control Channel:
22CH
Strobe:
Adjustable Speed Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP20
Certification:
RoHS
Voltage:
100-240V
Product Description

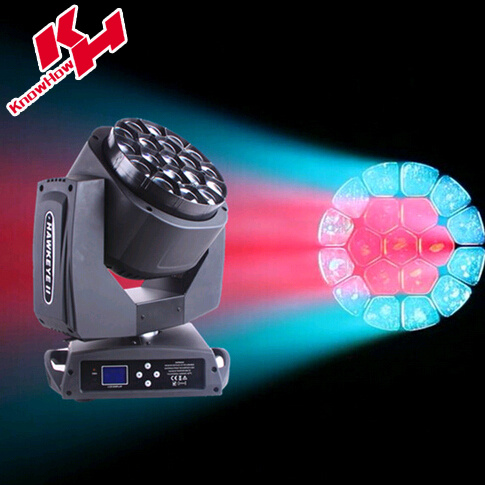

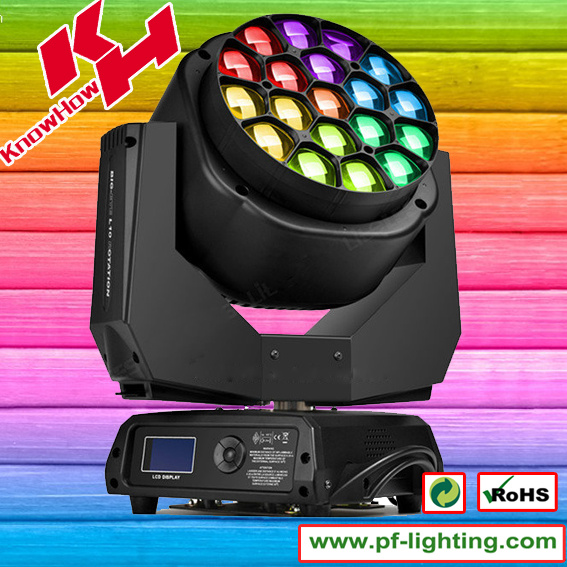

19x15W RGBW 4 IN1 Bee eye LED Moving Head Light, LED Beam Light
TECHNICAL PARAMETERS:
POWER SUPPLY 100-240V 50/60Hz LAMP SOURCE 19×15W Osram Ostar RGBW LEDs,50,000 h. Color temperature:2500 - 8000 k OPTICS 4°-60° Electronic Zoom angle EFFECTS SECTION Three operating modes: wash, beam, FX (Kaleido effects) Front Lens Bi-directional Rotation Digital Wash-Beam Framing effect Beam edge softening control (in Wash mode) 0-100% linear electronic dimmer Adjustable speed stop/strobe effect, with instantaneous blackout Dedicated channel for color temperature setting RGBW auto-tuning CONTROL AND PROGRAMMING DMX512: 3/5-pin XLR IN-OUT sockets Power connect: Powercon in&out MOVING BODY Movement by means of two stepper motors, controlled by microprocessor Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit. Display:LCD display Travel: PAN = 540° TILT = 210° Dimession Size:494*358*253 Weight:15 Kg
Specification:
POWER SUPPLIES
100-240V 50/60Hz
LAMP SOURCE
19×15W Osram Ostar RGBW LEDs,50,000 h.
Color temperature:2500 - 8000 k
OPTICS
4°-60° Electronic Zoom angle
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Front Lens Bi-directional Rotation
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
RGBW auto-tuning
CONTROL AND PROGRAMMING
DMX512: 3/5-pin XLR IN-OUT sockets
Power connect: Powercon in&out
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.
Display:
LCD display
Travel:
PAN = 540°
TILT = 210°
Dimession:
494*358*253
Weight:
15 Kg
Knowhow International Lighting Limited located in Guangzhou, was founded in March, 2005. We are a high-tech enterprise engaged in the development, production and marketing of LED moving head lights and LED PAR lights and LED wall washer systems. Our products have been widely applied in Disco, Pub, Opera House, Stage Performance, Theme Park, etc.
With 5 years' reform and development, our products have won high appreciation internationally. We have 60W/ 90W/ 200W/ 300W moving head beam light and LED moving head lights. LED PAR lights has 3W/1W 36PCS, 3W/1W 54PCS, 177PCS F10, 186PCS F10 RGBW, and LED wall washer 3rows 8sections, and 4rows 16sections. Based on good quality and competitive price, our products are very popular in Europe, America, South America, Middle East and other areas of the world.
Our company insists on brand and quality strategy. All our products are researched and developed by ourselves and has obtained the certificate of CE and RoHS.
Knowhow's all products have one year's guarantee. "QUALITY PRIORITY, CUSTOMER FIRST" is our permanent faith. We hope and believe that our company and customers will reach win-win situation with our continuous efforts.
