Prodcut Name:
19*12W LED Beam/Zoom Moving Head Light
Rated Voltage:
AC110-240V 50-60Hz
Power Consumption:
245W
LED:
19*12W RGBW 4in1 Osram LED
Beam Angle:
10 Degrees ~60 Degrees
DMX Channel:
14/22channels Mode
Operation Mode:
DMX512, Master/Slave
Dimmer:
0-100% Dimming
Dimension:
324.8*188*395.4 Mm
Weight:
9.2kgs
Light Source:
LED
Control Channel:
14CH
Strobe:
Adjustable Speed Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP20
Certification:
RoHS
Material:
Iron, Plastic
Voltage:
110-240V
Product Description

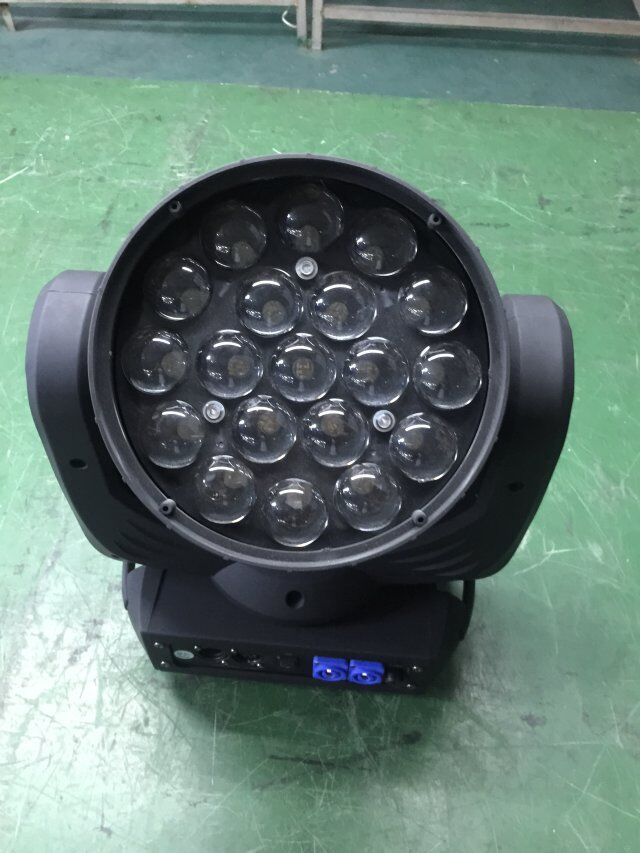

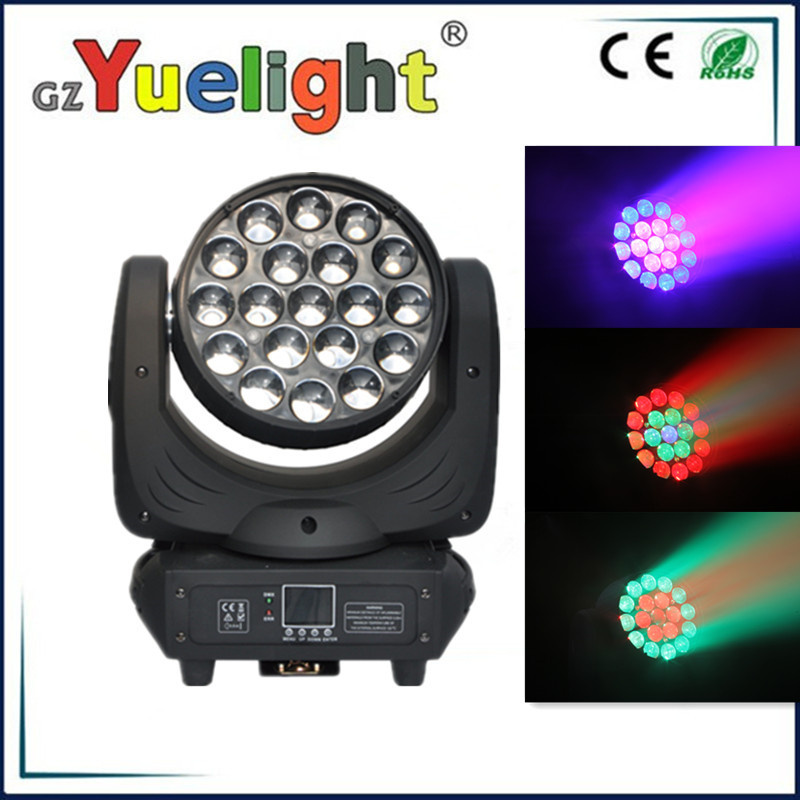

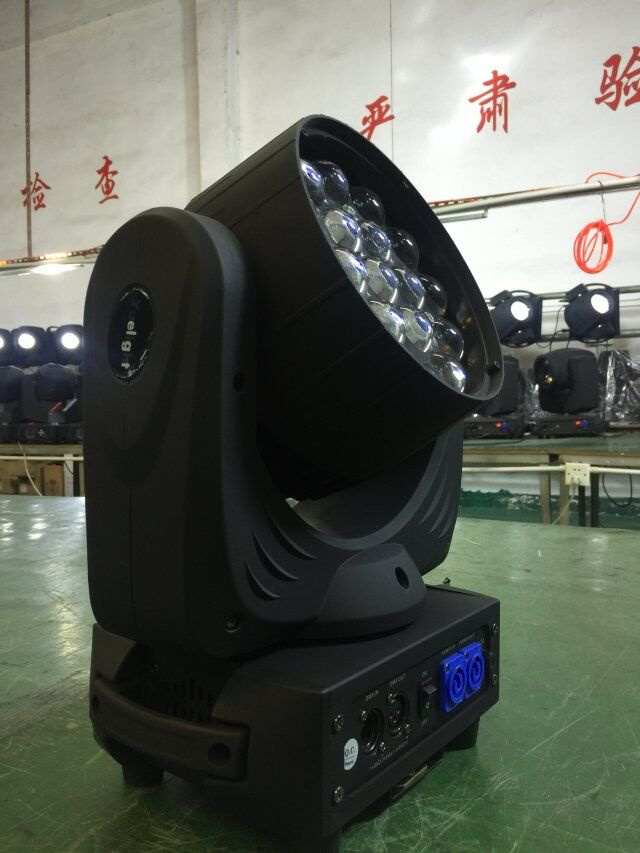

19PCS 12W RGBW 4in1 LED Beam Wash Moving Head Light
Specification:
Voltage: AC 100V~240V, 50/60Hz Power consumption: 245W LED: 19*12W RGBW 4in1 Osram LED Dimension: 324.8*188*395.4 mm Weight: 9.2Kgs Beam Angel: 10° ~60°
Extremely small, fast and powerful LED moving beam. DMX Channel: 14 /22channels mode Operation mode: DMX512, Master/Slave Great built-in lighting shows under Master/Slave mode Blue LCD display for easy navigation Perfect for stage, TV theatre, TV studio, rental and discotheques
Functions & Features:

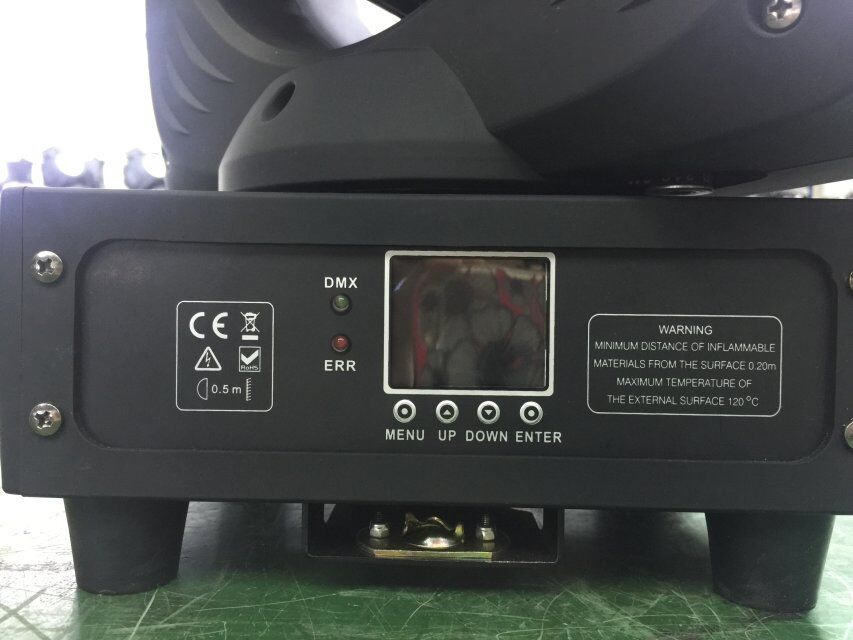

RGBW Color Mixing System 50000 Hours Liftsspan and Low Power consumption 540° PAN and 265° TILT 8bit smooth rotation and 16bit precise resolutuin for PAN/LILT Scan position memory, auto reposition after unexpected movement. LED Shutter and LED Dimming Speed and brightness adjustable 1-18 times/S Strobe and pulse effect LED raibow effect, Macros Effect With brackets for easier handling and using. Display: Operation button, Blue Ground LCD display. Perfect for stage, heatre, TV studio, rental and discotheques.
Advantages:
1. High power lamp and brightness. 2. Uniform colors and brightness with Bubble Lens 3. The ZOOM and moving head function bring vivid dynamic lighting effects for all directions of your stage and shows. 4. Experienced worker and technician make the products perfect with good parts. Good quality, stable running and best service make our price higher than the average of our competitor.
Channels
Value
Controlling functions
1
0-255
Xmotor
2
0-255
Ymotor
3
0-255
Focus motor
4
0-255
Xfine tune(16Bit)
5
0-255
Yfine tune(16Bit)
6
0-255
XYmotor speed from fast to slow
7
0-255
Open total dimming
8
0
No strobe
1-255
Strobe from slow to fast
9
0-255
Red 1 dimming, from dark to bright
10
0-255
Green 1 dimming,from dark to bright
11
0-255
Blue 1 dimming,from dark to bright
12
0-255
White 1 dimming,from dark to bright
13
0-255
Red 2 dimming, from dark to bright
14
0-255
Green 2 dimming,from dark to bright
15
0-255
Blue 2 dimming, from dark to bright
16
0-255
White 2 dimming, dark to bright
17
0-255
Red 3 dimming,from dark to bright
18
0-255
Green 3 dimming, from dark to bright
19
0-255
Blue 3 dimming, from dark to bright
20
0-255
White 3 dimming, from dark to bright
21
0-5
Don't call the macro function
6-20
Selective color(motor be controlled by 512)
21-40
Jump(motor be controlled by 512)
41-60
Shade(motor be controlled by 512)
61-80
Pulse change(motor be controlled by 512)
81-100
Sound control 1(motor be controlled by 512)
101-120
Sound control 2(motor be controlled by 512)
121-140
Selective color(motor automatic)
141-160
Jump(motor automatic)
161-180
Shade(motor automatic)
181-200
Pulse change(motor automatic)
201-220
Sound control 1(motor automatic)
221-255
Sound control 2(motor automatic)
22
0-255
Selective color, Jump, Shade, Pulse change, from slow to fast
Pictures show:
Packing Detail:
Standard export carton box with foam is provided. Flight case and color box is also available if needed.
Shipping Options:
By Express: DHL, FedEx, UPS, TNT (door to door ); By Air: To airport; By Sea: FCL or LCL;
Delivery Time
Mini order,3-5 working days.Under 1000 pcs,10-20 days normally. More than 1000 pcs, 20-35 days.
Payment Terms
T/T or Western Union: 30% down payment and 70% paid before delivery;
Warranty Period
All our products have one year warranty period. If there's any problems with the light,(without improper operation and outside force) during the first year,free parts and after service will be provided.
Our Promise
1. Provide solutions and high quality products 2. Streamline the buying and paying processes 3. Deliver the goods to our customers all over the world with speed and precision 4. Protection of your sale area, ideas of design and all your private information
Our Service
1. Provide professional person to communicate with you before the order. 2. Provide strict quality check for each part, each process before export. 3. Provide optimum system solution based on each client's specific requirement. 4. Provide complete post-sale service, including installation, technical guide and training.
Company Introduction
(1)Our mainly products are beam lights,led moving head lights,, LED effect light ,par light,laser light and so on. (2)We have 8 years of experience in producing and exporting stage lights.we are a professional stage lighting company.
Why choose us
(1)We are factory with high quality and competitie price. (2)We are a famous factory in China .We can ensure a perfect quality and do our best for the after-sale service.our client (3)Honor and certificatesISO,CE,Rosh ( we can send you the certificate with testing report before confirmed order)
