Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
18W |
Beam Angel: |
30 |
Diameter: |
119mm |
Height: |
27.5mm |
Net Weight: |
1.2kg |
IP Rating: |
IP68 |
With Light Source: |
With Light Source |
Lamp Body Material: |
Stainless Steel |
Lampshade Material: |
Glass |
Certification: |
RoHS |
Style: |
Modern simplism style |
Emitting Color: |
White |
Application: |
Boat/Yacht |
Voltage: |
12-24V |

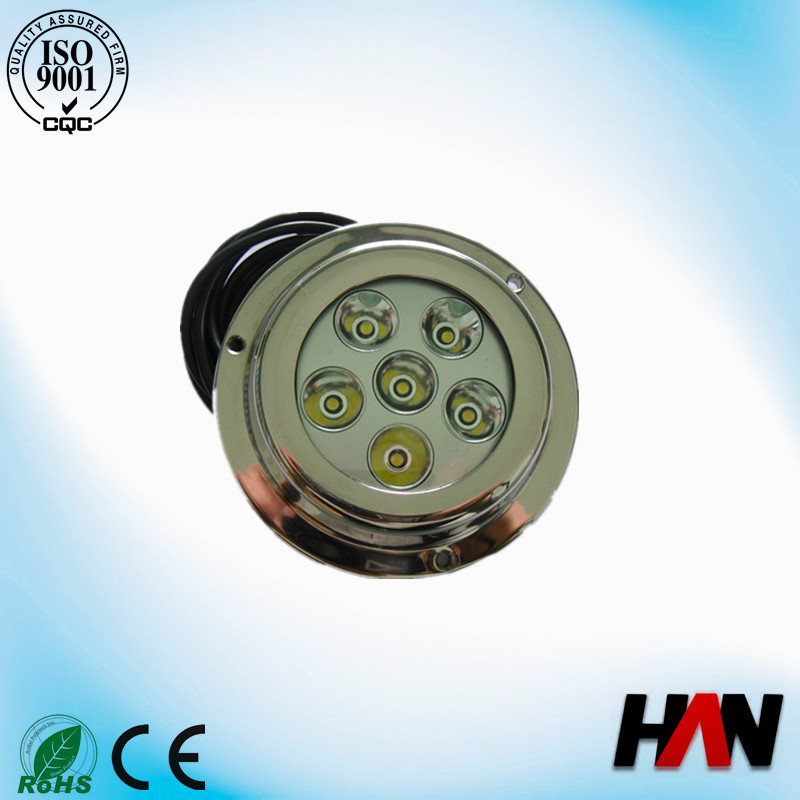

Product Description
Main features:
1. Super rate high power LED which is encapsulated by high efficiency and latest heated-conducting structure.
2. First-class stainless steel shell has excellent corrosion-proof, makes the lights to use in sea water freely.
3. High luminous efficiency, life span reach 50000 hours
4. Widely working current range. Lower electric consumption.
5. Waterproof, shake-proof, energy-saving, environment-friendly.
6. Light source: 6pcs led, 3W/pcs
7. Easy to installation.
Technical parameter:
Power | 18W |
Operating voltage | DC12V |
Color | RGB/White/Red/Green/Blue |
Emitting angle of peak | 30º |
Material | 316 stainless steel |
IP rate | IP68 |
Power supply | Built in led driver |
Size | 119*27.5mm |
Net weight | 1.2kg |
Lumen details:
led underwater boat light |
Power | Red | Green | Blue | white | RGB | Maxinput current |
Lumen (lm) | wave lengh (nm) | Led brand | Lumen (lm) | wave lengh (nm) | Led brand | Lumen (lm) | wave lengh (nm) | Led brand | Lumen (lm) | CCT | Led brand | Lumen (lm) | Led brand |
6*1W | 210-240 | 630 | Epistar | 350-400 | 520 | Epistar | 70-80 | 460 | Epistar | 400-450 | 6500-7000K | Epistar | 300-350 | Epistar | 500MA-600MA |
3*3W | 250-300 | 630 | Epistar | 400-450 | 520 | Epistar | 80-90 | 460 | Epistar | 500-600 | 6500-7000K | Bridgelux | 450-500 | Epistar | 500MA-600MA |
6*3W | 420-450 | 630 | Epistar | 600-650 | 520 | Epistar | 140-160 | 460 | Epistar | 800-850 | 6500-7000K | Bridgelux | 650-700 | Epistar | 1.2-1.4A |
9*3W | 650-700 | 630 | Epistar | 850-900 | 520 | Epistar | 210-250 | 460 | Epistar | 1200-1300 | 6500-7000K | Bridgelux | 1000-1100 | Epistar | 1.8-2A |
9*5W | 1100-1200 | 630 | Epistar | 1500-1600 | 520 | Epistar | 350-400 | 460 | Epistar | 1650-1750 | 6500-7000K | Bridgelux | 1300-1400 | Epistar | 3.5-4A |
12*3W | 900-1000 | 630 | Epistar | 1300-1350 | 520 | Epistar | 250-300 | 460 | Epistar | 1500-1600 | 6500-7000K | Bridgelux | 1200-1300 | Epistar | 2.5-2.8A |
12*5W | 1200-1300 | 630 | Epistar | 1700-1800 | 520 | Epistar | 450-500 | 460 | Epistar | 2100-2200 | 6500-7000K | Cree | 1700-1800 | Epistar | 4.5-5A |
100w | 3000-3200 | 630 | Epistar | 4500-5000 | 520 | Epistar | 1500-1800 | 460 | Epistar | 5500-6000 | 6500-7001K | Epistar | 5000-5500 | Epistar | DC24V/3.5-4A |
Installation instruction:
1. Fix the light on the ship plate with 3 M4 screws
2. Use DC12V power source
3. The red line is positive pole, the others are negative pole
4. Line length:2m, diameter:4mm
Application:
1.These underwater led marine lights are designed to mounted to your boats. Use high power LED on marine to show sea creatures at night, floodlight to show off the outline of the boat, the illuminative light as new fashion illumination.
Light up the water behind your baot with these super bright high quality underwater led lights. Amazing look, Attract marine life, wakeboard on illuminated water.
2.These lights also good for docks, ponds, swimming pools, fountains or any other underwater lighting application.
Why us?
1. 30 days satisfactory time for samples, in the 30 days customers can return the lights back to us as long as not satisfied with the sample.
2. 5 years warranty, in the warrantyt time we can change new light for customers if there is any problems with our lights. (no human factor or natural disaster damage)
3. We have 20 years' designing experience and 40 years sales experiences.
4. We have got TUV and ,CE,ROHS ,ISO9001:2008 certifications
5. We are the supplier of Walmart , Amway and Office Depot, etc.
6. We can promise you a short lead time
7. We have our own factory and can offer you direct price and offer the lowest price.
8. We have a variety of products
9. We have professional sales team.
Xi' An Greenwood New Energy Technology Co., Ltd. is the subsidiary of Han Industrial Group Limited. We are specialized in the research, development and manufacture of LED lights, solar lights and solar generating systems and so on. Our products are widely applied to lighting, sea navigation, energy saving, coal mine, gas station and other professional industrial fields.
Our main products:
Solar marine light /solar navigation light /solar aviation light
Solar vehicle warning light /solar road/traffic warning light
Solar road stud
Solar water Pump
LED underwater boat light
We have a professional and experienced technical development team. We staff 300 personnel, including 50 professional engineers with high education and 100 skilled workers with strict training. They are willing to design and manufacture products with various designs and specifications. Meanwhile, we can design and manufacture products according to your special requirements
Quality control is more an action than a slogan. Strict quality control is implemented in all aspects of operations to meet the high standards of top-tier customers. The philosophy has permeated all levels of the production process, covering: 1) incoming material inspection; 2) inspection of work-in-progress; 3) finished products inspection; 4) random inspection in warehouse.
With high quality products, excellent service and good reputation, we have won great supports from customers and become more powerful. Thus, our company scale has been expanded.
