North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Type:
LED PAR Light Indoor Use
LED Source:
18PCS 10W RGBW 4in1 LEDs
Housing:
Aluminum, Black
Using Place:
Wedding, Home Party, KTV, Stages
N.W.:
3.8kgs
Packing Size:
260*260*370mm
Power:
10W
Waterproof:
Not Waterproof
IP Rating:
IP20
Life:
80000h
Electric Current Type:
AC
Diffuser:
Polycarbonate
Shell Material:
Aluminium Alloy
Certification:
RoHS
Type:
PAR54
Emitting Color:
RGBW
Input Voltage:
AC90-245V, 50-60Hz
LED Chips:
Made in China
Product Description
Feature: 1. New Quad-color LED technology 2. 18 x 4IN1 RGBW LED multichip 3. Superior color mixing 4. No multi-color shadows 5. Extremely bright beam 6. 25°beam angle 7. Aluminium housing

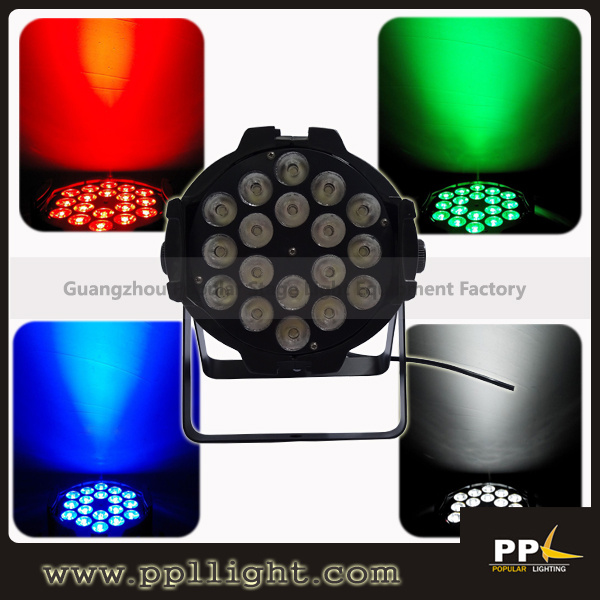

18PCS *10W 4-in-1 LED PAR Light Indoor ITEM NO: LED-C001 1. Specification Working voltage: AC90~240V 50Hz/60Hz Power: 360W LED spec: 18PCS of 10W 4-in-1 Leds LED Lifetime: 60, 000-100, 000 hours Beam angle: 25/45° Control: DMX, master slave, sound activated, auto mode Control channels: 4CH/ 8CH Display: Digital screen N. W.: 3.5 kg G. W.: 4.36 kg Carton size: 320× 320× 340mm
DMX Channel:
DMX 8H Mode Channel
Channel
number
Function Description
CH 1
0-255
General Dimmer
CH 2
0-255
Strobe from slow to fast
CH 3
0-50
CH 1-CH6 on
51-100
Color choosing process
101-150
Gradual change process
151-200
Pulse change process
201-250
Change process
251-255
Sound-activation
CH 4
0-255
Speed from slow to fast
CH 5
0
Red off
1-255
Dimmer ,from dark to light
CH 6
0
Green off
1-255
Dimmer ,from dark to light
CH 7
0
Blue off
1-255
Dimmer ,from dark to light
CH 8
0
White off
1-255
Dimmer ,from dark to light
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
