Wall Mounted Outdoor Lighting:
Wall Mounted Track Lighting
Wall Mounted Lighting Fixtures:
Outdoor Wall Mounted LED Lighting
Exterior Wall Mounted Light Fixtures:
Wall Mounted Lamps
IP68 Light Fittings:
IP68 LED Underwater Light
WiFi LED:
Aquarium LED
Fountain LED Lamp:
Park Light
Light Products:
Tkledlights
IP68 Lamp Bulb:
Outdoor Lighting
IP Rating:
IP68
Emitting Color:
Changeable
With Light Source:
With Light Source
Application:
Pond
Lamp Body Material:
Stainless Steel
Lampshade Material:
Fiber Reinforced Plastics
Style:
Korean
Technics:
Drawbench
Voltage:
12V
Certification:
RoHS
Base Type:
No
Product Description

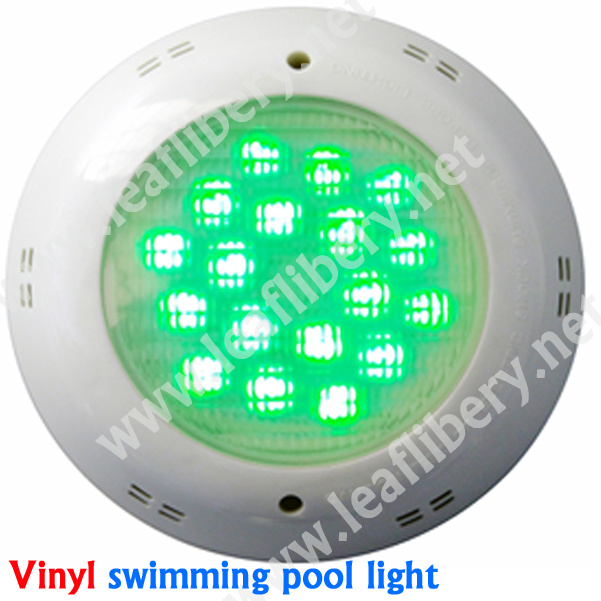

IP68 Structure water proof ( private tooling & patented product), unique internal design, good at waterproof and anti-corrosion.
RGB synchronization with patented RGB controller
Thermal plastic body & pc cover, easy to install and excellent performance on heat dissipation.
Constant driver to make sure LED light working stably, avoid any flashing and noisy
High quality and brightness LED source.
Projection distance: 5-6 meter
Color: Single color - white, red, green, blue, yellow
Color: RGB, 14 kinds of color changing
6 kinds of RGB control mode: Remote control, WIFI control, DMX 512 control, External control, Remote & switch remote control, Automatic control
Beam angle:SMD5050/3528/5730-120°, high power-15°25°/30°/45°/60°
Life span 30000 hours
Overcurrent protection
Specification
Parameters
Model No.
LF-P56M-18*1W
LF-P56M-18*3W
(RGB 3 IN 1 LED)
LED Qty
18 pcs 1W High Power
18 pcs 3W(RGB 3 IN 1) High Power
Input Voltage
AC/DC 12-13V
AC/DC 12-13V
Frequency
50/60 Hz
50/60 Hz
Power
18±1w (RGB)
14±1w (R)
18±1w (G)
18±1w (B)
19±1w (white)
25±1.5w(RGB)
Color Temperature
w.w.3000-3500K
p.w.6000-7000K
c.w.8000-10000K
RGB only
Luminous Flux
P.W. 1200Lm±10%
W.W. 1100Lm±10%
C.W. 1000 Lm±10%
400Lm±10%Lm (R)
750±10%Lm (G)
180±10%Lm (B)
RGB: 430±10%Lm
880±10%Lm (RGB)
Color Rendering Index(CRI)
P.W. Ra≥70
RGB only
Wave Length
R/G/B: 620-630/515-525/
460-470 nm
R/G/B: 620-630/515-525/
460-470 nm
Beam angle
30°/45°/60°
30°/45°/60°
Dimension
290*150.6mm
290*150.6mm
Working
temperature
0~40ºC
0~40ºC
Storage
Temperature
0~50 ºC
0~50 ºC
Constant driver
yes
yes
IP rating
IP68
IP68
