| Prod Model: |
ES-A003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Es-A003 |
| Country Of Origin: |
Guangzhou,China |
| Package: |
Flight Case/ Carton |
| Warranty: |
12 Months |
| Channel: |
16CH |
| Lamp: |
Himi575 |
| Material: |
Aluminum |
| Emitting Color: |
Changeable |
| IP Rating: |
IP20 |
| Strobe: |
Adjustable Speed Strobe |
| Certification: |
RoHS |
| Light Source: |
Gas Discharge Bulb |
| Control Channel: |
16CH |
| Control Mode: |
Auto, Master-Slave, DMX512, Sound |
| Voltage: |
AC 90V-240V 50-60Hz |
Product Description

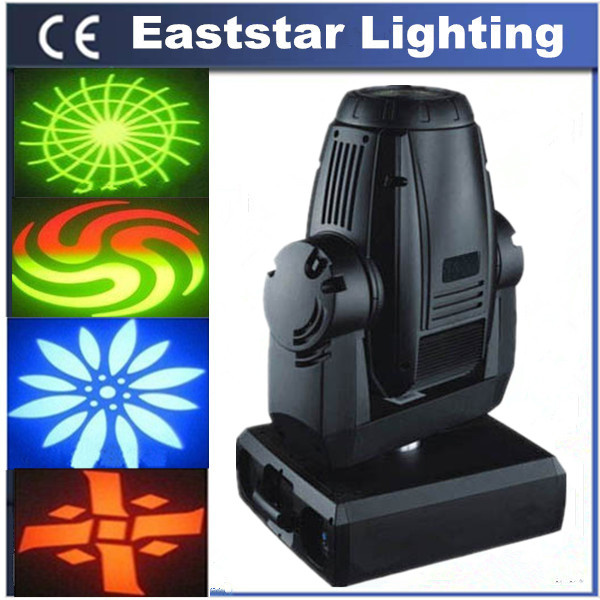

Professional 16CH Robe 575 moving head spot light (ES-A003)
Technical parameter:
1. Voltage: AC110/220V, 50/60Hz
2. Power consumption: 800W
3. Lamp: HMI 575
4. Operation Mode: DMX, Master/slave, Auto, Sound activation
5. DMX 512 control channel: 16CH
6. Pan: 540degree (16bit)
7. Tilt: 270degree (16bit)
8. Color Wheel 1: 5 colors + open, with rainbow effect
Color Wheel 2: 7 colors + open, with rainbow effect
9. Gobo Wheel 1: 4 rotating gobo + open
Gobo Wheel 2: 5 fixed gobo (with gobo shaking)+ open
10. Functions: Strobe(1-13times/s), Focus, Prism, Iris etc.
11. Size: 510*450*780mm
12. G. W: 39kg
Feature
This product uses double brake linear dimmer, 1-10times per second, variable speed strobe,
A color plate A, 7 colors+white rainbow effect and color film overlap,
A color plate B, 5 colors+white, fog effect can be transformed into soft concentrating effect,
A fixed pattern plate, 4 charts+white Gobo rotation
Two+way variable-speed control, effcient Hall reset device
An adjustable aperture/linear focusing, a prism/prism rotation,
The maximum horizontal rotation angle of 450° , the maximum vertical rotation angle270° ,
