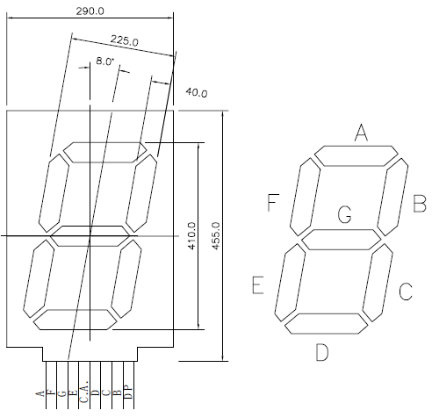

Outline Dimensions:
455.00X290.00mm
Digit Height:
16 Inch(410mm)
Emitting Color:
Single Color
Dp Number:
1PC
Digit Number:
1 Digit
Chip Matrial:
4-Element
Tube Chip Color:
Single Color
Scanning Mode:
Static Scan
Display Type:
Segment LED Display
Application:
Meters and Instruments
Certification:
Reach
Display Function:
Numbers and Some Alphabets
Product Description
Features Ø 410mm (16 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliant
Available options
Ø Alternative emitting luminosity: Standard or high brightness version Ø Alternative emitted color Ø Alternative segment color Ø Alternative font Ø Common Cathode is available Ø Cropped terminal pins Selection Guide (Ta = 25 °C )
Single Digit 7 Segment LED Display, Digit Height: 410.00mm(16inch), External Dimensions: 455.00x290.00mm (LxWmm)
Part No.
Chip
IV@IF=120mA
Common Cathode

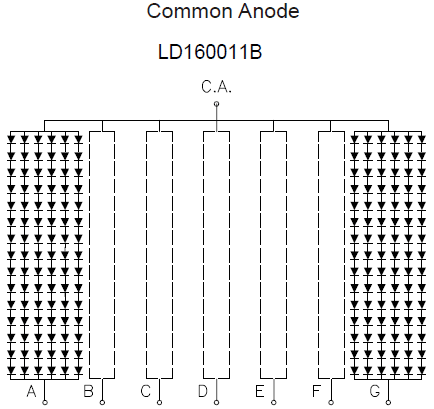

Common Anode
Material
Color
WLD
One Seg
Min.
Typ.
LD160011AR
LD160011BR
GaAlAs
Super Red
640
540
675
LD160011AD
LD160011BD
GaAlAs
Hi-Red
640
1215
1688
LD160011AO
LD160011BO
GaAsP
Orange
625
472.5
607.5
LD160011AY
LD160011BY
GaAsP
Yellow
588
540
675
LD160011AG
LD160011BG
GaP
Green
568
472.5
607.5
LD160011AUR
LD160011BUR
AlGaInP
Ultra Red
640
2025
3038
LD160011AUO
LD160011BUO
AlGaInP
Ultra Orange
625
3037.5
4050
LD160011AUA
LD160011BUA
AlGaInP
Ultra Amber
605
2025
3038
LD160011AUY
LD160011BUY
AlGaInP
Ultra Yellow
595
2025
3038
LD160011AUG
LD160011BUG
AlGaInP
Ultra Green
573
2025
3038
LD160011APG
LD160011BPG
InGaN
Pure Green
525
8100
20250
LD160011AUB
LD160011BUB
InGaN
Ultra Blue
470
2025
3038
LD160011AUW
LD160011BUW
SMD
Ultra White
\
6750
8100
Unit:
\
\
\
nm
mcd
mcd
