| Prod Model: |
TPG-D604-W15S2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Square LED Downlight |
| Dimension: |
200*200*18mm |
| Cutout Size: |
180*180mm |
| LED: |
Samsung 5630 SMD/Tanwan SMD 5630 SMD |
| Luminous Flux: |
950lm±80lm |
| CRI: |
>80ra |
| Pf: |
>0.9 |
| Size: |
6 Inch, 8 Inch, 10 Inch, 12 Inch Optional |
| Wattage: |
15W, 18W, 20W Optional |
| Beam Angle: |
120 Degree |
| Certification: |
RoHS |
| IP Rating: |
IP44 |
| Color Temperature: |
Warm White |
| Installation: |
Embedded |
| Application: |
Commercial Lighting |
| Lamp Body Material: |
Die-Casting Aluminum |
| Source Number: |
Samsung 5630 SMD |
| Lamp Installation: |
Recessed |
Product Description

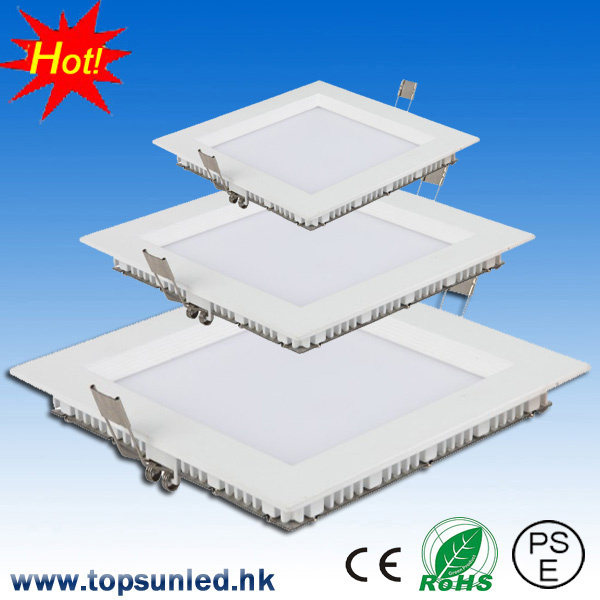

15W ultra-thin recessed LED ceiling lights 6 inch
Topsun is a professional manufacturer of LED Downlights, there are 6 series LED Downlights for optional with different size, CE RoHS PSE Approval. 3 Years Warranty.
For more details about downlights, please feel free to contact me or send an inquiry directly, will try my best to reply you in time. Thank you!
Contact person: Sunny Wei
Mobile: +86 13723577812
Website: www.topsunled.hk
|
Description |
Dimension |
Power |
|
LED Downlight |
D01 Series --- 3'' 4'' 5'' 6'' 8'' Aluminum Shell SMD LED Downlight, D02 Series --- 3'' 4'' 5'' 6'' 8'' Plastic shell SMD LED Downlight, D03 Series --- 4'' 5'' 8'' 12'' Round ultra-thin SMD LED Downlight. D04 Series --- 6'' 8'' 12'' Square shape ultra-thin SMD LED Downlight. D05 Series --- 2.5'' 3'' 3.5'' 4'' 5'' 6'' 8'' Round ultra-thin SMD LED Downlight . D06 Series --- 2.5'' 3'' 4'' Aluminum Shell COB LED Downlight . |
5W ~ 30W |
|
Voltage |
AC85-265V 50/60Hz ; |
|
Led type |
SMD5630, SMD2835 |
|
Led chip |
Samsung LED, Epistar LED; |
|
Color temp |
2800-3500k(WW); 4000-4500k(NW); 5500-6500k(CW); |
|
Shell color |
White |
|
Efficiency |
≥90%,Color lndex:80, PF:>0.92,Class C for Harmonic Current Emition; |
|
Lifetime |
50.000hours; |
|
Lumin Drop |
1,000HRS UNDER 2%,10,000HRS UNDER 10%, 40,000HRS UNDER 30%,While Average Using under,12 hours per day; |
|
Certificate |
CE, LVD, EMC, ROHS,PSE |
|
Model NO. |
LED |
Dimension |
Cutout Size |
Watt |
|
TPG-D604 |
Samsung LED
SMD5630 |
D200mm*D200mm*H18mm |
φ180mm*180mm |
15W |
|
TPG-D804 |
D240mm*D240mm*H18mm |
φ220mm*220mm |
18W |
|
TPG-D1204 |
D300mm*D300mm*H18mm |
φ275mm*275mm |
20W |
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
