Prod Model: |
PL-DN-15*1W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
D168mm*H105mm |
Cutout Size: |
145mm |
LEDs: |
15PCS |
Chip: |
Bridgelux |
Light Source: |
LED |
Installation: |
Embedded |
Material: |
Aluminum |
Application: |
Engineering |
Lamp Installation: |
Plug Lamp |
Source Number: |
Single Plug |
Product Description

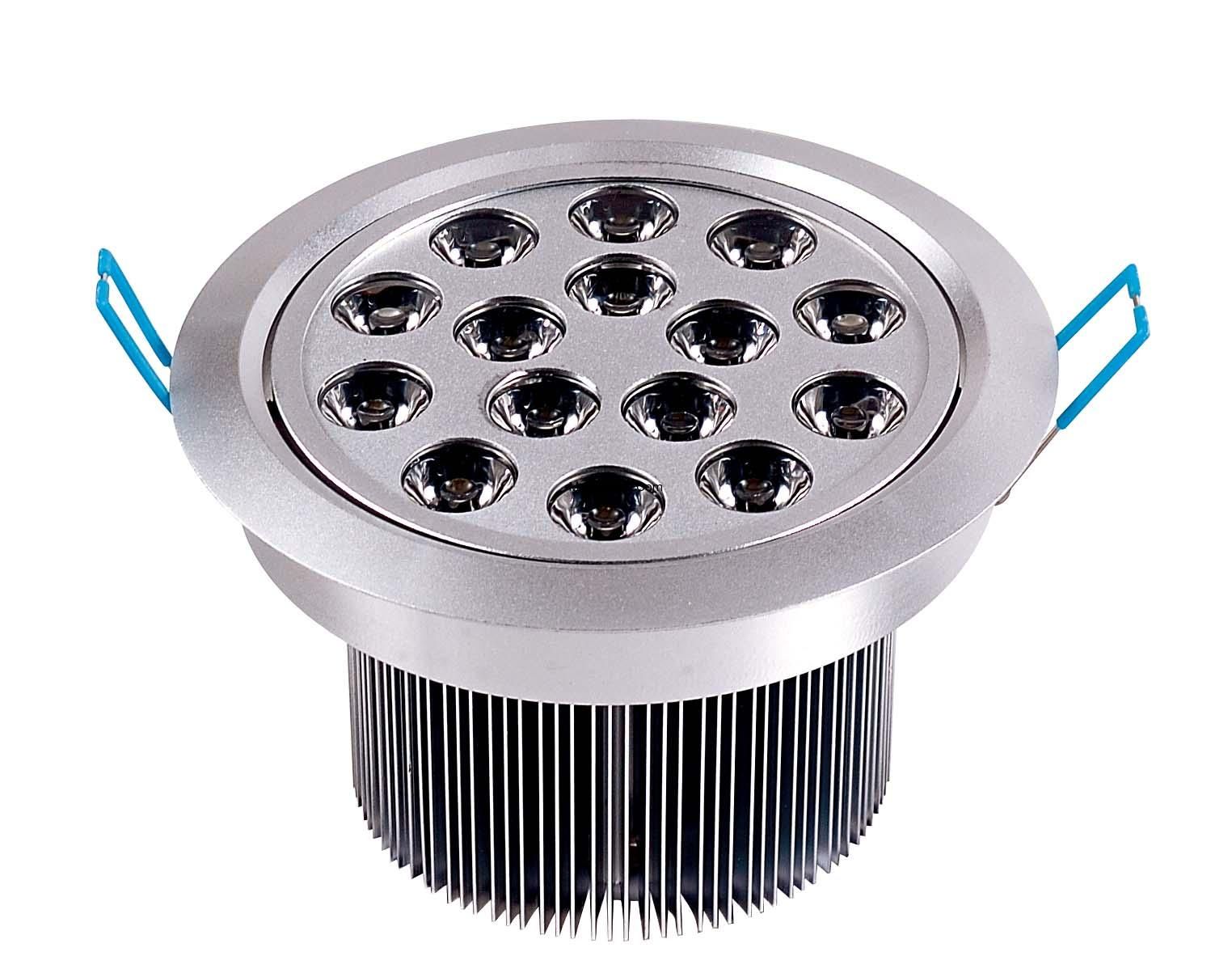

15W Round LED Recessed Down Light / Ceiling Light
Features:
. Size 168mm x (H)105mm. Cutout size 145mm.
. With 15 degree or 30 degree lens
. With 15pcs 1W USA Bridgelux leds
. White Color 5500-6000K, 1350lm, Warm White Color 3000-3500K, 1275lm
. 85V-265V AC. Driver included
. Warm white or white available
. USA Bridgelux led 80lm/W
. Lifespan 50, 000 hours(5 years)
. No flickering
. No RF interference
. No UV radiation
. CE & RoHS compliant
. Proprietary design for excellent thermal management
. Recessed mounted for easy installation
Applications:
. Used in ceiling, cabinet and so on
Specifications: |
Part No.: |
PL-DN-15*1W |
Size: |
Φ168*H105mm |
Light source |
High power LED |
LED Rated luminous flux |
1500LM |
Colour tempature |
2800-7000K |
Lamp Angle |
15/30/60/120 deg |
Voltage: |
AC85-265V/350mA |
Power |
15*1W |
Working Temperature |
0----65 selsius degree |
Environmental Temperature |
-10-55 selsius degree |
