| Prod Model: |
BL-PL-R10-15W |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Factor: |
0.9 |
| LED Chip: |
SMD |
| Life Span: |
50, 000 Hours |
| Warranty: |
3 Years |
| CRI: |
Ra80 |
| Certificate: |
CE, RoHS, C-Tick |
| Light Source: |
LED |
| Appearance: |
Round |
| Type: |
Ceiling |
| Certification: |
CUL |
| Housing Material: |
Acrylic |
| Base Material: |
Metal |
| Voltage: |
85V-265V |
| Dimmable: |
With Dimmable |
| Emitting Color: |
Ww Nw Cw |
| Beam Angle: |
150 Degree |
Product Description

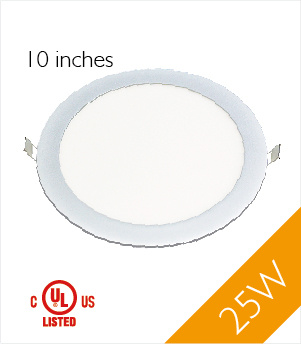

LED round panel lights:
1) Power Factor: >0.9
2) Life Span: 50, 000 hours
3) Warranty: 3 years
4) Certification: CE, RoHS, C-tick
5) A transformer of input 80~265 AC/ 24V DC output is sold as a whole set.
Characteristic
ITEM NUMBER: BL-PL-R8-15W
INPUT VOLTAGE: 12~24V DC
LED CHIP: SMD 3528
POWER: 15.0W
SIZE: Φ 300mm x 16(H)mm
WEIGHT: 0.75kg
COLOR TEMPERATURE: 2, 700~3, 500K ( Warm White ); 5, 000~7, 000K ( Cool White )
LUMINOUS FLUX: 1200lm
LIGHTING ANGLE: 150 degree
LIFE SPAN: >50000 HOURS
OPERATING TEMPERATURE: -20 centigrade~50 centigrade
STORAGE TEMPERATURE: -30 centigrade~70 centigrade
OPERATING HUMIDITY: 10%~80%
STORAGE HUMIDITY: 10%~80%
IP GRADE: IP44
INSTALLATION WAYS: EMBEDDED, SUSPENDING, WALL HUNG
Package:
Product Size: 300(Dia)x 16(H) mm
Box Size: 401(L)x 350(W)x 55(H) mm
Box: 1PC
Carton Size: 720(L)x 416(W)x 300(H) mm
Carton: 10PCS
Weight: 19KG
|
Item Number |
BL-PL-R10-15W |
|
Voltage |
85~145V AC
190~265V AC |
|
Lumens |
WW: 1, 050lm
CW: 1, 200lm |
|
Wattage |
15.0W |
|
Dimension |
300L x 300W x 16H mm |
|
CCT |
2500-3500K/ 5500-7000K |
|
Weight |
2, 700g |
|
CRI |
Ra> 80 |
|
Beam Angle |
120 degree |
