North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:
15W
Input Voltage:
DC12V
Source Type:
Epistar 1W*15PCS
Luminous Flux:
1650lm
Luminous Efficiency:
110lm/W
Mounting Height:
3-4m
Model:
Sensor Function
Solar Panel:
25 Years
Battery:
Lithium Battery(6.4V/12ah)
Dimming Mode:
Light Control with Sensors
Light Source:
LED Lamp
Lamp Body Material:
Aluminum Alloy
Light Type:
Solar
Usage:
High Speed Road
IP Rating:
IP65
Certification:
FCC
With Light Source:
With Light Source
Color Temperature:
6500-7000k(Cw)
Power:
15W
Illumination Time:
20 Hours
Cell Type:
Lithium Battery
Charging Time (',H):
7 Hours
Voltage:
DC12V
Product Description

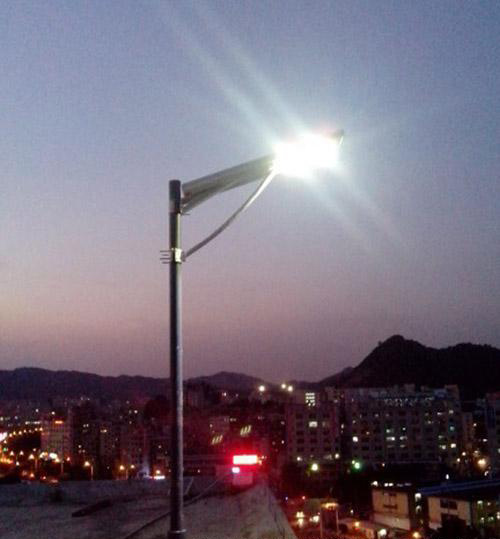

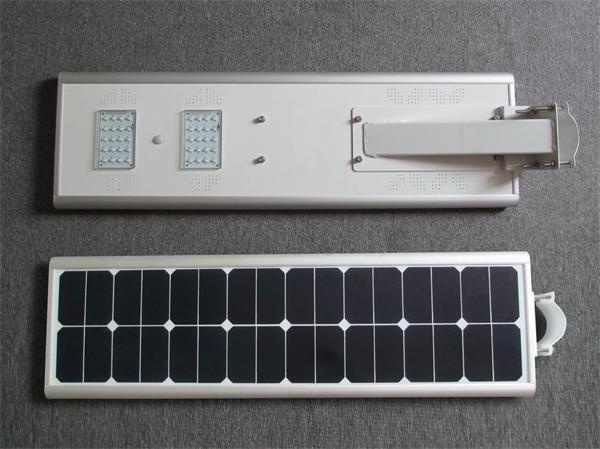

Integrated Solar Light for 15W LED Street Light (with Motion Sensor)
The integrated solar LED street light is an intelligent outdoor lighting system that provides powerful lighting into an all-in-one compact package and is easy to install. During the day the highly efficient solar panel collects energy from the sun and stores that power in the advanced lithium battery. At night the powerful LED's automatically turn on providing ambient light for all to enjoy.
Features of Integrated Solar LED Light
1. Easy to install, no cable needed. 2. Use lithium battery to prolong product lifetime and protect environment, 3. Light output can be adjusted automatically by a built-in motion sensor, 4. Modularity design, easy to assemble and maintain, 5. Compact volume and light weight design saves freight cost and installation cost, 6. Rust-proof, Dust-proof and Waterproof, 7. Safety and reliability. 8. Warranty: 3 years 9. 5W-80W Integrated solar street light can be customized.
Outstanding Feature Lighting Modes
When motion of the Integrated solar street light is detected the super bright LED's increase in brightness to provide an abundance of extra lighting for anyone in the area. After 30 seconds or when motion is no longer detected, the light drops down in brightness to conserve power. This intelligent feature allows the Solar LED street light to save power when no one is in range or utilizing the lamp, meaning a much longer run time than you would expect from a similar size solar lighting. The motion sensor is the practical way to enjoy brighter than normal light when extra lighting is needed.
Applications
Street,residential,industrial zone road,square and park,school,campus,farm,villas,gardens and so on.
Installation
It is very easy to install the integrated solar LED street light, just to lay the foundation of a straight bar, then it can be installed, usually two workers can complete the installation only with a wrench in 5-8 minutes,need not use heavy equipment or tools,nor technical support or engineers guidance.
Solar panel
Max power
18V45W (High efficiency imported solar cell)
Life time
25 years
Battery
Type
lithium battery 18AH
Life time
2 years
LED Light (with sensor)
Max power
12V 15W
led chip brand
Epistar from Taiwan with high brightness
lumen (LM)
1650lm
Life time
50000hours
Viewing Angle
120°
Charge time
by sun
6-10hours
Discharge time
full power
more than 12hours
half power
more than 24hours
working Temperature
range( °C )
-30 °C ~+50 °C
colour temperature
range(k)
6500-7000k
mounting height
range (m)
5-6m
space between light
range (m)
18-20m
Lamps material of main
aluminium alloy
Certificate
CE / ROHS / IP65
warranty period
2years
Packing & Weight
product size
515*320*52mm
product weight
5.8kg
packing box
neutral
corton size
560 * W570 * H410mm
Q'ty/ctn
1set/ctn
GW.for carton
6.8kg
Packs Containers
20GP
800pcs
40GP
1600pcs
