Luminous Flux:
20m/186700lux 40m/48175lux 60m/20855lux
Prism:
16-Facet Prism and 8-Facet Prism
Focus:
Linear Focus
Dimmer:
0-100% Linear Dimmer
Beam Angle:
0-3°
Spot Angle:
3-20°
Wash Angle:
20-60°
Net.W:
21.5kgs
Application:
Stage, Disco, DJ Lighting, Night Club, Bar
Light Source:
Gas Discharge Bulb
Material:
Aluminum Alloy
Emitting Color:
Changeable
Strobe:
Combined Type Double Strobe
IP Rating:
IP20
Certification:
RoHS
Control Channel:
16/20CH
Control Mode:
DMX, Master Slave, Sound Active, Auto
Voltage:
AC90-240V 50/60Hz
Product Description

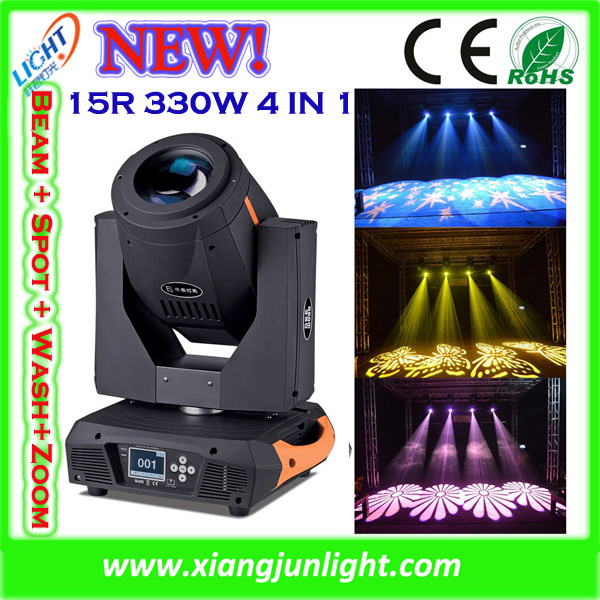

15R Sharpy 330W beam, spot and wash 3-in-1 linear zoom
Original OSRAM SIRIUS HRI330W/YODN 15R 330W
Features: With Photoelectric reset system,auto reset for mis-operation Motor: 12pcs silent motors + 2pcs 3-phase motors ,16Bit drivingOriginal Sunon fans,noise below 38FB Double track design,no stuck for color wheel Bent design for colour wheel which decrease the lamp temperature and prolong lifetime With Voltage stabilizer inside, can work with unstable input volt. Lens: High quality optical lens, double film coated. Protection: Over temperature protection, Over volt protection and Over current protection
Accessaries: quick lock 2pcs clamp/hook: 2pcs safety rope: 1pc signal wire: 1pc power wire: 1pc user manual:1pc Many different power plugs for different countries and resigons
Product:
Lighting Effects:
Production:
DMX Channel
Standard
EXP Model
Channel
Value
Function
CH1
CH1
Colour
0
WHITE
8
RED
16
ORANGE
24
AQUAMARINE
32
GREEN
40
LIGHT GREEN
48
LAVENDER
56
PINK
64
WHITE + RED
72
RED + ORANGE
80
ORANGE + AQUAMARINE
88
AQUAMARINE + GREEN
96
GREEN + LIGHT GREEN
104
LIGHT GREEN + LAVENDER
112
LAVENDER + PINK
120
PINK + YELLOW
128
FAST ROTATION
191
SLOW ROTATION
255
FAST ROTATION
CH2
CH2
Strobe
0-3
CLOSED
4-102
SLOW STROBE
103
FAST STROBE
104-107
OPEN
108
SLOW PULSATION
109-207
FAST PULSATION
208-212
OPEN
213-225
RANDOM SLOW STROBE
226-238
RANDOM MEDIUM STROBE
239-251
RANDOM FAST STROBE
252-255
OPEN
CH3
CH3
Dimmer
0-255
0-100%
CH4
CH4
Static gobo
0
WHITE
5
GOBO 1
10
GOBO 2
15
GOBO 3
20
GOBO 4
25
GOBO 5
30
GOBO 6
35
GOBO 7
40
FAST ROTATION
129
SLOW ROTATION
100-134
STOP
135
SLOW ROTATION
220
FAST ROTATION
221
GOBO 1 SHAKE, SLOW SPEED
225
GOBO 1 SHAKE, FAST SPEED
226
GOBO 2 SHAKE, SLOW SPEED
230
GOBO 2 SHAKE, FAST SPEED
251
GOBO 9 SHAKE, SLOW SPEED
255
GOBO 9 SHAKE, FAST SPEED
CH5
CH5
Rotating gobo
0-127
POSITION
128-189
FAST ROTATION
190
SLOW ROTATION
191-192
STOP
193-254
SLOW ROTATION
255
FAST ROTATION
CH6
CH6
Rotating-Gobo
0-255
From slow to fast
Rotate
CH7
CH7
Frost
0-255
Frost
CH8
CH8
Prism 1
128-255
PRISM INSERTED
0-127
PRISM EXCLUDED
CH9
CH9
Prism 1 Rotation
0-127
POSITION
128
FAST ROTATION
190
SLOW ROTATION
191-192
STOP
193
SLOW ROTATION
255
FAST ROTATION
CH10
CH10
Prism 2
128-255
PRISM INSERTED
0-127
PRISM EXCLUDED
CH11
CH11
Prism 2 Rotation
0-127
POSITION
128
FAST ROTATION
190
SLOW ROTATION
191-192
STOP
193
SLOW ROTATION
255
FAST ROTATION
CH12
CH12
zoom
0-255
linear zoom
CH13
CH13
Focus
0-255
0-100% linear focus
CH14
CH14
Pan
0-255
Pan
CH15
CH15
Pan fine
0-255
Pan fine
CH16
CH16
Tilt
0-255
Tilt
CH17
CH17
Tilt fine
0-255
Tilt fine
CH18
CH18
Lamp/reset
0-129
Non
130-139
LAMP ON
140-149
PAN/TILT RESET
160-169
EFFECTS RESET
200-209
COMPLETE RESET
230-255
LAMP OFF
CH19
pan/tile speed
0-255
pan/tile speed
CH20
Colour wheel
0-255
Colour wheel speed
CH21
Funtion
0-255
Dimmer-Frost-Prism speed
CH22
Gobo wheel
0-255
Gobo wheel speed
