| Prod Model: |
(LED-M150S) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Body: |
Black, Plastic |
| Prism: |
3-Facet Prism |
| Beam Angle: |
16degree |
| Effect: |
Spot, Wash, Prism |
| Feature: |
Uniform and Pure Spot |
| Using Place: |
Professional Stage, Theatre, Disco, etc |
| N.W.: |
16kgs |
| G.W.: |
18.2kgs |
| Dimensions: |
407X272X554mm |
| Packing Size: |
440*440*540mm |
| Voltage: |
220V |
| Light Source: |
LED |
| Material: |
Aluminum Alloy |
| IP Rating: |
IP20 |
| Strobe: |
Adjustable Speed Strobe |
| Certification: |
RoHS |
| Emitting Color: |
8 Main Colors+Open with The Rainbow Effect |
| Control Mode: |
DMX512, Master/Slave, Sound, Stand-Alone |
| Control Channel: |
17 |

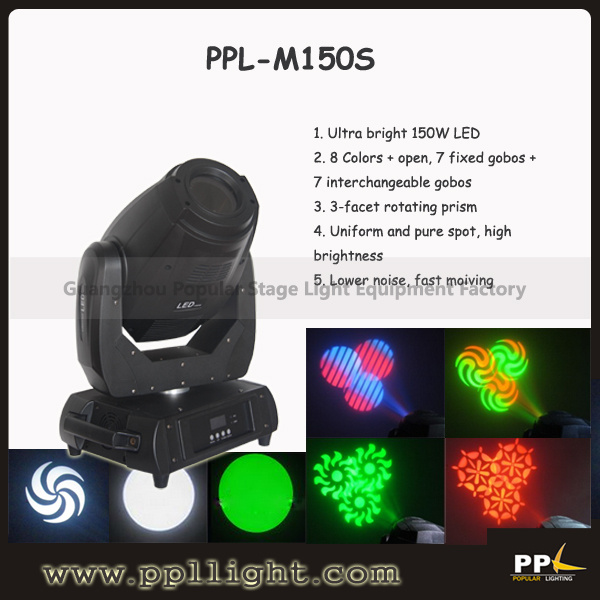

Product Description
Advantage:
1. 150W ultra bright led
2. Uniform and pure spot, perfect beam and spot effect
3. Small size, lower noise, and fast moving. Now it can take place of the tranditional 575W spot light
4. Facotry supply, wholesale price
Specification:
Voltage: Auto 100V-240V, 50/60Hz
Power consumptions: 280w
Profile LED Source: Ultra bright 150W LED
2 Gobos wheels: Fixed gobo wheel & Rotating gobo wheel (7 inter changeable quick clip gobos+open)
Color wheel: 8 main colors+open with the rainbow effect
Focus: Electronic Focus
Prism: 3 Face Rotating Prism
Lris: Variable motorized iris(2-100%)
Soft/atomization effect: Independent, 0-100% linear regulator
DMX Connectors: 3 pin XLR connector in and out
Center Beam Angle: 16°
Super low noise fans
Program inside, Adjustable flash frequency
International universal control signal: DMX512
Channel: 17 DMX channels
Digital display
. Control mode: . DMX, Sound, Auto, Slave/Master
Product size: 407× 272× 554mm;
Package size: 440x440x510mm
N. W: 16Kg; G. W: 18.2 Kg
| CH MODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| 11CH | pan | Pan Fine | Tilt | Tilt fine | Pan/Tilt speed | Dimmer | strobe | Focus | Colour | Colour Offset | Gobo 1 |
| 12 | 13 | 14 | 15 | 16 | 17 |
|
|
|
|
|
| Gobo1 Shake | Gobo 1 Rot. | Gobo 2 | Prism | Prism.rot | Control |
|
|
|
|
|
