| Prod Model: |
CL-MH-2R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
132W 2r Beam Moving Head Light |
| Channel: |
10/11/13 DMX 512 Control Channels |
| Lamp: |
Yodn Msd120 2r |
| Lamp Wattage: |
230W |
| Lumen Output: |
9,000 Lm |
| Colour Temperature: |
8,000k±300k |
| Average Lamp Life: |
1500 Hrs |
| Color System: |
Color Wheel with 13 Colors + Open |
| Gobo System: |
Gobo Wheel 1 with 14 Fixed Gobos + Open |
| Moving Body: |
Travel: Pan = 540° Tilt = 270° |
| IP Rating: |
IP20 |
| Strobe: |
Electronic Strobe |
| Certification: |
RoHS |
| Light Source: |
LED |
| Control Mode: |
DMX512, Master/Slave, Automatic Run, Sound-Active |
| Control Channel: |
10/11/13CH |
| Voltage: |
AC100-240V 50-60Hz |
Product Description

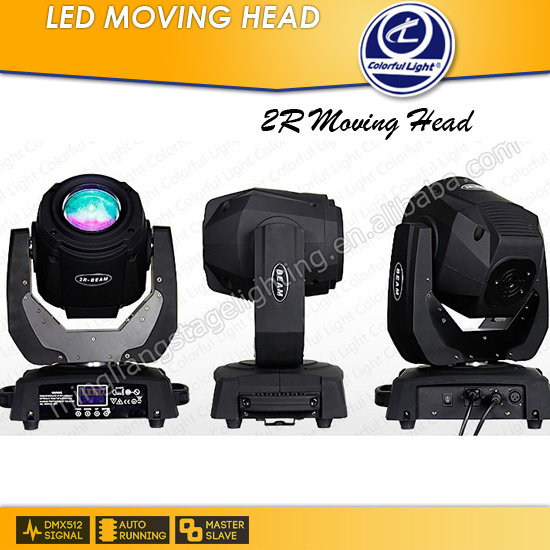

132w Moving Head 2R Beam Moving Head Light
POWER SUPPLIES:
Input Voltage: AC100-240V 50-60Hz
Power Consumption: 230W
LAMP SOURCE
Professional Stage Light Lamp Source
- Type: YODN MSD120 2R
- Lamp Wattage: 230W
- Lumen Output: 9, 000 Lm
- Colour temperature: 8, 000K± 300K
- Average Lamp Life: 1500 hrs
COLOR SYSTEM: Color wheel with 13 colors + open
GOBO SYSTEM: Gobo wheel 1 with 14 fixed gobos + open
EFFECTS SECTION:
Electronic Focus
High speed shake effect
8-facet rotating prism
Frost filter
Mechanical shutter and adjustable speed strobe effect
CONTROL AND PROGRAMMING:
10/11/13 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Display: LCD Display
Pan/Tilt Resolution: 16 bit
DMX signal connection: 3 pole XLR input and output
BODY:
Aluminium structure with die-cast plastic cover
Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation and maintenance
MOVING BODY:
Travel: PAN = 540° TILT = 270°
CONTROL MODE:
DMX512/Master-slave/Auto
COOLING SYSTEM:
Convective Fan Inside
