North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:
90~305V
Frequency:
50/60Hz
Lamp Body Material:
Aluminum
IP Rating:
IP54
Certification:
VDE
Color Temperature:
2700-6000
Color:
Optional
Power:
120W,150W,200W
Usage:
Workshop, Factory, Warehouse, Highway Toll Station
Beam Angle:
110
Product Description

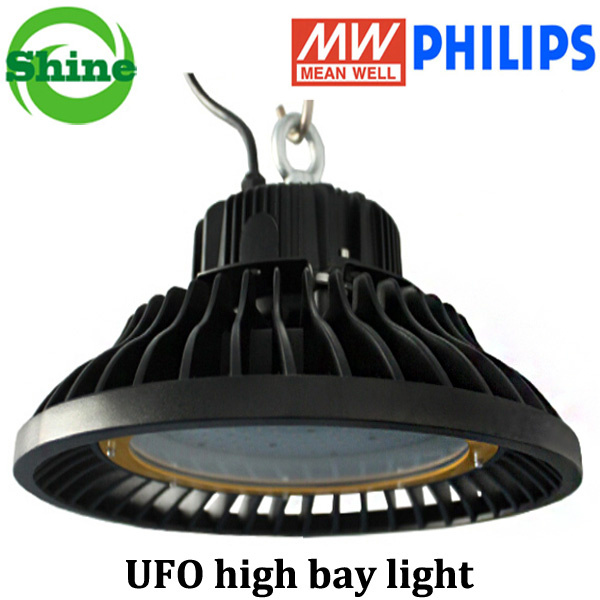

LED HIGH BAY LIGHT HLL015 FEATURES: 1. Unique designed UFO shape , lighter and smaller
2. Nichia 3030 & Philips 3030 , Ra> 80
3. Meanwell led driver
4. Glass cover or PC convex cover
5. Wide aluminum plate design, heat dissipation fast and evenly
6. Ideal mounting height: 8-15 m
7. Installation: Rack mounting & Hook hanging
8. Working temperature: -20 ° C ~ + 50 ° C
9. IP 65 protection level Technical data
Technical data
Model
LED-HLL015A
size
Ø366*H194 mm
Category
LED high bay light
Package Size
460*460*270mm
Power
120W/150W
Net Weight
6.8kgs
Input Voltage
AC90-305V
Gross weight
8.0kgs
frequency
50/60HZ
Material
Aluminum, tempered glass
Power Fator
>0.95
Available color
Gray/customized
light source
Philips 3030
Light degradation rate
25000h ≤ 30%
LED QTY
168PCS
Rated life
50000h
Efficiency(lm/w)
>120lm/w
Working temperature
-40~+50°C
Color temperature (k)
2700~7000
IP grade
IP65
Color rendering index
Ra>85
Warranty
7 Years
Technical data
Model
LED-HLL015B
size
Ø366*H194 mm
Category
LED high bay light
Package Size
460*460*270mm
Power
200W
Net Weight
6.8kgs
Input Voltage
AC90-305V
Gross weight
8.0kgs
frequency
50/60HZ
Material
Aluminum, tempered glass
Power Fator
>0.95
Available color
Gray/customized
light source
Philips 3030
Light degradation rate
25000h ≤ 30%
LED QTY
224PCS
Rated life
50000h
Efficiency(lm/w)
>120lm/w
Working temperature
-40~+50°C
Color temperature (k)
2700~7000
IP grade
IP65
Color rendering index
Ra>85
Warranty
7 Years
Application: Workshop,factory,warehouse,highway toll station, Gas station, Supermarket, exhibition,gym etc.
Packaging & Shipping Packaging: carton for strong protection Shipping : 3-5 for samples, 5-15 for all items, DHL UPS EMS others are available.
Shine Lighting Technology Co., Ltd. is a high-tech enterprise in Changzhou city, Jiangsu province. Our company has a number of automated production lines, testing lines and testing equipments. We mainly produce two energy-efficient lighting products: LED lamp, induction lamp and matching lighting fixtures. These products are widely used in popular applications such as industrial lighting, commercial lighting, ground lighting, street and road lighting, city landscape lighting, office lighting, household lighting, plant grow lighting, fishing vessel lighting, aquarium lighting, etc.
Shine Lighting is a rapidly growing and innovative company, it recognizes the importance of scientific research, technological innovation, new product development, continuous innovation of products, continuous improvement of production capacity and overall system competitiveness; The company has a strong and highly skilled technical team that enables it to have its own research and development center, that allows for structure, electronic, and light source development as a whole, producing several dozens of national patent innovations annual. The company also acquired quality management system ISO9001-2008 certification by SGS; Our products meet the national GB standards, European IEC standards, ANSI standards and Taiwan CNS standard. Our induction lamps and LED lamps have passed CCC, CE, FCC, RoHS etc. certifications.
"Customer service, service market, service society" is the firm's business philosophy, SHINE Lighting willing to work with each and every concern and support for friends and light the growth of low carbon lighting, energy saving and emission reduction to continuously working together and win-win situation together to create a bright future.
