LED Source:
12X1watt Single Color LED
LED Color:
Cw/Ww/Nw/R/G/B/Yellow Is Avaliable
Beam Angle:
8/15/25/30/45/60/90 Degree
Driver:
Built-in Constant Current Output
Working Temperature:
-20-+40 Centigrade
Warranty:
2 Years
Color Temperature:
Cool White
Lamp Body Material:
Aluminum
No. Of Light Source:
10-15PCS
IP Rating:
IP67
Application:
plaza
Certification:
RoHS
Input Voltage:
24v
Light Source:
With Light Source
LED Chips Brand:
Bridgelux
Power:
12W
Product Description

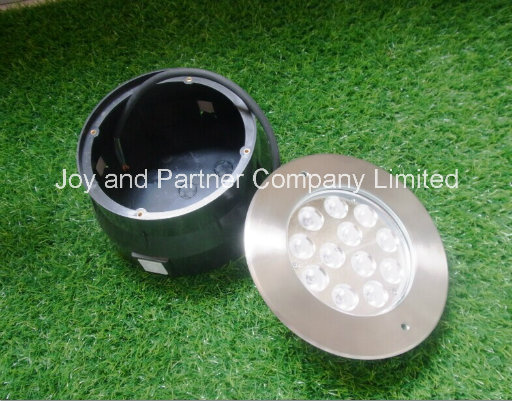

IP67 LED Buried Light,Stainless Steel Inground Garden Light,LED Uplight,Lawn Light,Bridgelux LED Underground Light Specification:

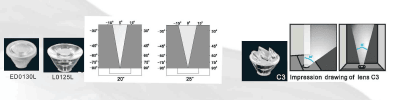

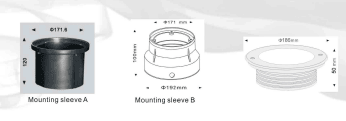

1.Housing:6063# pure aluminum grey powder coated.T=60-80μm.Adhesion of ISO class 1/ASTM class 4B; 2.Front ring:Stainless steel SUS304 or SUS316; 3.Body size:as pictures 4.Waterproof seal:Molding shaped double silicon seal; 5.Glass:Step tempered glass.T=8MM; 6.Loading capacity:Exert force area of Φ10=530kgs.Φ30=940kgs.Φ60=1290kgs; 7.Lens:Optical lens,efficiency ≥85% 8.Cable gland:IP-68 PG-9 PVC; 9.Gasket:Silicon rubber; 10.Mounting sleeve: PVC
More information:
The Series Light as following:
Item Number
LED Source
LED Color
Beam Angle
Input Voltage
JP-948121
12x1W single color
cw/ww/nw/r/g/b
8/15/25/30/45/60/90
24VDC
JP-948122
12x3W single color
cw/ww/nw/r/g/b
8/15/25/30/45/60/90
24VDC
JP-948123
12x1W RGB
RGB,4R,4G,4B
8/15/25/30/45/60/90
24VDC
JP-948124
12x3W RGB
RGB,4R,4G,4B
8/15/25/30/45/60/90
24VDC
JP-948126
12x3W RGB 3in1
Tricolor
8/15/25/30/45/60/90
24VDC
