Prod Model: |
MY-SD024042Q-02 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Waterproof Standard: |
IP68 |
Emitting Color: |
True Color |
Application: |
Swimming Pool |

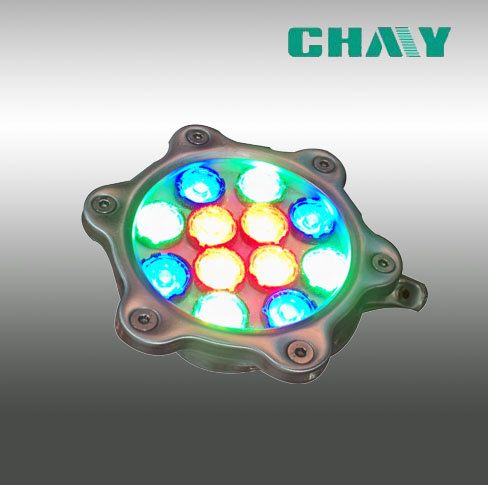

Product Description
Source chip: High brightness LED (imported from USA LUMILEDS / CREE, Germany OSRAM and Taiwan JINGYUAN with original packaging)
Source power: 12W (optional)
Power efficiency: 85%
Power factor: 95%
LED quantity: 12*1w (optional)
Wavelength: R(620-630nm), G(520-530nm), B(465-475nm)
Lighting Angle: 15° , 30° , 45° , 60° , 90° , 120° (optional)
IP: IP68
Control configuration: Internal controlled by SCM, adopting signal wire to realize synchronous control between luminaires; External control by 485 signal
Color range: 16777216(24Bit) additive RGB colors; 16700, 000 RGB complex true colors; Realize synchronization, chase, moving water, gradual change etc.
Input voltage: DC12V-24V/AC12V-24V
Luminaire color: Silver grey, transparent and tempering glass
Wire: Two cores wire(Temperature resistant, cold-resistant, aging-resistant and uvioresistant UL-94V0)
Material: 304 stainless steel with good quality, anodizing on the surface, durable
Working temp: -30° C-50° C
LED lifespan: 50000hrs
Operating environment temp: -30-60
Operating environment humidity: 99%RH
No. |
Type |
Name |
Dimension |
Voltage |
Power |
Color |
LED |
Power of 1 LED |
1 |
MY-SD024042Q-02 |
Underwater light |
φ 150 |
DC: 24V |
42 |
True color |
12 |
3 |
2 |
MY-SD024015Q-12 |
Underwater light |
φ 150 |
AC: 24V |
15 |
Rainbow colors |
12 |
1 |
3 |
MY-SD024015R-02 |
Underwater light |
φ 150 |
DC: 24V |
15 |
Red |
12 |
1 |
4 |
MY-SD024015G-02 |
Underwater light |
φ 150 |
DC: 24V |
15 |
Green |
12 |
1 |
5 |
MY-SD024015B-02 |
Underwater light |
φ 150 |
DC: 24V |
15 |
Blue |
12 |
1 |
6 |
MY-SD024015Y-02 |
Underwater light |
φ 150 |
DC: 24V |
15 |
Yellow |
12 |
1 |
7 |
MY-SD024015W-02 |
Underwater light |
φ 150 |
DC: 24V |
15 |
White |
12 |
1 |
