Prod Model: |
GM-HB120W-S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
1120W LED High Bay Light IP65 with Meanwell Driver |
Model No.: |
GM-Hb120W-S |
LED Chip: |
Samsung SMD5630 |
Watts: |
120W |
LED Q'ty: |
120PCS 1W High Power LED |
CRI: |
80 |
PF: |
0.98 |
Color Cct: |
Ww(2700-3500k)Nw(4000-5000k)Cw(6000-6500k) |
Driver: |
Meanwell or GM Waterproof IP67 Driver |
Warranty: |
3-5 Years |
Color Temperature: |
Cool White |
Lamp Body Material: |
Aluminum Alloy |
IP Rating: |
IP65 |
Certification: |
RoHS |
Color: |
Balck |
Product Description

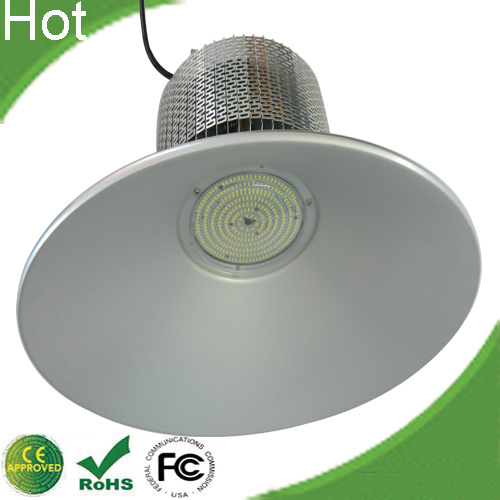

120W LED High Bay Light IP65 with meanwell driver led high bay light
Feature:
1. High density multi-chip LED Light Source
2. High LED efficiency of 90-100 lumens / watt
3. Efficient housing design results in 90% light utilisation
4. Simple, generous and light.
5. Excellent thermal management
6. Wide voltage input and constant current design.
7. Instant on/off, no UV /flicking
Specification:
Commodity: 120W LED High Bay Light IP65 with meanwell driver led high bay light
Input Voltage:AC85-265V
Frequency Range :50~60Hz
Power Factor (PF:)>0.98
Lamp's Efficiency (%): > 90%
Color:Warm white/cool white
Color Temperature: 2700-3500K/6000-6500K
Power :100W
Lumens:9000-10000LM
Color Index(CRI)Ra > 80
Working Temperature(-30 degree) ~( 45 degree)
Model | Size(mm) | LED Q'ty | Lumen | Watts | Voltage | Certificate |
GM-HB50W-A | Φ410*H410mm | 1PC 50W | 4500-5000 | 50W | AC85-265V | CE,RoHS,EMC,LVD |
GM-HB80W-A | Φ410*H410mm | 1PC 80W | 7000-8000 | 80W | AC85-265V | CE,RoHS,EMC,LVD |
GM-HB100W-A | Φ450*H460mm | 1PC 100W | 9000-10000 | 100W | AC85-265V | CE,RoHS,EMC,LVD |
GM-HB120W-A | Φ450*H510mm | 1PC 120W | 11000-12000 | 120W | CE,RoHS,EMC,LVD |
GM-HB150W-A | Φ500*H460mm | 3 pc 50W | 14000-15000 | 150w | AC85-265V | CE,RoHS,EMC,LVD |
GM-HB180W-A | Φ500*H485mm | 3 pc 60W | 17000-18000 | 180w | AC85-265V | CE,RoHS,EMC,LVD |
GM-HB200W-A (NEW, much smaller size) | AS below CAD | 1pc 200W | 19000-20000 | 200w | AC85-265V | CE,RoHS,EMC,LVD |
led high bay light Applications :
Working area including workshops, exhibition halls, gymnasiums, gas stations, toll stations, etc
Quality & Service:
·1.All our products have passed CE and RoHS test
·2.Every product requires aging test for 24 hours
·3.Each production procedure comply with ISO9000
·4.Your inquiry will be replied in the shortest time, no more than 24 hrs
·5.Any problem about the products will be handle at first-time
·6.Our delivery time is within 7 - 10 days on common quantity
·7.According to customer's price requirement, build a product of best ratio of function and price.
