Prod Model: |
SP-2020 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item Name: |

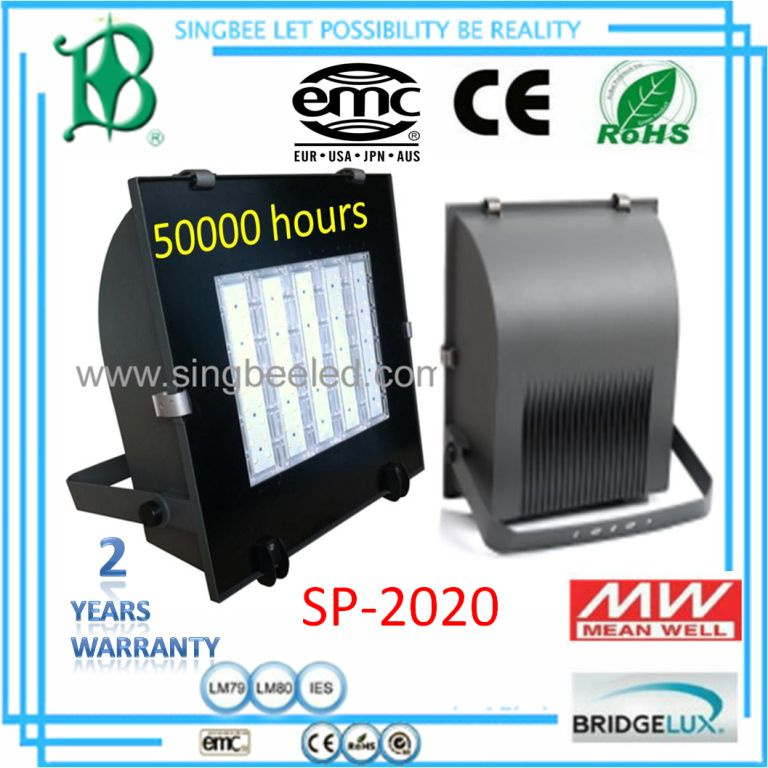

LED Flood Light |
Item No.: |
Sp-2020 |
Power Factor: |
More Than 0.90 |
Total Harmonic Distortion: |
Less Than 5% |
Working Environment Temperature: |
-20 ~+35 Celsius Degree |
Frequency Range: |
47-63Hz |
Junction Temperature: |
Below 75 Celsius Degree |
Chip: |
Epistar |
Driver: |
Meanwell |
Life: |
30, 000h |
IP Rating: |
IP65 |
Certification: |
CE, RoHS |
Product Description
1. Material:
Aluminum Alloy Housing
Strengthen glass
Processed Surfece and Spray Painted
2. Standard Specifications:
Beam Angle: 130° Cool-White: 5000~6000K 90~260V/AC
3. Optional Parts:
Beam Angle: 40° : 80° ; Warm White 3000~4000K 12/24V/DC
Above may be changed with standard part to fit the specification required for your unique project.
4. Application: Petrol Stations, Workshop, Factory, Markrts
Warranty: 2 Years
RoHS
|
CE
|
Safty Class11
|
IP 65 |
50Hz~60Hz
|
Protection Class 2
|
Recyclable
|
Item
NO. |
Input(V/AC) |
Power(w) |
Luminous flux(lm) |
Color temperature(K) |
Color rendering index(Ra) |
Size (mm) |
SP2020 |
90~260 |
120 |
10800 |
5000~6000 |
80 |
600*535*220 |
150 |
13500 |
