LED Source:
High Power 90W or 120W White LED
Colors:
7 Dichroic Colors
Gobos:
7 Rotation Gobos + 9 Static Gobos
Usage Range:
Disco, Nightclub, Theatre, Stage, etc
N.W.:
12kgs
Dimension:
203*300*437mm
Light Source:
LED
Emitting Color:
Changeable
Control Channel:
16CH
Strobe:
Electronic Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP20
Certification:
RoHS
Material:
PC Engineering Plastic
Voltage:
90V-240V

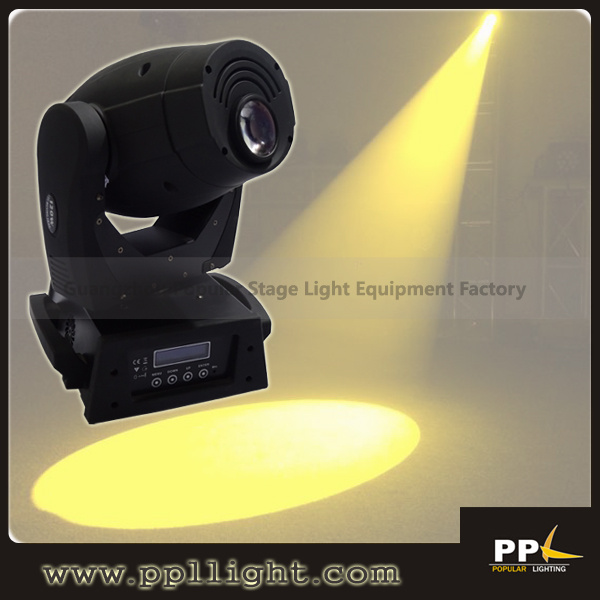

Product Description
Feature: 1. 90W/120W High brightness white leds 2. Rotating gobo wheel: 7gobos+open Fixed gobo wheel: 9gobos+open Color wheel: 7 colors +white 3. 50,000 hours lifespan and low power consumption
Specification: Products Name: 90/120W LED spot Item No.: LED-M0912 Voltage: AC-9-240V 50-60Hz Power Consumption: 240W Light Source: Luminous high power 120W white LED UNIT(CBM-360-W) Lamp Life: 50, 000 hours lamp lifespan and low power consumtion Color wheel: 1 color wheel with 7 dichroic colors plus open, Variable direction rainbow effect with speed adjustable Gobo wheel: One rotating gobo: 7 interchangeable gobos+open(3 metal and 4 glass gobos) with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise One static gobo 9 interchangeable gobos+ open
Control channels: 16CMX chanels, Other DMX modes available, 3 pin DMX connectors DMX512, Master-slave and sound activated controllable or auto operation(8 built-in programs). Movement: Pan 540° /630° , tilt 270° , 16 bit smooth and precise resolution for PAN/TILT movement Scan position memory, auto reposition after unexpected movement Prism: 1 rotatable 3-facet prism with speed adjustable and variable direction Focus: 2 meter to infinite electronic focus Iris: Electronic linear IRIS Display: Blue background LCD display Working temperature: 45° Max ambient temperature Protection: IP20 rotection rating, 55dB at 3'dB rating Strobe: 1-18 times/sec high speed electronic strobe Shutter: LED shutter with variable speed Dimmer: 0-100% linearly adjustable(16-bit) Housing: Composite plastic(IP20) Color: Black Dimension: 203X300X437MM Packing dimensions: 410X370X480nn N. W: 12kgs G. W: 15kgs
DMX Channel:
CH
1
2
3
4
5
6
7
8
FUNCTION
Pan
Pan 16bit
Tilt
Tilt 16bit
Color
Gobo1
Gobo 1 Rotation
Gobo 2 Rotation
9
10
11
12
13
14
15
16
Strobe
Dimmer
Focus
Prism
Iris
Pan/Tilt speed
Internal program
Control
