North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:
1195X295mm
Power:
54 Watt
Lumen:
4000-4300lm
CRI:
> 80ra
LED Type:
Samsung 5630 SMD
IP:
IP44
Dimming:
Triac Dimming; 0-10V Dimming
Warranty:
3 Years
Delivery Time:
5-7 Days
Light Source:
LED
Emitting Color:
White
Dimmable:
With Dimmable
Appearance:
Square
Type:
Flat-Type
Certification:
VDE
Voltage:
100-240V
Housing Material:
PMMA
Base Material:
Aluminum
Beam Angle:
120°
Product Description

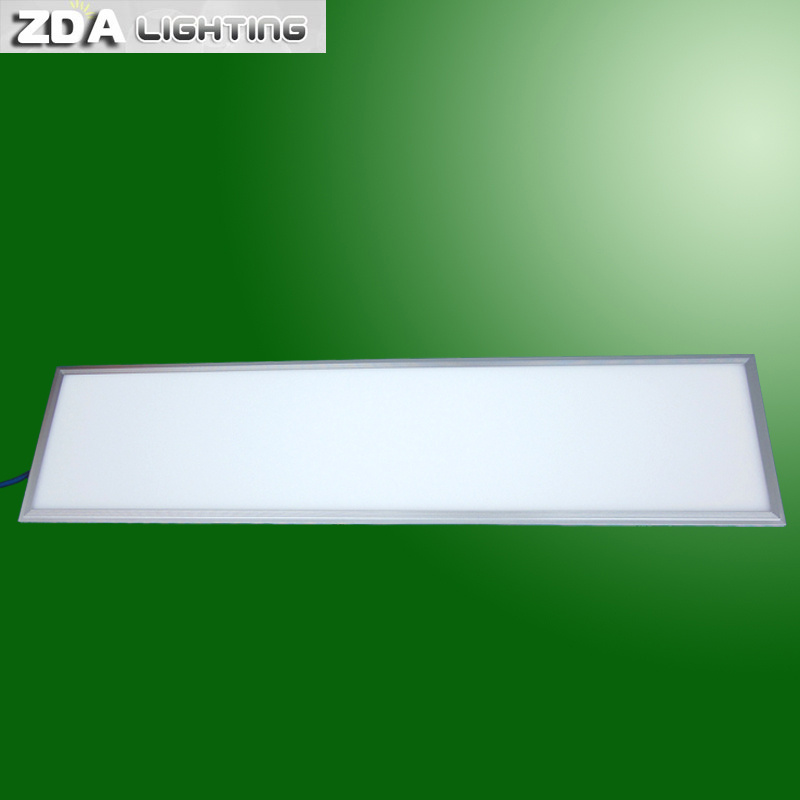

1200X300mm Ceiling LED Panel Light
Key Specifications: Dimension: 1195*295mm Power: 54 Watt ( support 36W, 40W, 48W and 72W) Input voltage: 100-240V Light color: 3000K, 4000K and 6000K Lumen: 4000-4300lm Power factory: 0.95 Beam angle: 120° Warranty: 5 years Materials: Aluminum + PMMA Working temperature: -20°C~+50°C Storage temperature: -30°C~+60°C

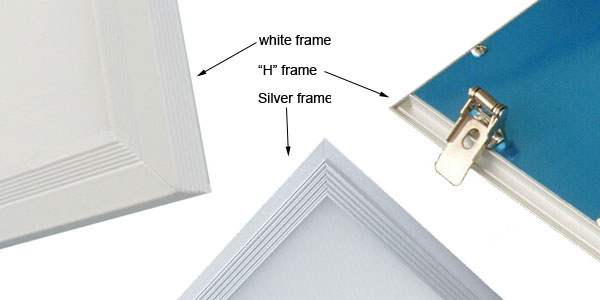

LED Panel Light Frame ZDA Lighting can provide led panel frames below, please chose according to your needs.

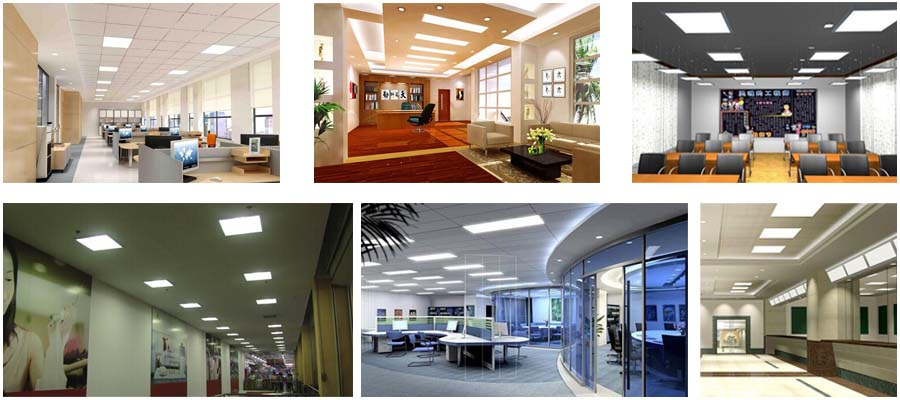

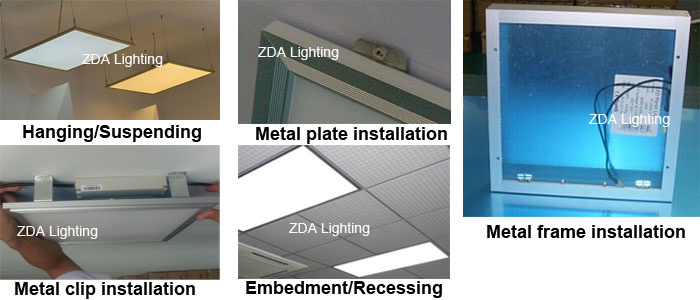

LED Panel Light Installation ZDA Lighting can provide following led panel installations, please chose according to your needs. If you need other special installations, please contact us. LED Panel Light Application Hotels, Conference / Meeting rooms Factories / Office Commercial buildings Residential / markets Schools/Universities. After-sales Service 1. All led panel lights come with 3 years warranty. If the panel lights are operated properly and got quality issue during warranty period, we repair and replace the light at our cost (including shipping cost). 2. Your complaints and requirements will be responded within 24 hours. 3. ZDA Lighting provides technical support and installation guide at free charge.
Trade Term 1. Payment: T/T or Western Union or Paypal 2. Lead time: 4-7 days for sample orders, and bulk order depends on quantity.. 3. Delivery ways: DHL, UPS, FEDEX, TNT, EMS(door to door service); Or by sea, by air.
Parameters:
Name:
led panel 1200x300mm
Part No.
ZD-PL30120W54A
Power
54W
Input voltage
AC100-240V
Lumen
4000-4300lm
LED
Samsung 5630 LED
Color
3000K-4000K-6000K
Power factor
>0.92
Beam angle
120°
CRI
≥80
Size
1195mm*595mm
Materials
PMMA+Aluminum
Dimmable
Can be dimmable
IP Grade
IP44
Working temperature
-20ºC to + 50ºC
Shenzhen Zda Lighting Co., Ltd. Was established in January 2008, located in Shenzhen of China. With years develop, we have two plants in Shenzhen, totaling 200 employees and 7, 000 of plant area. We have passed the ISO9001: 2008 certification. All of our products have CE approval and RoHS certificates, part of the products gain TUV certificate. Over 90% of our products are exported to Europe, North America, Asia and other areas.
Aim to pursue long-term business. We regard "product quality" as our core, "reliability, practicability and low cost" as product design concept, to provide top quality products with the best service in the industry and to deal with customers in an honest and responsible manner.
Until now, we have developed the following LED Lighting Products:
