| Prod Model: |
MHLED 120B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Housing Material: |
Aluminum |
| Housing Color: |
Black/White |
| Aperture Cover: |
Plastic |
| Switch Power Supply: |
Built-in and Auto Switching |
| Control Panel: |
Digital LCD Display |
| Connector: |
3/5-Pinxlr (in and out) |
| Electronic Dimmer: |
1-100% Linear Dimmer |
| Cooling: |
Entire Casing as Heat Sink Plus Noiseless Fans |
| Flicker Free: |
Refresh Rate >1000 Hz |
| Key Point: |
Temperature-Protected Handly |
| IP Rating: |
IP20 |
| Strobe: |
Combined Type Double Strobe |
| Certification: |
SGS |
| Light Source: |
LED |
| Control Channel: |
14CH |
| Control Mode: |
DMX512, Master /Slave Mode, Sound, Auto |
| Voltage: |
90-245VAC 50-60Hz |

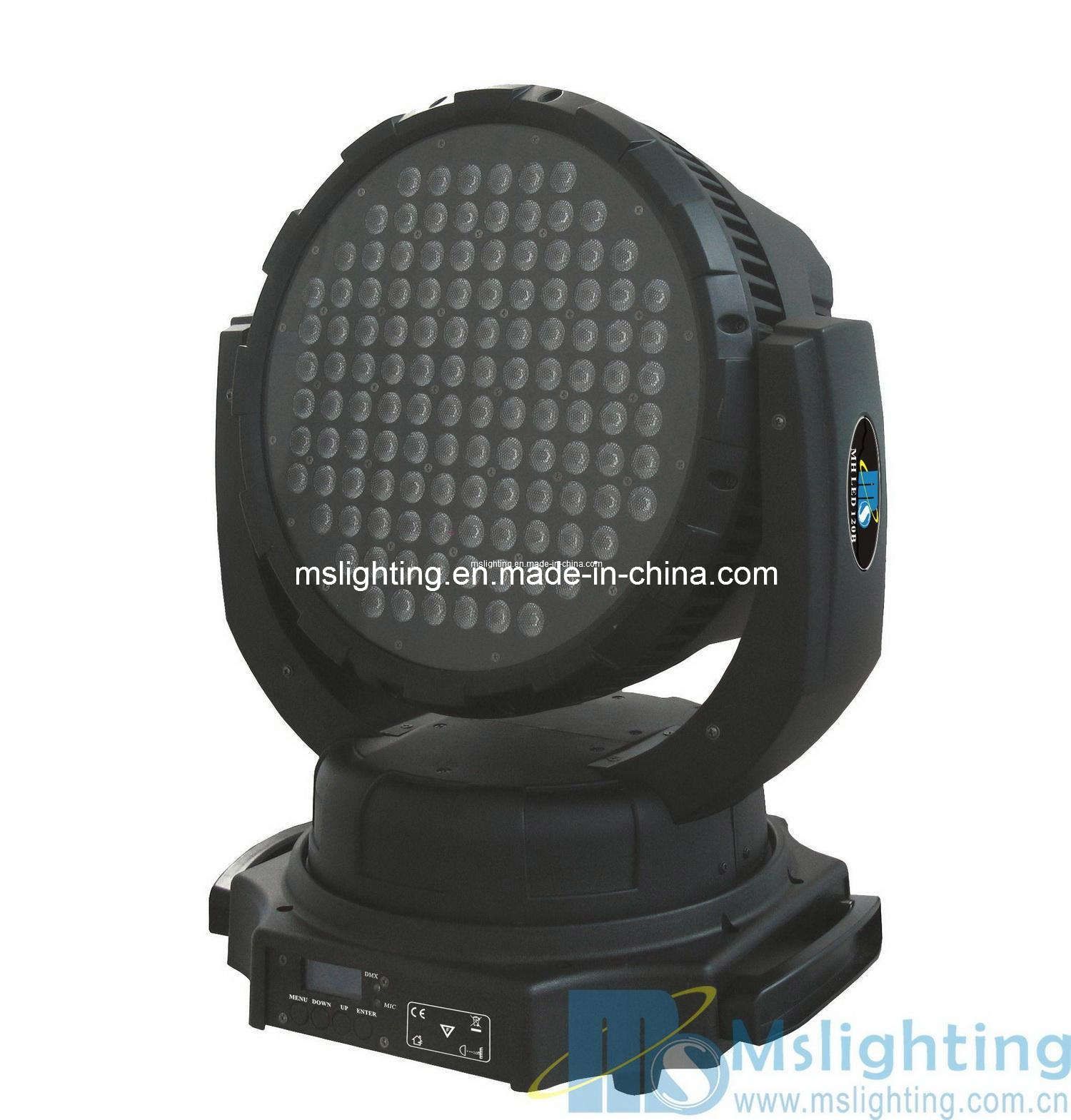

Product Description
Voltage / frequency: 90V-130V/180V-240V/50-60Hz
Bulbs: LED 1W/3W/5W(30 Red / 30 Green / 30 Blue / 30 White) (Or 40Red40Green40Blue)/120*3in1RGB
Power: 120W/360W/600W
Control signal: DMX 512, in sets at the automatic procedure
Channel: 14CH(RGBW/RGBA)/13CH(RGB), DMX512 channel control
Color: 16.7 million kinds of colors changes
Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also may mix the color tone
Strobe: 1-25/second high speed strobe, but single color mixes the color strobe
Low power consumption
Super luminance, with the efficiency of ordinary power bulbs, rich and splendid color
DMX-512 control signal, 12 standard channels
The housing is made of streamline fashionable PC engineering plastic after once casting
Wide range super tiny smooth scanning, horizontal scanning angle reaches 450° And vertical 270° , the scanning precision reaches 8bit and 16bit, with smooth and precise positioning, additionally, the scanning speed is adjustable
Infinite RGB color mixed system
The light beam angle would choose from 6° - 60°
High speed electronic strobe reaches 1-18 times/second
Total light adjustment control channel can control 3 main color channels simultaneously
The digital display on the control panel can be reversed for 180° , applicable for horizontal or vertical use of moving head
With the functions of synchrony movement and music control
Meet CE standard, UL standard and GB7000.15-2000 standard.
|
CH |
NAME |
Value |
Function |
|
CH1 |
X |
0--255 |
X Scanning |
|
CH2 |
Y |
0--255 |
Y Scanning |
|
CH3 |
Strobe, Reset |
000-009 |
Not Strobe,(On) |
|
010-059 |
Strobe slow - fast |
|
060-064 |
Not Strobe,(On) |
|
065-114 |
Random Strobe slow - fast |
|
115-119 |
Not Strobe,(On) |
|
120-169 |
Strobe slow – fast, Gradually on |
|
170-174 |
Not Strobe,(On) |
|
175-224 |
Not Strobe,(Off),Rest,after 3sec. |
|
245-255 |
Not Strobe,(On) |
|
CH4 |
Color |
000-002 |
R |
|
003-004 |
RW |
|
005-007 |
RG |
|
008-009 |
RGW |
|
010-012 |
G |
|
013-014 |
GW |
|
015-017 |
GB |
|
018-019 |
GBW |
|
020-022 |
B |
|
023-024 |
BW |
|
025-027 |
RB |
|
028-029 |
RBW |
|
030-039 |
W |
|
040-049 |
RGBW |
|
050-083 |
R On\G Gradually On\B Off |
|
084-117 |
R Gradually Off\G ON\B Off |
|
118-151 |
R Off\G On\B Gradually On |
|
152-185 |
R Off\G Gradually Off\B On |
|
186-218 |
R Gradually On\G Off\B On |
|
219-252 |
R On\G Off\B Gradually Off |
|
253-255 |
RGBW |
|
CH5 |
Dimmer |
0--255 |
Dimmer Dark to Light |
|
CH6 |
R |
0--255 |
R, Dimmer Dark to Light |
|
CH7 |
G |
0--255 |
G, Dimmer Dark to Light |
|
CH8 |
B |
0--255 |
B, Dimmer Dark to Light |
|
CH9 |
W |
0--255 |
W, Dimmer Dark to Light |
|
CH10 |
Color Change Auto |
0--5 |
RGB,Colorful by CH5 |
|
6--127 |
RGB Graduated, Speed adjustment, Slow to Fast |
|
128--255 |
RGB Jumping, Speed adjustment, Slow to Fast |
|
CH11 |
X Fine |
0--255 |
X Fine |
|
CH12 |
Y Fine |
0--255 |
Y Fine |
|
CH 13 |
Speed |
0-255 |
Motor Fast to Slow |
|
CH14 |
Running MODE |
000-049 |
DMX MODE |
|
050-099 |
X Running |
|
100-149 |
Y Running |
|
150-199 |
X\Y Running |
|
200-255 |
Sound |
