12 Inch Assembly 7 Segment LED Display

Name: 12 Inch Assembly 7 Segment LED Display
Brand: yourledlight.com
SKU: 782332595
Availability: InStock
Rating: 4.6 (22 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Lightkey Company Limited

Showroom Product Company Profile

Prod Model:	LD120011A/B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe

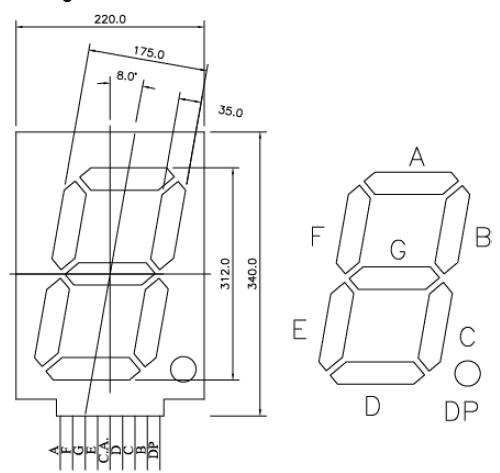

Outline Dimensions:	340X220mm
Digit Height:	12 Inch(312mm)
Emitting Color:	Single Color
Dp Number:	1PC
Digit Number:	1 Digit
Chip Matrial:	4-Element
Tube Chip Color:	Single Color
Scanning Mode:	Static Scan
Display Type:	Segment LED Display
Application:	Meters and Instruments
Certification:	Reach
Display Function:	Numbers and Some Alphabets

Product Description

Features
Ø         312mm (12 inch) digit high
Ø         Excellent digit appearance
Ø         Wide viewing angle
Ø         Range of emitted colors
Ø         I.C. compatible
Ø         Low power consumption
Ø         White segment
Ø         RoHS compliant

Available options

Ø         Alternative emitting luminosity:
Standard or high brightness version
Ø         Alternative emitted color
Ø         Alternative segment color
Ø         Alternative font

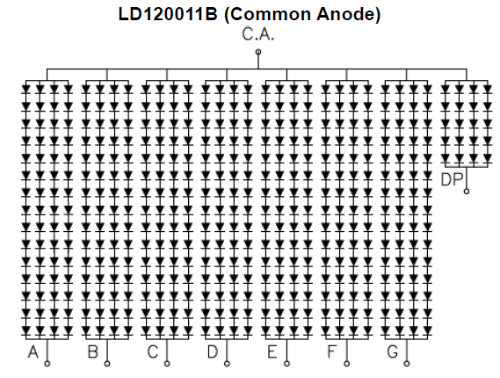

Ø         Common Cathode is available
Ø         Cropped terminal pins
Selection Guide (Ta = 25 °C )

Single Digit 7 Segment LED Display, Digit Height: 312mm(12inch), External Dimensions: 340x220mm (L x W x H)
Part No.		Chip			Iv@IF=20mA		Iv@IF=20mA
Common Cathode	Common Anode	Material	Color	WLD	One Seg		One DP
Common Cathode	Common Anode	Material	Color	WLD	Min.	Typ.	Min.	Typ.
LD120011AR	LD120011BR	GaAlAs	Super Red	640	360	450	120	150
LD120011AD	LD120011BD	GaAlAs	Hi-Red	640	810	1125	270	375
LD120011AO	LD120011BO	GaAsP	Orange	625	315	405	105	135
LD120011AY	LD120011BY	GaAsP	Yellow	588	360	450	120	150
LD120011AG	LD120011BG	GaP	Green	568	315	405	105	135
LD120011AUR	LD120011BUR	AlGaInP	Ultra Red	640	1350	2025	450	675
LD120011AUO	LD120011BUO	AlGaInP	Ultra Orange	625	2025	2700	675	900
LD120011AUA	LD120011BUA	AlGaInP	Ultra Amber	605	1350	2025	450	675
LD120011AUY	LD120011BUY	AlGaInP	Ultra Yellow	595	1350	2025	450	675
LD120011AUG	LD120011BUG	AlGaInP	Ultra Green	573	1350	2025	450	675
LD120011APG	LD120011BPG	InGaN	Pure Green	525	5400	13500	1800	4500
LD120011AUB	LD120011BUB	InGaN	Ultra Blue	470	1350	2025	450	675
LD120011AUW	LD120011BUW	SMD	Ultra White	\	4500	5400	1500	1800
Unit:	\	\	\	nm	mcd	mcd	mcd	mcd

How to produce these item?
Factory viewing:

LightKey Optoelectronics Ltd. Is a big LED manufacturer, which covers an area of 40, 000 square meters, with approximately 390 production workers, and more than 50 R&D people. It has more than 10 advanced automatic production lines including die attaching, wire bonding, taping and casting. LightKey is also equipped with advanced sorting, testing, and analyzing instruments as well as other technical R&D equipments. We focus on the quality since our estabilishment. Is a manufacturer specialized in LED products especially LED components. Our main products are LED displays: 7 segment LED display, 14 and 16 segment LED display, LED DOT matrix, LED bargraph, &LED lightbar and so on: Lamp type LEDs: White LED, signboard oval LED, standard LED, high-brightness LED, traffic LED, IR LED, photodiode silicon, high power LED, super flux LED, & SMD LED and LED applications. Our company is managed according to ISO9001: 2008. Our LED products have RoHS and REACH compliance.
