| Prod Model: |
LED 2009E/2009F/2009G/2009H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Lamp Quantity 1: |
12*4W RGBW 4in1 Multi-Color LED Lamp |
| LED Lamp Quantity 2: |
24*4W RGBW 4in1 Multi-Color LED Lamp |
| LED Lamp Quantity 3: |
36*4W RGBW 4in1 Multi-Color LED Lamp |
| LED Lamp Quantity 4: |
72*4W RGBW 4in1 Multi-Color LED Lamp |
| Base Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Certification: |
CE |
| Lifespan: |
10000 hours |
| Emitting Color: |
RGB |
| Diffuser: |
Tempered Glass |
| Electric Current Type: |
AC |
| Beam Angle: |
6degree to 120degree |
| Input Voltage: |
110V-240V |
Product Description

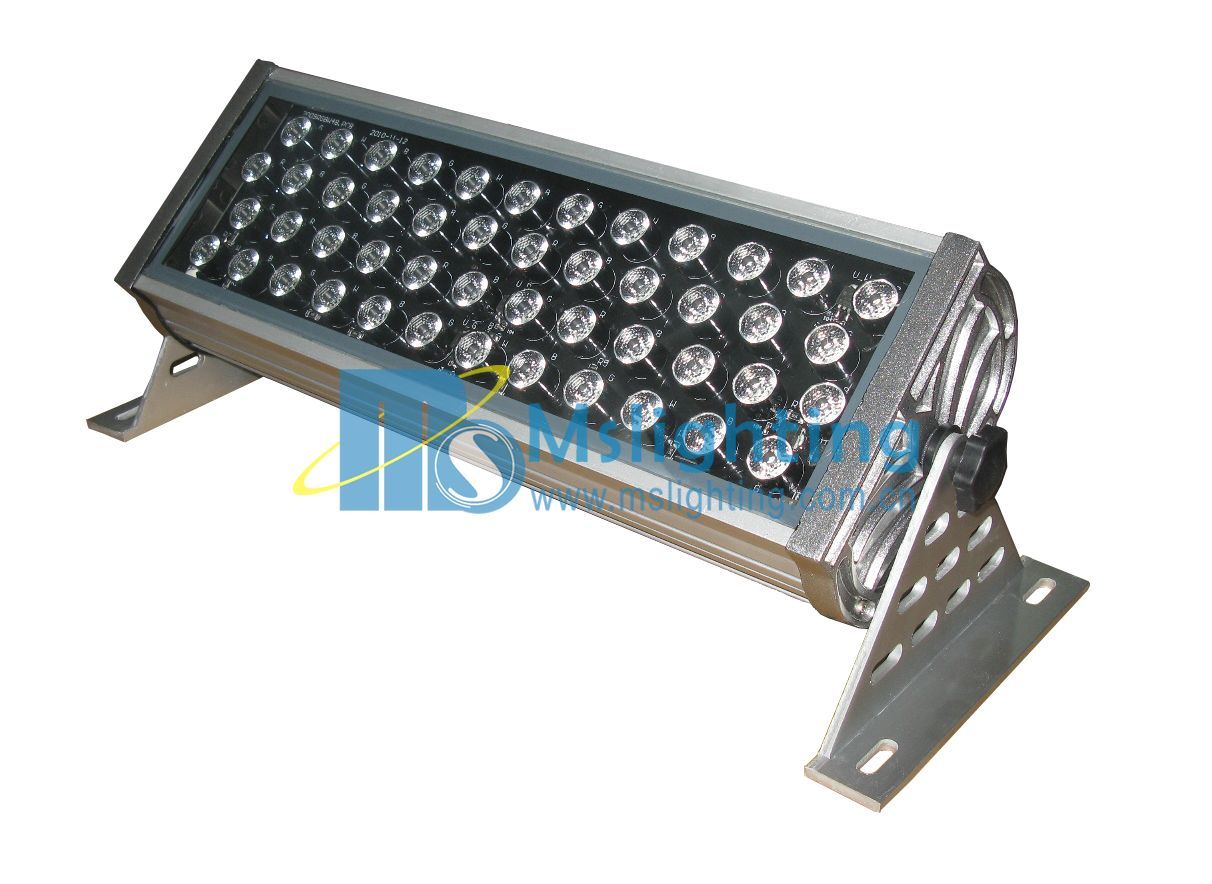

MODEL: LED 2009E: 12*4W RGBW 4IN1 Multi-Color LED Lamp
MODEL: LED 2009F: 24*4W RGBW 4IN1 Multi-Color LED Lamp
MODEL: LED 2009G: 36*4W RGBW 4IN1 Multi-Color LED Lamp
MODEL: LED 2009H: 72*4W RGBW 4IN1 Multi-Color LED Lamp
Control signal: DMX512
Power consumption: 45W/55W/155W/80W/105W/155W
Protection rating: IP 65
1) Input voltage: AC 90-130V/280V-240V/50-60Hz, auto change
2) Power: 140W
3) LED size: 4W RGBW 4IN1 Multi-Color LED Lamp
4) DMX Channels: 7CH/4CH
Compatibility:
1. Color Range 16.7 million additive RGB colors; Continuously variable intensity (256× 256× 256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: It is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, sound activity and Save function.
5.7channel Mode and 4channel Mode would change each other in every light
6. DMX Channels-7CH Mode:
CH 1 General Dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer, from dart to light)
CH 3 Green (1-255, Dimmer, from dart to light)
CH 4 Blue (1-255, Dimmer, from dart to light)
CH 5 White (1-255, Dimmer, from dart to light)
CH 6 Strobe & Color change &color gradual change's open
CH 7 Strobe & Color change & color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. DMX Channels-4CH Mode:
CH 1 Red (1-255, Dimmer, from dart to light)
CH 2 Green (1-255, Dimmer, from dart to light)
CH 3 Blue (1-255, Dimmer, from dart to light)
CH 4 White (1-255, Dimmer, from dart to light)
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
