Electromagnetic Ballast:
Electronic Ballast
Osram Hri280:
Beam Angle: 3.8-45 Degree
Color Temperature: 8000k:
Gobo: 17 Color+Blank Color Wheel
Prism: Rotation 3 Face Prism:
High Precision Optical Lens
Pzcking Dimension: 523X337X570cm:
Net Gross Weight: 18.50kg
IP Rating:
IP20
Certification:
RoHS
Light Source:
Osram Hri 280W
Material:
Fireproof ABS Material
Emitting Color:
17 Fixed Gobo +9 Rotation Gobo
Control Channel:
16/17/25CH
Strobe:
Double Lens Strobe
Control Mode:
DMX512, Automatic and Master, Slave Mode,
Voltage:
AC110-240V
Product Description

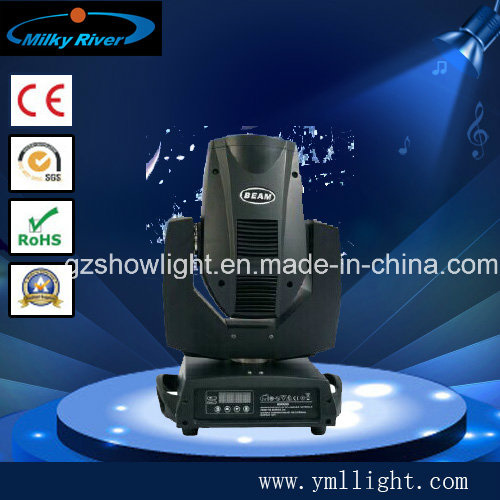

280W Beam Moving Head Light
Technical Parameter Power supply:AC110-240, 50/60Hz Lamp: OSRAM HRI280W Color Temperature:8000K Average lamp life:2000H Color: 17 color + blank color wheel Gobo: 17 fixed gobo +9 Rotation gobo Prism: rotation 3-face prism Lens: high precision optical lens Wash effect: adjustable wash effects angle Focus: linear adjustment Dimmer:0-100% linear adjustment Pan/Tilt: X axis 540°Y axis 250°automatically accurate positioning Beam angle: parallel beam angel 3.8°-45° Strobe: Double lens strobe(0.5-9 times/ second) Control mode: Standard DMX512, Automatic and Master/slave mode Channel: 16/17/25 CHs Controller can open the lamp and reset, including delaying function Weight: 18.5KG
CH MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
16CH
Color
Strobe
Dimmer
Static Gobo
Prism
Gobo/Prism Roation
Gobo Rotation
Zoom
Focus
Pan
Pan Fine
Tiit
Tilt Fine
Pan/Tilt Speed
built-in Effect
Reset or turn on/off lamp
17CH
Pan
Pan Fine
Tilt
Tilt Fine
Pan/Tilt Speed
Empty
Dimmer
Strobe
Color
Gobo Rotation
Gobo/prism rotation
Static gobo
Iris
Prism
Focus
zoom
Reset or turn on/off lamp
25CH
Pan
Pan Fine
Tilt
Tilt Fine
Pan/Tilt Speed
Empty
Dimmer
Strobe
Color
color model
Gobo Rotation
Gobo Model
gobo/prism rotation
index pan fine
Gobo shake
static gobo
Static gobo shake
18
19
20
21
22
23
24
Iris
built-in Effect
prism lamp
focus
focus fine
zoom
Reset or turn on/off
Payment: 30% down payment to confirm order, the balance should be pay before dispatch.
Sample testing Can by DHL, UPS express for tesing
Product guarantee 1 year guarantee
Service
Our professional staff offer 24 hours on line technology and other sevvice, if urgent, please call 0086 18126857039

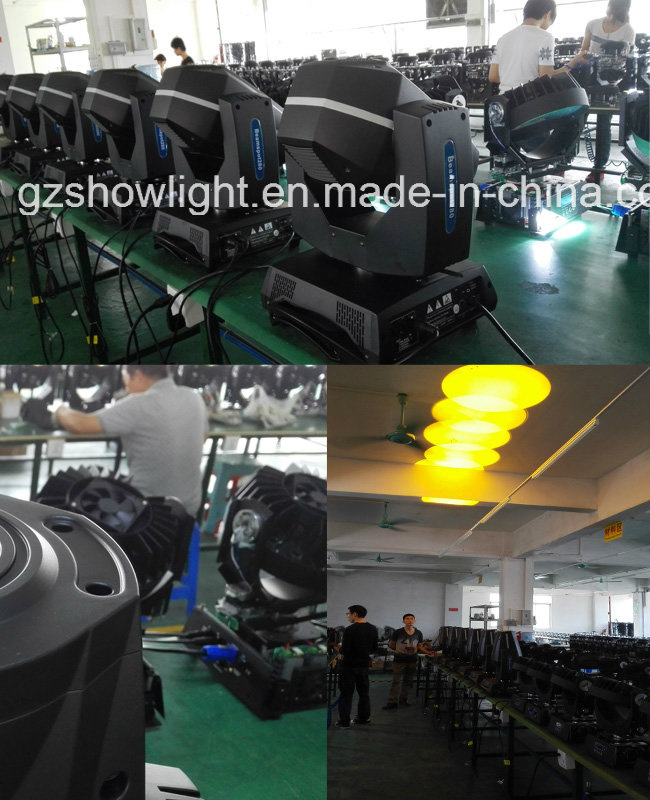

Guangzhou Show Light Stage Equipment Co., Ltd formed from a lighting factory with 21 years experience, which research and developed the professional stage lighting control, for recent years, develop the LED moving head, profile light, spot light, etc. Our main products are including moving head, LED lighting, stage effect, follow spot light, controller. Widely used in all kinds of performances, theater, TV studio, multi-functional meeting rooms, church, musical hall, parks, etc.
