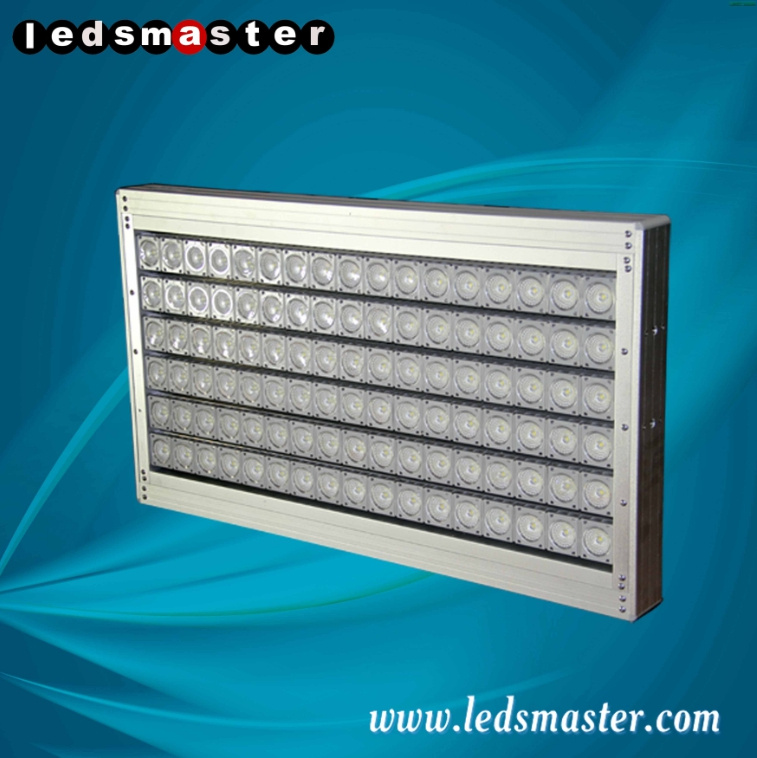

Prod Model: |
LS-FLN1080-ULT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand: |
Ledsmaster |
Lumin: |
21000lm |
Watt: |
1080W |
Light Efficiency: |
120lm/W |
Replacement: |
250-400W Metal Halide |
Size: |
469X328.4X75 |
Weight: |
7kg |
Warranty: |
5years |
Projection Distance: |
>35m |
Body Material: |
Aluminum |
Lighting Bulbs & Tube: |
Energy Saving |
Average Life: |
>8000h |
Application: |
Factory |
Operating Voltage: |
220-240V |
Certification: |
RoHS |
Color Temperature(',CCT): |
2800-7000k |
IP Rating: |
IP66 |
Product Description
led flood light for outdoor using
250--4000W Replacement
Product Description
Technical reference
ITEM | IP66 Waterproof LED Lamp |
| | |
ITEM NO | LS-FLN100 | LS-FLN100-Hi |
| | |
Power | 100W | 100W |
| | |
Light Source | Epistar /Brigelux Power | Epistar /Brigelux Power |
/Cree Chip | Chip |
|
Input Voltage | 90-265VAC 50-60HZ | 90-265VAC 50-60HZ |
| | |
Power Factor (PF) | ≥0.95 | ≥0.95 |
Power Efficiency | ≥90% | ≥90% |
Color Index(CRI) | Ra>65 | Ra>65 |
Light Angle | 10°, 25°, 40°, 60°, 90° | 25°, 40°, 60°, 90° |
| 2700-3500K | 2700-3500K |
Color Temp: | 5000-6500K | 5000-6500K |
| 6500-7500K | 6500-7500K |
LED Luminous Efficiency | 120lm / Watt | 160lm / Watt |
| | |
Luminous Flux (Typ.) | 12000lm | 16000lm |
| | |
Equal Flux (Typ.) * | 24000lm | 32000lm |
| | |
Life Span | ≥80000 hours | ≥80000 hours |
| | |
Work Temperature: | - 25 ° C ~ 55 ° C | - 25 ° C ~ 55 ° C |
| | |
Storage Temperature: | - 40 ° C ~ 80 ° C | - 40 ° C ~ 80 ° C |
| | |
Working Humidity | 10 % ~ 90 % RH | 10 % ~ 90 % RH |
| | |
IP Rating | IP66 | IP66 |
| | |
Light Attenuation(80000h) | 30% | 30% |
| | |
Light Body Size (LxWxH) | 286x316.5x145mm | 286x316.5x145mm |
| | |
Lamp Net Weight(KG) | 5.5 | 5.5 |
| | |
Package Size: | 386x420x230mm | 386x420x230mm |
| | |
Total Weight(KG) | 8.5 | 8.5 |
Feature
* Brightest Flood Light in the world!
* Premium Precise Optical Lens System, 2-10 times brighter than conventional light
* Modular Design, Easier Maintenance
* Direct Heat Path Technology, 2-5 times better stability
* Anti-Glare System, suitable for any occasions
* IP66, underwater use support
* 5 Years Warranty!
Testing
Test data
Hour(H) | Light Flux(LM) | DC Voltage | DC Current(A) | Preservation Rate of |
light |
| | | |
1 | 110000lm | 31.33 | 35 | 100% |
1000 | 107800lm | 31.35 | 35 | 98% |
2000 | 107360lm | 31.30 | 35 | 97.6% |
3000 | 106150lm | 31.35 | 35 | 96.5% |
5000 | 104500lm | 31.28 | 35 | 95% |
6000 | 103730lm | 31.37 | 35 | 94.3% |
6500 | 102850lm | 31.37 | 35 | 93.5% |
Application
------------- airport ,mine sites ,
--------------roads ,sports stadiums
------------- replace the regular lighting sources
Company Information
Company file:
1.Ledsmaster Technology Co,Ltd was established in 2005,located in BaoAn ,Long Hua ,Shenzhen City ,Guangdong province ,China.
2. As a professional manufacturer of LED lights with years of experience ,
3.Ledsmaster have succesfully acquired more market shares around the world and gained the great reputation for reliable professional and classic services .
4.We manufacture led light such as flood light, fish lighting, street light, highbay light, billboard light, widely applied to indoor and outdoors.
we are the manufacture of led light over 13 years,
enjoy a good cooperation on alibaba over 7 years.
With rich and good experience in the LED lighting field, we have successfully acquire more market shares in around the world. As a professional manufacturer and distributor, we have received the great reputation for our reliable professional and classic services, especially for the progress we made in innovative products in LED illumination field. We have dedicated ourself to the world's more beautiful decorative lighting products. At the same time, we would offer the most competitive price to our customer so as to provide maximum value.
We always hold the below principles, which will enable us to make it better.
Top Quality
Every item we produce is of TOP quality, and this has been our basic policy after establishment of the company and the base of mutual beneficial relationship with our customers.
Reliable and Classic Service
Whenever and wherever you place the orders with us, your requirement for the soonest delivery will be guaranteed. A smooth logistic arrangement can be ensured. Under any conditions, you will receive our reply for any of your questions either by fax or by E-mail with-in 24 hours. Sufficient technical assistance and flexible sales policy will be provided in the actual business operation. The loyal service can go through all over the sales by offering efficient answer to the inquiry, arranging the prompt shipment and providing various supports after-sales.
Continuous Innovation
The innovation is always the first factor and the most important thing for us. The developing research in new items, applied products, structure of organization as well as more efficient operation has never ceased in our company. We sincerely hope that both of our suppliers and customers can be benefit from this innovation in any degree.
The most competitive price
The consolidate friendship and long-term business relationship with every customers is always our target, and we shall constantly dedicate ourbest efforts to provide the maximal value. With us, the most competitive price is provided while good quality is remained.
