| Prod Model: |
PL-P-R12W-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED: |
2835 SMD LED |
| Power Consumption: |
12W |
| Luminous Flux: |
1400 Lm(White) |
| LED Ceiling Downlight Emitting Color: |
White, Warm White |
| LED Ceiling Downlight View Angle: |
120 Degrees |
| LED Ceiling Downlight Size: |
Dia170X H: 20mm |
| Cutout Size: |
150mm |
| Certificates: |
CE&RoHS |
| Lifespan: |
50, 000h |
| Item Name: |
100-240V 12W LED Down Light/Round LED Panel Light |
| Light Source: |
LED |
| Material: |
Aluminum |
| Installation: |
Recessed |
| Lamp Installation: |
Clip |
| Application: |
Commercial Lighting, Home Lighting |
Product Description

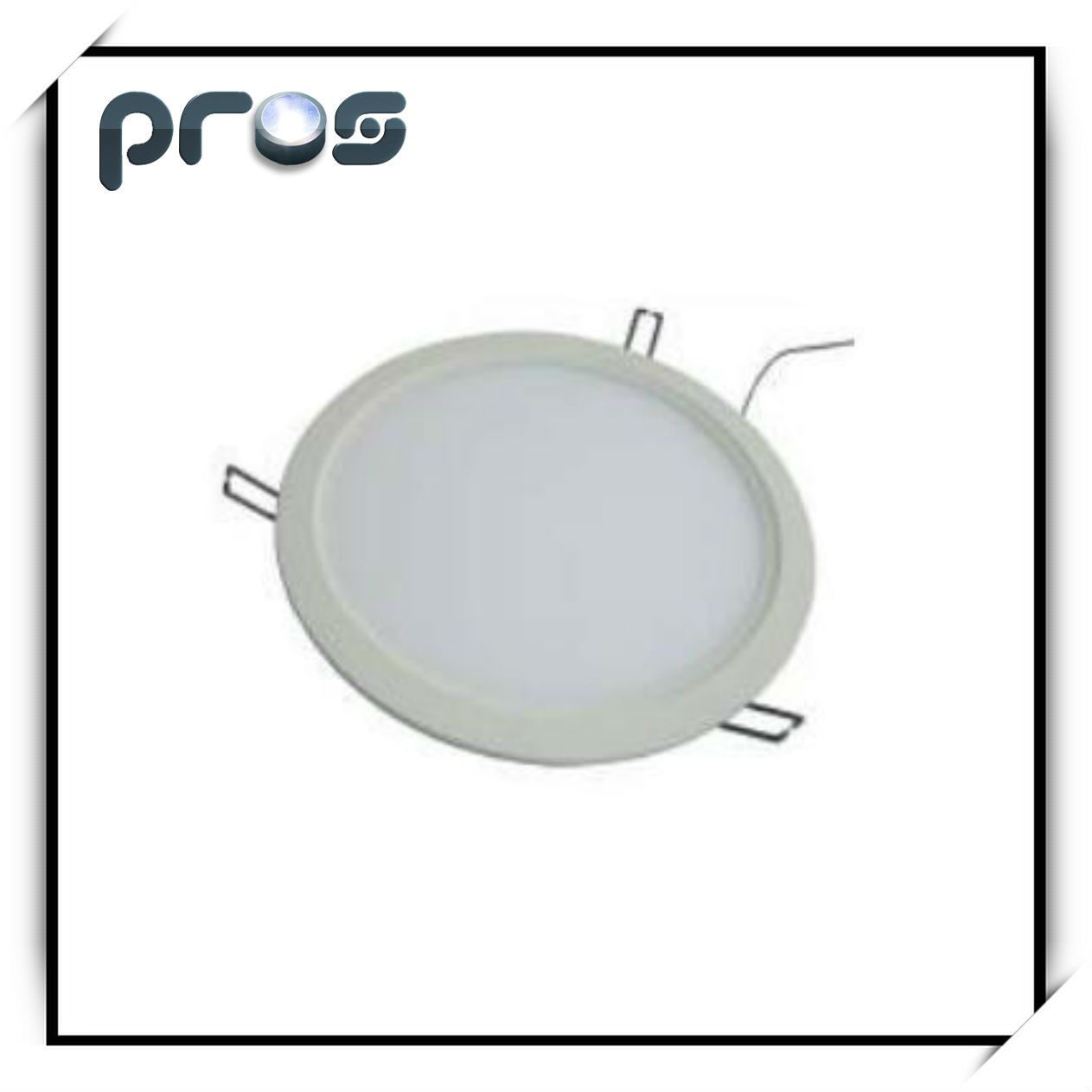

100-240V 12W led down light/round led panel light ip44 (PL-P-R12W-M) Features:
Energy saving up to 50%. Even lighting output.
Voltage: 100-240V.
Instant start, no flicking, no humming.
New high efficiency constant current driver.
Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
No RF interference.
Application:
1. Office lighting, display case lighting
2. Cabinet and under counter lighting
3. Ceiling /Wall Coves
4. Exhibition stands lighting
5. Other application
| Item no. | Input voltage | Size | Cutout size | Power consumption | LED quantity | LED chip |
| PL-P-R3W-W | AC 85-265V | Dia.90mmx20mm | Dia.70mm | 3W | 15pcs | SMD2835 |
| PL-P-R4W-W | AC 85-265V | Dia.110mmx20mm | Dia.90mm | 4W | 20pcs | SMD2835 |
| PL-P-R6W-W | AC 85-265V | Dia.120mmx20mm | Dia.100mm | 6W | 30pcs | SMD2835 |
| PL-P-R9W-W | AC 85-265V | Dia.150mmx20mm | Dia.130mm | 9W | 45pcs | SMD2835 |
| PL-P-R12W-W | AC 85-265V | Dia.170mmx20mm | Dia.150mm | 12W | 60pcs | SMD2835 |
| PL-P-R15W-W | AC 85-265V | Dia.195mmx20mm | Dia.175mm | 15W | 75pcs | SMD2835 |
| PL-P-R18W-W | AC 85-265V | Dia.225mmx20mm | Dia.200mm | 18W | 90pcs | SMD2835 |
