Mining Lamp
Features
1 one high output 1 watt LED, six low output LEDs
2 two lighting levels: Maximum code and economic code
3 multi-function for mining and outdoor sports
4 rechargeable up to 1000 times
5 >20000 Hrs >1500lux at the maximum code
6 two years warranty

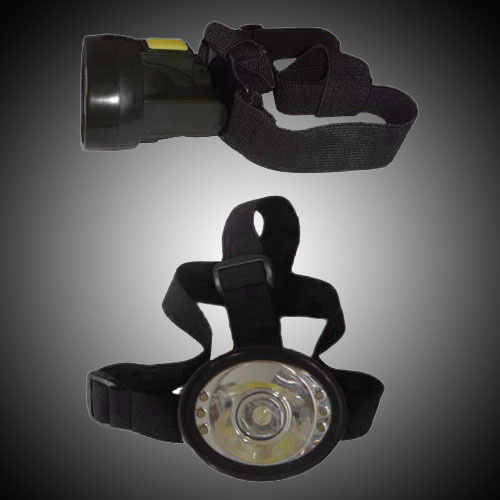

Descriptions of Mining Lamp
It adopts energy saving circuit, one 1W high-power LED main light source, six low-power LED accessorial light source. Safety lithium-ion battery integral design has many good characteristics, small volume, light weight, free maintenance, explosion- proof, waterproof, anti-knock and long lifetime. Run time underfully charged can be over 14hrs main lighting, over 24hrs for accessorial lighting. It can be fixed on Miner's hat, it is environmental friendly which has the patent of high technology product.
Specifications of Mining Lamp
Light source type: Bread shape
Lighting Current 150mA
Accessorial Lihgting Current 60mA
Main Lighting Voltage 3.0-3.4V
Accessorial Lihgting Voltage 3.0-3.4V
CCT: 5500-6000k
4000-5000k
3000-4000k
Illumination: 1200-3200lux
Working Temperature: -20~40degree
CRI: Ra>80
Charger AC input: AC110~240V
DC output: DC4.2V, 0.5A
Working frequency: 50~60Hz
Lithium-ion battery: 2.8AH
Working time: >11h
Charging time: 6h
Battery circular-using life: >1000 time
Life time: >20.000Hrs
IP degree: IP65
Pack size: 495*345*340mm
N. W: 0.204kg
G. W: 13.31kg
Qty: 45PCS/CTN
Mode No |
Light Souree Type |
Main Lighting Current |
Accessorial Lihgting Current |
Main Lighting Voltage |
Accessorial Lihgting Voltage |
CCT |
3M
Illumination |
ZH-T6W001 |
COB |
150mA |
60mA |
3.0-3.4V |
3.0-3.4V |
5500-6000k
4000-5000k
3000-4000k |
1200-3200lux |
Shenzhen Cohon Lighting Co., Ltd. is a high-tech manufactory which is mainly engaged in technical research, production and service of LED semiconductor illumination. with an area of 5000 square meters, our company is equipped with numerous of advanced experimentation equipment and full automatic production pipeline of LED devices.
We have a very excellent design and R& D group who are professional in the field of LED application, external appearance, structure, illumination and drive electric source. Our company has employed doctors of Chinese Academy of Science as technology consultant. We have acquired many patents already, and now, more than ten products are under application for patents by our R& D hard working.
Our products include LED street light, LED headlights, LED miner's lamps, high power LED spotlights, LED emergency lights, LED floodlights, LED underwater lights and series of high-power LED commercial semiconductor lights. Besides, we also have developed capability of supply some special standard LED lighting products. And our products have passed the CE, UL and RoHS.
Our products have been exported to all over the world and they are welcomed by our customers, especially the series of 1W power LED miner's headlight has occupied more than 50% market in China. We will try our best to contribute all strength for the global green lighting and put more and better green semiconductor lighting products to the market.
