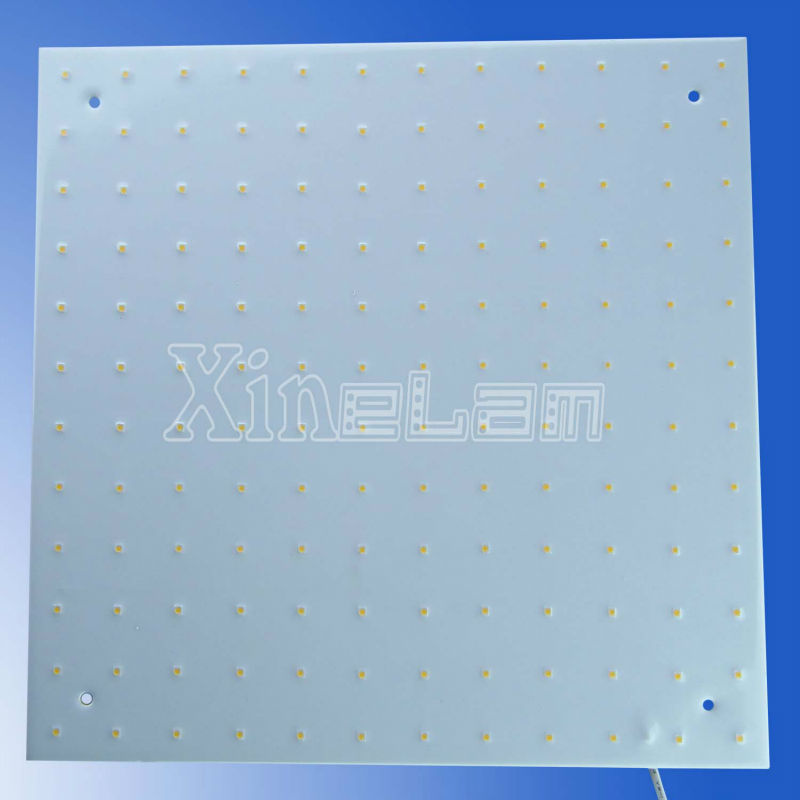

XineLam Waterproof LED Aluminum Panel illuminated Advertisement Light Boxes
Top Features and Benefit |
Epistar LED SMD3528 Safe Low Input 12V DC Lightweight Ultra thin 3mm High Efficiency 100Lm/w High Brightness 6000Lm / m2 Waterproof Rated IP67 Long Life-span 50000hrs Practical application 5 years Aging testing more than 50000hrs CRI ( color rendering index ) >75 Aluminum heat dissipation Various dimension,wattage,output lumen Available Color: WW/NW/CW,Single Color, Bi-Color, Tri-Color,Multi-Color Customized sizes available Even Illumination Widely Applications CE and RoHS approval Warranty policy 3 years Patent No.: ZL200820131053, ZL200820132702 |
33.33mm LED Pitch ( Brightness 6000Lm / m2 )
MODEL | Dimension / LED QTY | Luminous flux | DC12V Power | LED Pitch |
|
|
RX-ALF3528-33-1010 | 100x100mm 9LED | 70Lm | 0.7W | 33.33mm |
|
RX-ALF3528-33-1030 | 100x300mm 27LED | 210Lm | 2.1W |
|
RX-ALF3528-33-1060 | 100x600mm 54LED | 420Lm | 4.2W |
|
RX-ALF3528-33-3030 | 300x300mm 81LED | 550Lm | 5.5W |
|
RX-ALF3528-33-3060 | 300x600mm 162LED | 1100Lm | 11W |
|
RX-ALF3528-33-5050 | 500x500mm 225LED | 1520Lm | 15.2W |
|
RX-ALF3528-33-6060 | 600x600mm 324LED | 2200Lm | 22W |
|
30.5mm LED Pitch ( Brightness 7540Lm / m2 )
25mm LED Pitch ( Brightness 10830Lm / m2 )
16.66mm LED Pitch ( Brightness 22770Lm / m2 )
MODEL | Dimension / LED QTY | Luminous flux | DC12V Power | LED Pitch |
|
|
RX-ALF3528-30-2727 | 270x270mm 81LED | 550Lm | 5.5W | 30.5mm |
|
RX-ALF3528-30-2754 | 270x540mm 162LED | 110Lm | 11W |
|
RX-ALF3528-30-5454 | 540x540mm 324LED | 2200Lm | 22W |
|
|
|
RX-ALF3528-25-3030 | 300x300mm 144LED | 1100Lm | 11W | 25mm |
|
RX-ALF3528-25-3060 | 300x600mm 288LED | 2000Lm | 20W |
|
RX-ALF3528-25-20120 | 200x1200mm 384LED | 2900Lm | 29W |
|
RX-ALF3528-25-6060 | 600x600mm 576LED | 3900Lm | 39W |
|
|
|
RX-ALF3528-16-3030 | 300x300mm 324LED | 2200Lm | 22W | 16.66mm |
|
RX-ALF3528-16-2050 | 200x500mm 360LED | 2400Lm | 24W |
|
RX-ALF3528-16-6060 | 600x600mm 1296LED | 8200Lm | 82W |
|
Applications
1. Outdoor and Indoor Backlighting
-Commercial advertising light boxes
- Advertising signs cabinet
- Advertising billboard, poster, signboard
- Menu Light boxes
- Bus shelter light boxes
- Shopping mall light boxes
- Airport/metro light boxes
- Floor Backlit
- Signage display
- Marble backlight
-X-Ray light boxes
2. Direct lighting:
- Hotels
- Conference
- Meeting rooms
- Factories
- Offices
- Residential / Institution Buildings
- Hospitals
- Schools
- Showroom
3. Replacement of Fluorescent Lamp
4. DIY for your own projects
XineLam Technology Co., Ltd. Under the Ruixian electronic, founded in 2003; Has been focusing on green lighting products, especially the design and development and production of the green LED lighting.
Company business approach: The technical innovation, the quality for this, Credit Foremost, Professional focus, Creating Value for Customer.
Honesty:
Prudential to be all over the world, credit guaranteed. Honesty and trustworthiness is the company's code of ethics.
Innovation:
The development of new products, create new value. Continuous innovation is the driving force for development.
Quality Policy:
Focus on product quality, Ensure Quality in Process, It strictly implements ISO9001 quality control system, Elevate the level of Quality of People, Complete Customer Satisfaction.
Professional focus:
Focus on green Energy-saving products, focus on the LED lighting, Absorption makes profession, profession makes excellence!
Our team has a strong R & D capabilities, now has 11 patents, including the patent right for an invention, utility model or a design.
Our main products are: Waterproof LED panel, LED panel light, LED module, LED backlight, LED shutter, LED lamp, LED tube lights and so on. First waterproof LED panel, with multiple national patents, after more than 30, 000 hours of burn-in test, to good effect; After more than four years a large number of practical applications, customers reflect the good, good adaptability to various climate and time the test confirmed the product's high reliability and security.
All of our LED lighting products - more than the latest 'Energy Star' standard.
Solid-state lighting industry is an emerging industry, LED lighting product quality is good and bad, please refer to shop around!
Our will do all we can do the real green lighting! 'Energy efficient, environmentally friendly, safe, comfortable, long-life' is the direction of our research and development.
Green products, innovation and the future!
