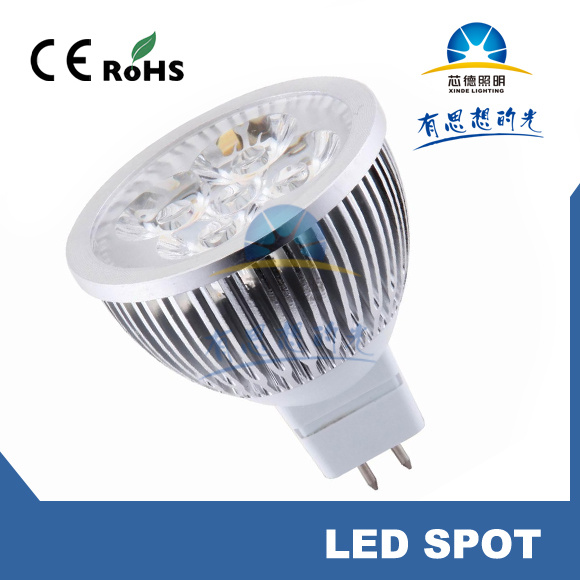

Our 5W MR16 spot lamp are made up with super brightness SMD LED (Using Eutectic Welding Technology with "AlN" Substrate), inner high efficiency constant current driver could support most of Electrical ballast in the market. Using positive cooling patent design for thermal, high luminance maintenance ratio, less degradation and 30, 000hrs lifespan, completely replace the traditional MR16 50w halogen light.
Product Description
LED Spot Light
1. Light source: LED chip 100-110Lm/W
2.12V DC is available.
3. Logical structure, beautiful appearance, wetness & heat endurance, perfect airproof
4. Agile & convenient installation
5. High fixture efficiency, real vision, no harm to eyes and skin
6. No empoison for environment
7. Energy saving
Applicability scope:
LED Spot Light can be used for habitation areas, bars, marketplaces, villas, etc.
Dimmable version
Total Power Consumption5W
Input VoltageAC 85~265V or 12V DC
Frequency Range50~60Hz
Power Factor>0.9
LED ColorWW/NW/CW
CRI>75
Beam Angle 45 degree
LED Initial Flux ( Lumen )501/580/600
Working Ambient Temperature-20º C~40º C
Working Ambient Humidity10%~90%
Life Span >30, 000Hrs
Item
|
Data
|
Power Consumption
|
5W
|
Emitting Color
|
White/warm white/natural white
|
Luminous Flux
|
400-500lm
|
LED Light Source
|
SMD LED
|
Color Temperature
|
6000K±300K/4000k±300k/3000k±200k
|
Color Rendering Index(CRI)
|
Ra>80
|
Beam Angle
|
45° |
Input Voltage
|
DC 12V |
Work Environment
|
Indoor -10 °C ~ 45 °C / R.H.≤85%
|
Junction Temperature
|
55 °C
|
Body temperature
|
< 50 °C
|
Storage Temperature
|
-30 °C ~ 65 °C
|
IP Rating
|
44
|
Dimensions
|
Dia.50*55mm
|
Net Weight
|
60±2g
|
Certi
|
CE&Rohs
|
Warranty
|
3 years
|
