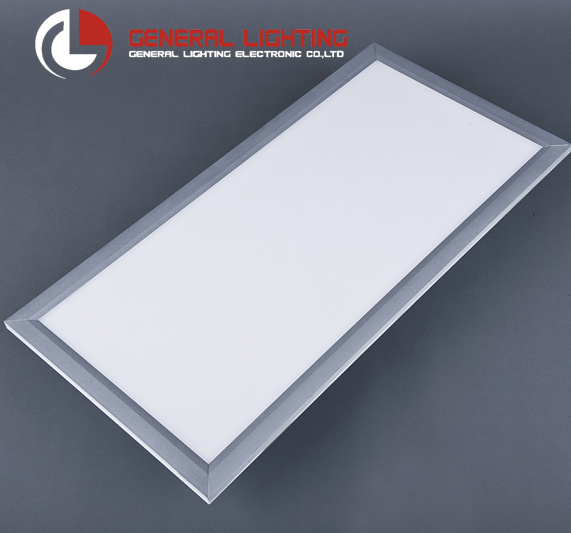

LED panels, panel light, LED lamp panel
Dimension: 600mm X 1200mm X 12mm
LED type: SMD 5630
LED Q'ty: 220PCS
Material: Aluminium + PMMA
Beam Way: Beam at two sides
Working temperature: -10. C~40. C
Installation method: Embedded. Hanging
IP rate: IP40
N. W. (± 0.1Kg): 8.7Kg
Photoelectricity Parameter
CCT.: 2900-6500K
Flux. (± 10%): 6500lm
Light Efficiency(± 10%): 80lm / Watt
Input voltage: AC 110-240V
Input Power: 70W
CRI: Ra>80
Lux. At 2Meters(± 10%): 430lx
Dimmable: Dimmable or Non Dimmable are available
Lighting Angle: 120°
PF: >9.0
1. Warranty: 3 years
2. TUV& CE and RoHS approval
3. Lifespan: 50000hours
4. Good quality & Competitive price
High quality LED panel light is 2011 new ultra-thin panel lamp, which is independently researched and developed by our company R & D persons (General Lighting). We will insure the LED panel more energy efficient & higher brightness; Saving up 50% energy consumption, high CRI to insure a truer color of the good & environment; Aluminum body to insure heat dissipation and the same time the long lifespan of the LED Panel light; Adpot High-light-transmittance Light panel above.
Our service:
Your inquiry related to our products or prices will be replied in 24hrs.
Well-trained and experienced staffs to answer all your enquires in fluent English
OEM&ODM, any your customized lightings we can help you to design and put into product.
Distributoership are offered for your unique design and some our current models
Protection of your sales area, ideas of design and all your private information
Deliver by aircargo or courier for your orders.
|
Pixel Information |
LEDs Wavelength |
Red: 620 nm - 626 nm
Green: 515 nm - 521 nm
Blue: 465 nm - 471 nm |
|
Technical parameters |
ultra-thin |
12mm |
|
|
Input voltage |
AC85~265V |
|
|
Lumens of each LED |
105mA: 32~34lm |
|
|
Dimension |
300x1200x12mm |
|
|
Color Temperature |
5500-7000K |
|
|
LED Q' ty |
220 pcs |
|
|
luminous efficacy |
89~117lm/W; (The actual test data ) |
|
|
Ambient temperature |
-30~70 |
|
|
Color range |
Single color, bi-colour, RGB all are available |
|
|
lightguide materia |
Acrylic lightguide board (guide light from four edges) |
|
|
Long lifetime |
More than 50.000hrs |
|
|
Max power |
70W |
|
|
Beam angle |
120 degree |
|
|
Certificate |
CE, FCC, RoHS & ETL approved |
|
|
Warranty |
3 year quality warranty |
|
Dimension |
Other size |
300X300x12mm
300X600x12mm
595X595x12mm
600X600x12mm
300X1200x12mm
600x1200x12mm |
|
Disadvantage |
Adpot own-designed LED driver with high power factor |
|
|
Efficient heat sink system, to ensure the lighting long lifespan. |
|
|
High Efficiency, low heat, energy saving |
|
|
Environment friendly, waterproof, UV resistant. |
|
|
Safety Level: Low heat dissipation, solid state, high shock or vibration resistant,
no UV or IR radiation. |
|
packaging security |
GL' s LED panel light series, due to the LED light panel itself is fragile products,
so we must have all-sided consideration in the packaging safety aspects and
withstand natural drop test. Specially 600x1200mm LED panel light has larger product area, we use safe material inner box wrapped, and put it into
thick paper outer cartons. To make led panel light' s transit safer, we adopt add
fixed plank in the box. |
General Lighting Electronic Co., Ltd, founded in 2008, is a comprehensive and high-tech enterprise for LED lighting. With three subsidiaries, GL headquarters lies in China South City Global building of Shenzhen, and has two big plants in Shenzhen and Dong guan city, totally 800 employees and 20, 000 plant area.
As a lead enterprise, be professional in the R& D, manufacturing and lighting control solution for LED lighting products, GL does its best to serve the advanced-tech and excellent quality LED lighting products to its valued clients all round the world. GL has developed the commercial lighting, civilian lighting and intelligent residential lighting control system so far, which includes 8 items, 20 series and more than one hundred of products to meet many different clients' requirements. With the fast development, GL pays much attention to technology creation, obtains more than 20 technical patents, and has applied to be the National High-tech Enterprise and Shenzhen High-tech Enterprise. GL lighting products has got GS, TUV, UL, ETL certificates and also successfully get through the ISO9001 Quality Management System, BSCI Factory Inspection Audit.
Today, in the competitive market, GL cooperates with the well-known companies at home and abroad to explore the markets. Since GL's establishment, its sales figures rise up with 100% each year.
Be professional; To be dedicated; By Innovation; Try to insist.
In the near future, GL will be an excellent pioneer to explore and create the new LED lighting market for the transformation from " Made in China" to "China Creation".
