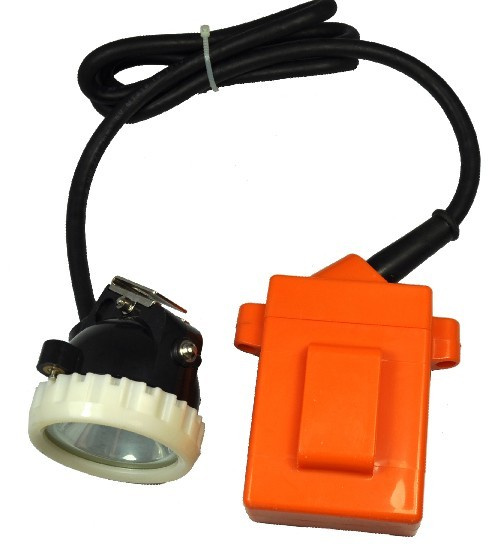

KOMBA KJ5LM LED miner's cap lamp, miners safety lamp, miners lamps, LED cap lamp Technical
description:
1. Battery (Nickel hydrogen)
Battery adpot high performance high-capacity enviromental battery, Part of battery has temperature device and over-current protection device, top battery has short-circuit protection device. When miners lamp occured a short-circuit, it can cut off the power source within one millisecond 1ms and After the fault remove, the short-circuit device auto resume to normal working state. Therefor it is very safe for miners. The cable has stretch-proof, fire resistance function. The battery has IP54 waterproof class.
2. LED: It adpot 1W high-power LED, The life is more than 50000 hours. Illumiance is more than4500 lux/80lm, it adpot two sets of light source, one is main with six auxiliary light source or main-axiliary in one, when main light source lose function, pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency).
3. Charger: Nickel hydrogen
The charger is developed specialized for nickel hydrogen battery, it adpot intelligent one core controller, it is improved lifetime and safety for battery. The charger light displays yellow when it gets electricity, it displays red when it is charging, it displays green when it is over-charging. If battery is over-discharging, it will use small battery to repair charging, then it is going into normal charging.
Technical Parameter:
| No | Item | Unit | Data |
| 1 | Rated capacity | Ah | 5 |
| 2 | Nominal voltage | V | 3.6 |
| 3 | Lighting time | h | ≥ 20 |
| 4 | LEDlight source | Rated voltage | V | 6 |
| Main light source/power | mA | 220 |
| Auxiliary light source | mA | 120 |
| 5 | Max illuminance at 1m | Begin lighting(1meter) | Lx | 5000 |
| Lighting 11h | Lx | 4000 |
| 6 | Weight |
| g | 490 |
| 7 | Nos of battery cycle |
| times | ≥ 800 |
| 8 | Carton packing |
| roll/CNT | 20 |
| 9 | Packing size |
| cm | 36*36*44 |
Wenzhou Boshi Electric Technology Co., Ltd is a professional manufacturer specializing in Mining lamp, Mining products, Move lighting fixture, Explosion-proof lamp, Safety equipment, and etc. We have more than 8 years' growing and supplied products all over the world. We are pleased to introduce ourselves as the leading exporter in the industry that has passed ISO9001, ISO14001, TUV (Technischer Uberwachungs Verein) quality management system, CE certificate and China explosion proof certificate EXSI.
Our company has set up a professional technical center engaged in numerous years of research, development of innovated products. We were also the first one in China to adopt USA CREE LED mining lamp. Many of our products keep at the leading position.
We have a professional production team and a great sales team. We treat every customer and every order seriously and kindly. In the process of production, we consistently combine high quality with economical efficiency to make sure every customer get products on time.
We are looking forward to cooperating with you. We sincerely hope that our work will make your business go further!
