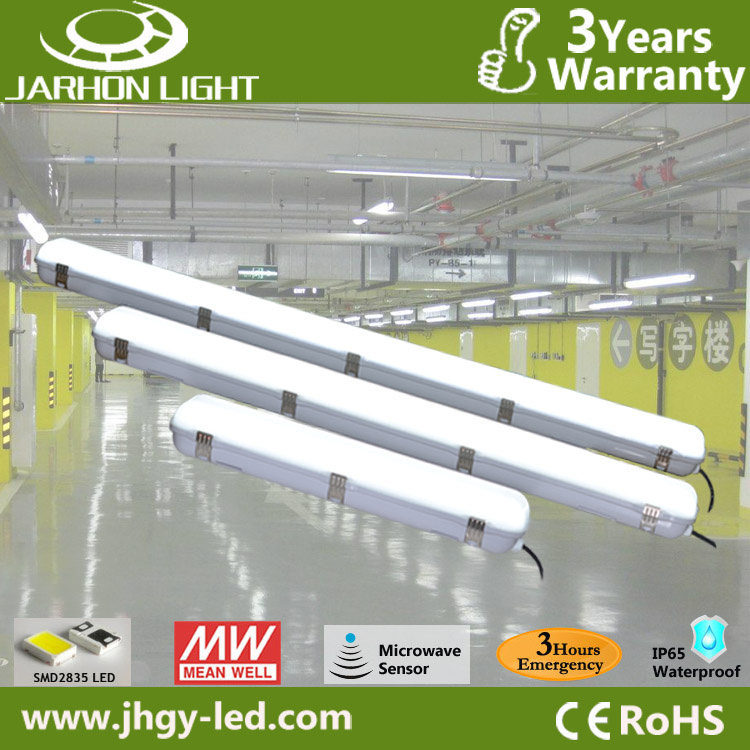

Wholesale Price tennis court lighting CE RoHS 50W tri-proof LED Ceiling Light
Description:
An LED Tri-proof IP65 batten product with LEDs on the aluminum PCB Board. Its appearance and structure is the same as standard twin fluorescent fittings but instead of tubes, there are pretty look arrays of LEDs in the fitting and a isolated driver inside. All the fitting options are as you would expect and familiar to an electrician. A simple, functional, inexpensive way to adopt LED lighting and benefit from energy saving over 70% and maintenance free for years.
Technical Specification:
1. Size: 600mm 1200mm 1500mm available
2. Wattage: 20W 30W 40W 50W 60W optional
3. Functions: Microwave sensor, emergency function is optional.
3. Carton dimension: 71*43*22cm, 131*22*29cm, 161*22*29cm.
4. Color Temperature: WW(3000-3500K), PW(4000-4500K), CW(6000K-6500K) is optional.
4. Material: PC housing +PC cover + metal plate
5. Beam angle: 120degree
6. Luminous efficiency: 85-95LM/W
7. Power factor: >0.95
8. Warranty: 3 years
9. Certification: CE RoHS
Feature:
1: Designed with constant current technology
2: Perfect structure design with aluminum base to disperse heat easily
3: The latest indoor illumination product with comprehensive application
4: Easy to install and low cost of maintenance
5: High lumen, high power, low degradation, low heat
6: We are LED factory and specilized in designing and developing the LED lamps
7: IP65 waterproof + dustproof+ Moisture-proof+anti corrosive+antiex plosion
8: High lumens output, low heat and function is more steadier.
9: Healthy beam, without ultraviolet radiation &infrared, no radicalization
10: Green lighting, without mercuty&Plumbum and other relative hazardous substance
Applications:
Car parks, public buildings, airports, military facilities, food processing facilities, factories, plant rooms, cold storage units and computer server rooms, Places where energy saving and high color rendering index lighting are needed.
Our service:
1. OEM or ODM is available
2. Sample can be delivered in 3days
3. Discounts are offered on order quantities
4. We welcome you to visit our showroom and factory
5. Your inquiry will be replied in 24hrs
Warranty terms:
A), Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/remake new components to replace based on the proof-documents;
B), If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid maintenance within warranty period.
Specifications:
| Model No. | LED Type | LED Qty | LED Current | LED Luminous | In Put | Out Put | Out Current | LED S/P | PF |
| JH-TP2M-20W-S1 | SMD-2835 | 60 | 55-60 MA | 60LM±5% | 100-240VAC | 36-40VDC | 600MA | 10/6 | >0.9 |
| JH-TP4M-40W-S1 | SMD-2835 | 120 | 55-60 MA | 60LM±5% | 100-240VAC | 36-40VDC | 1200MA | 10/12 | >0.9 |
| JH-TP5M-60W-S1 | SMD-2835 | 200 | 55-60 MA | 60LM±5% | 100-240VAC | 36-40VDC | 1800MA | 10/20 | >0.9 |
| LED chipset Brand:TAIWAN chipset | LED Luminous Efficiency:120LM/W ±5% |
| LED chipset Size:22*42 MIL | Lamp Luminous Efficiency:95LM/W ±5% |
| Color Temperature(CCT):3000K-6500K | PCB Material:1.0MM Aluminum PCB |
| Color Rendering Index(CRI):Ra>70 or Ra>85 | IP Rating:IP65 Frequency Range:50/60Hz CE RoHS |
