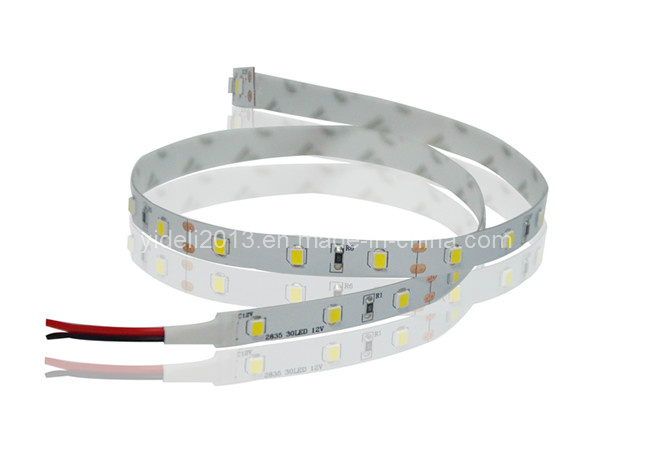

2014 high lumen 2835 smd led strip light 30led/M SMD 2835 long life time led strip lightBasic:long life time led strip light
1.Easy installation.
2.Environmental product.
3.Using FPC material ,can be bended.
1.Factory direct sale,compatitve price
2.We use gold line and red copper holder for stable quality
3.Customized design is available,OEM and ODM are welcome
4.Delivery the goods to our customer all over the world with speed and precision
Features:
1) Various colors including single color and colors;
2) Can do waterproof
3) 100m/reel for standard length, different length available;
4) Solid-state, high shock / vibration resistant;
5) Viewing angle is 120 degrees and the working voltage is AC220V;
6) Maintenance free, easy installation;
7) Long life 100,000hrs+ (10+ years), whiteLED, 50,000hrs+ .
8)Low price,quantity production,short lead time
9)Operating temperature: -30 to +50 degree Celsius
10)Match the RGB controller and power supplier system
11)Low power consumption
12)Lower heating during operation
13)Continuous length with the quickly connector
14)Reel peaking and strong adhesive back
Packaging & Delivery
Packaging Detail:5M/reel,
Delivery Detail:2-3days after payment
Installation Note:
1. Please note this strip light can not be plugged into the mains directly! ! There are two bare wire at the end of each led strip. For home or garden use, you need a power Adapter/ Transformer to convert AC 240V to DC 12v or 24V DC
2. The voltage of car is 12v DC. So you can install it directly, no need for an additional adapter.
3. When you use it in aquarium, please note that the bare power cord can not be soaked in water.
4. LED strip has positive and negative, and if it does not shine, then change the the direction in electrode.
5. The LED strips do not require any resistors. They are ready to work on any 12 volt power source.
6. Please note that these led strip lights can be used for aquariums/fish tank and also for cars. And the outside package is for protection only during the delivery.
Applications:
Architectural decorative lighting
Accent lighting
Border/contour lighting
Mergency&security lighting
Auditorium walkway lighting
Stairway accent lighting
Concealed lighting
Backlighting for signage letters
Channel letter lighting
Cove lighting
Controller:
Type: 44Key Remote Controller
Connection mode: Common Anode(+)
Input/Output: 12V/24V/110V/220V
Max load current: 2A each color
Output: Three CMOS drain-open output
Working Temperature: -20° C-60° C
Mode & Pattern:
Color: 20 Colors
8 Light Pattern: Quick / Slow / Auto / Flash / 7 color fade change / 3 color fade change / 7 color jumpy change / 3 color jumpy change R / G / B increase and decrease control
6 DIY keys Please refer to English manual to get detailed operation
44 keys infrared controller which has 6 keys(DIY keys) for momories the colors what you preferred.
Technical data:
|
Item No |
2835 SMD led strip |
|
Voltage |
12VDC / 24VDC |
|
LED Type |
2835 |
|
Color available |
W/WW/CW/R/G/B/Y/RGB |
|
Single led lumen |
10-12LM/15-17LM/17-19LM/19-23LM |
|
LED Qty per meter |
30pcs/48pcs/60pcs |
|
Power per meter |
7.2W/11.6W/14.4W |
|
CRI |
>70 |
|
Viewing angle |
120deg |
|
IP rank |
IP33/IP65/IP68 |
|
Packaging |
1m/2m/3m/5m/roll |
