Feature:
1. New Quad-color LED technology
2. 18 x 4IN1 RGBW LED multichip
3. Superior color mixing
4. No multi-color shadows
5. Extremely bright beam
6. 25°beam angle
7. Aluminium housing

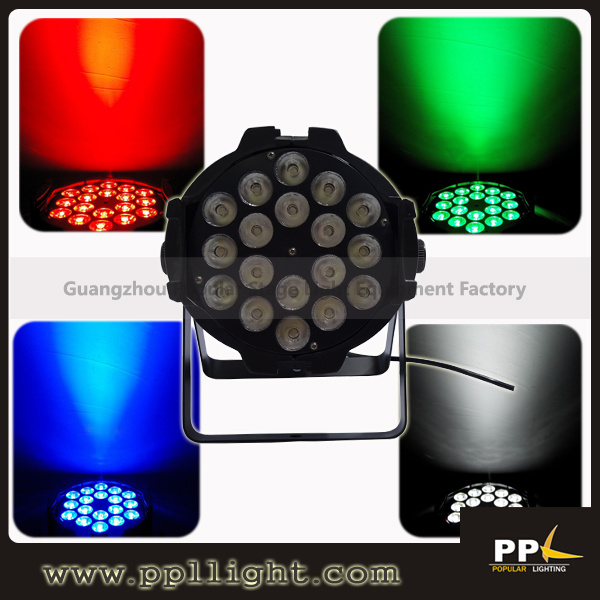

18PCS *10W 4-in-1 LED Classic Multi PAR Light Indoor
Technology Parameter:
Voltage: AC90V-245V, 50-60Hz
Power: 180W
Lamp: 18*10W Quad-in-1
Beam angle: 25° As fittd, 15° , 35° , 45° , 60° Optional
Life time: >5000 thousand hours
Dimmer: 0-100%
Control: DMX512, Master-slave, stand-alone, music Activated
Channel: 8 CH
Display Board: Digital or LCD display
Housing Material and Color: Aluminum; Black
Maximum Ambient Temperature: 45 ° C
Used in professional stage/studio/theatre/dyeling/effects
Packing size: 260x260x370 mm
N/G W.: 3.8/4.8KG
DMX Channel:
| DMX 8H Mode Channel |
| Channel | number | Function Description |
| CH 1 | 0-255 | General Dimmer |
| CH 2 | 0-255 | Strobe from slow to fast |
| CH 3 | 0-50 | CH 1-CH6 on |
| 51-100 | Color choosing process |
| 101-150 | Gradual change process |
| 151-200 | Pulse change process |
| 201-250 | Change process |
| 251-255 | Sound-activation |
| CH 4 | 0-255 | Speed from slow to fast |
| CH 5 | 0 | Red off |
| 1-255 | Dimmer ,from dark to light |
| CH 6 | 0 | Green off |
| 1-255 | Dimmer ,from dark to light |
| CH 7 | 0 | Blue off |
| 1-255 | Dimmer ,from dark to light |
| CH 8 | 0 | White off |
| 1-255 | Dimmer ,from dark to light |
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
